Parts Catalog

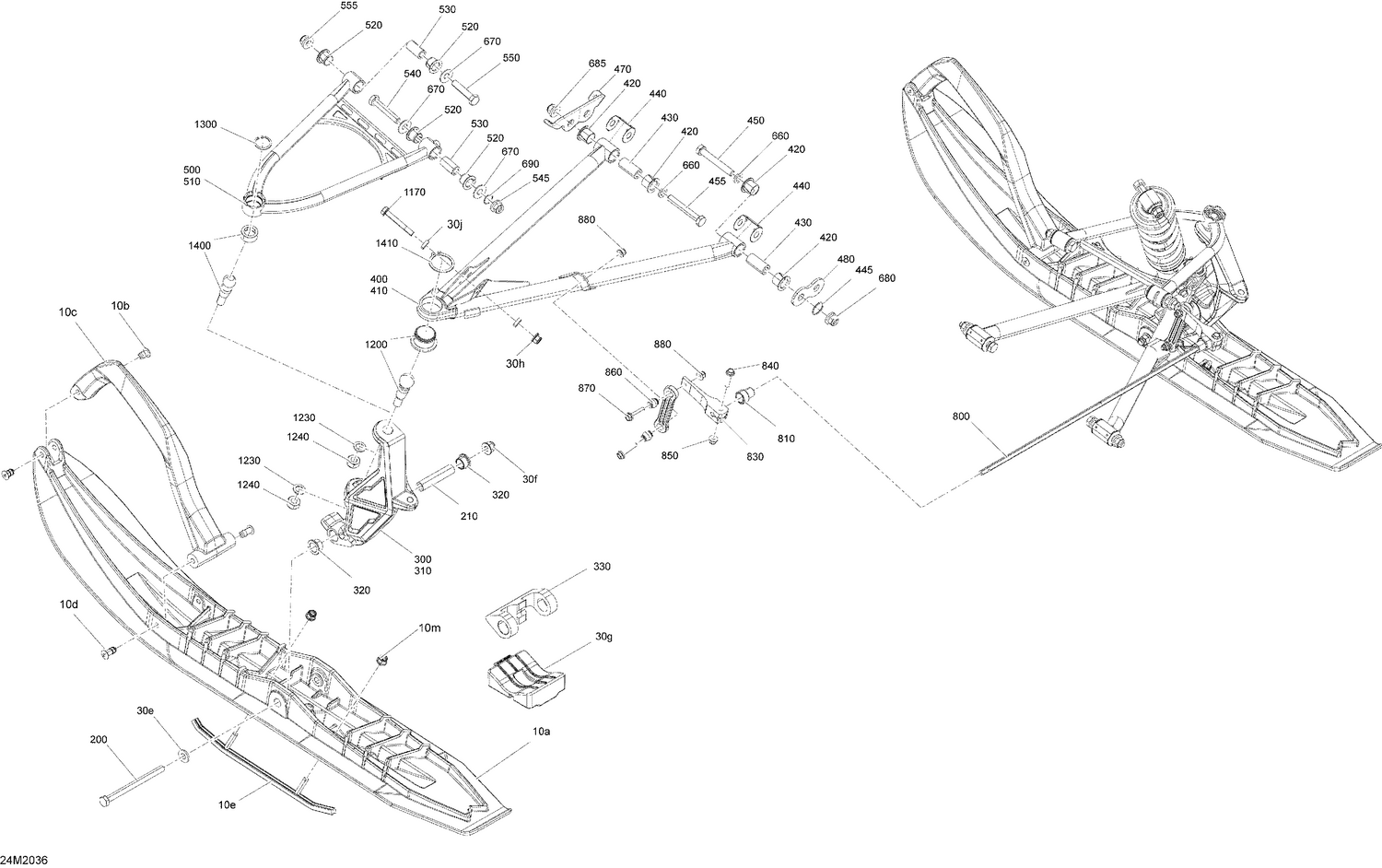

07- Suspension, Front - System - Ski Pilot 5.7 - X

Parts (54)

Ref	Part Number	Description
10a	505072854	Deep Black, LH Pilot 5.7 Ski
10a	505072855	Deep Black, RH Pilot 5.7 Ski
10b	505071812	Retainer 17mm long
10d	505072133	Retainer 23mm Long
10e	860201044	Carbide Runner Kit (Square Runner)
10m	233281414	Hex. Flange Elastic Nut M8
30e	503192496	Washer
30f	233201464	Hex. Flange Elastic M10 x 1.5
30g	505072594	Ski Stopper
30h	233281466	Elastic Flange Nut M8
200	250000703	Hex. Screw M10 X 130
210	505073691	Ski Axle
300	505074476	Can-Am Red, LH Ski Leg
310	505074477	Can-Am Red, RH Ski Leg
320	505072690	Leg Bushing
330	505073779	Leg Stopper
400	505074495	RH Lower Arm This part replaces 505074194.
410	505074494	LH Lower Arm This part replaces 505074193.
420	505072208	Bushing
430	505072209	Sleeve
440	505072634	Wear Plate
445	505072448	O-Ring
450	250001024	Screw Hex. M10 X 70
455	250001024	Screw Hex. M10 X 70
470	505073723	Wear Plate
480	505073844	Plate
500	505073724	LH Upper Arm 42"
510	505073728	RH Upper Arm 42"
520	505072250	Bushing
530	505072143	Sleeve
540	250001023	Screw Hex. M10 X 60
545	250100165	Hex. Flange Elastic Nut M10
550	250001023	Screw Hex. M10 X 60
555	250100165	Hex. Flange Elastic Nut M10
660	503189564	Washer
670	505072392	Washer
680	250100165	Hex. Flange Elastic Nut M10
685	250100165	Hex. Flange Elastic Nut M10
690	505072448	O-Ring
800	505074719	Stabiliser
810	505072064	Bushing
830	505073731	Stabilisator Lever
840	207663056	Hex. Flange Screw M6 X 1.0 X 30
850	233261466	Hex. Flange Elastic Nut M6
860	505072204	Sway Bar Double Joint Link
870	207663056	Hex. Flange Screw M6 X 1.0 X 30
880	233261466	Hex. Flange Elastic Nut M6
1170	250000824	Hex. Flange Screw M8 X 58
1200	505074009	Ball Joint
1230	503192491	Washer
1240	232521464	Hex Elastic Nut M12 X 1.25
1300	293370070	Circlip
1400	505072913	Upper Ball Joint
1410	293370098	Snap Ring
