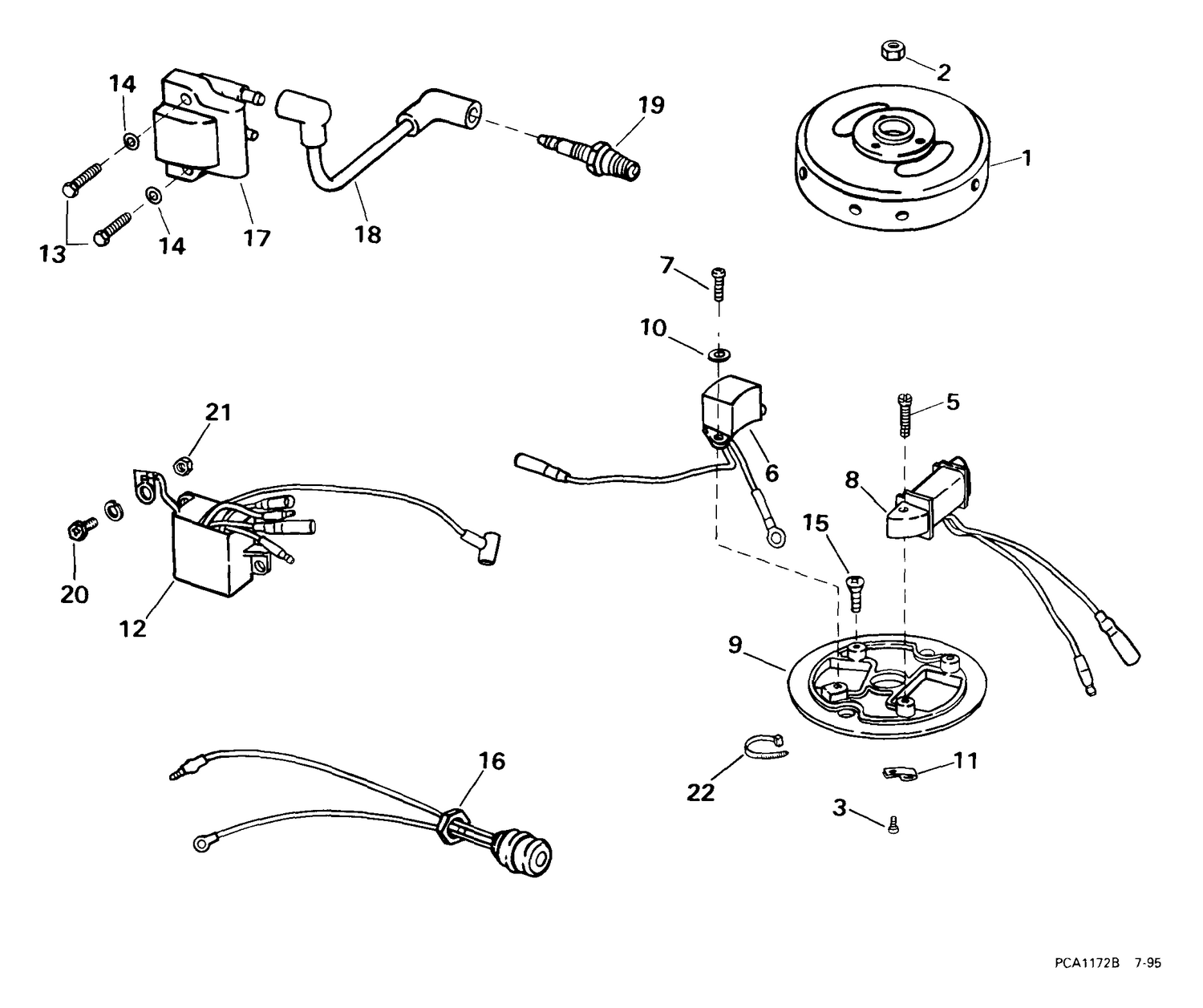

| Ref | Part Number | Description |
|---|
| 1 |
0115718 |
FLYWHEEL |
| 2 |
0115492 |
NUT, Flywheel |
| 5 |
0115751 |
VIS, bobine de charge |
| 6 |
0115685 |
SENSOR, 2R |
| 6 |
0115746 |
SENSOR, 3R |
| 7 |
0446102 |
VIS de montage, capteur |
| 8 |
0115678 |
CHARGE COIL |
| 10 |
0115752 |
RONDELLE, capteur |
| 12 |
0115742 |
POWER PACK |
| 13 |
0115197 |
MOUNTING SCREW, Fuel tank |
| 14 |
0115198 |
SPRING WASHER, Fuel tank screw |
| 15 |
0115493 |
SCREW, Armature plate |
| 16 |
0114796 |
STOP SWITCH & NUT Assy |
| 17 |
0582508 |
COIL ASSY |
| 18 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 19 |
0115206 |
SPARK PLUG, L87YC |
| 19 |
0437686 |
SPARK PLUG, QL87YC |
| 20 |
0115226 |
SCREW, Exhaust to cylinder block |
| 21 |
0115227 |
NUT, Power pack |
| 0115024 |
0115024 |
ARMATURE PLATE ASSY., 2R |
| 0115025 |
0115025 |
ARMATURE PLATE ASSY., 3R |
