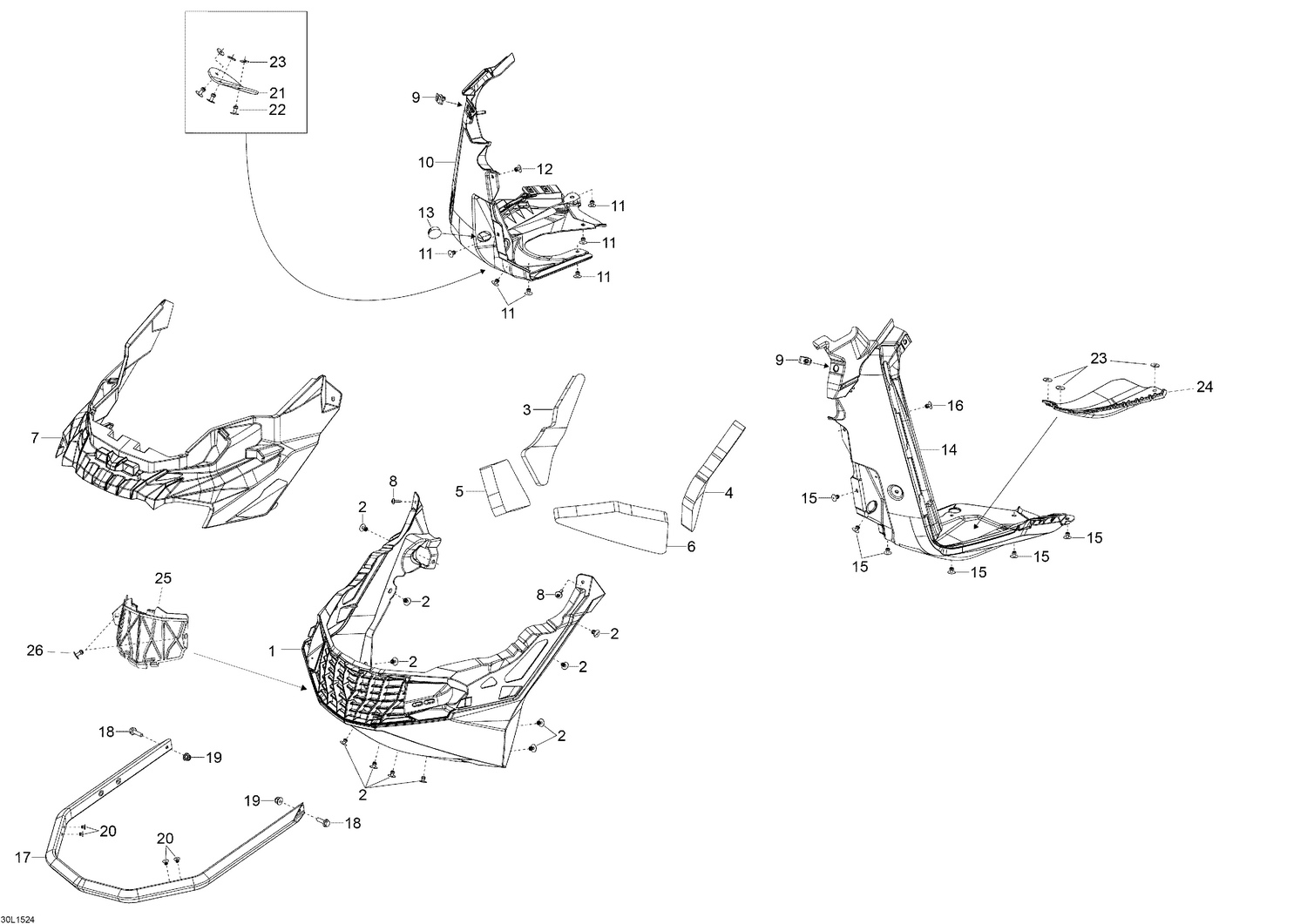

09- Bottom Pan
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502007377 | Bottom Pan |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | NOT | IN USE Foam Upper RH NOT IN USE |
| 4 | NOT | IN USE Foam Upper LH NOT IN USE |
| 5 | NOT | IN USE Foam Lower RH NOT IN USE |
| 6 | NOT | IN USE Foam Lower LH NOT IN USE |
| 7 | 502007284 | Front Cap |
| 8 | 250000528 | Torx Screw M5 X 20 |
| 9 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 10 | 502007375 | Bottom Pan RH |
| 11 | 293150104 | Pop Rivet 3/16 |
| 12 | 293150103 | Pop Rivet 3/16 |
| 13 | 414916600 | Plug |
| 14 | 502007376 | Bottom Pan LH |
| 15 | 293150104 | Pop Rivet 3/16 |
| 16 | 293150103 | Pop Rivet 3/16 |
| 17 | 502007281 | Bumper |
| 18 | 207662044 | Hex. Flange Screw M6 X 20 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 293150104 | Pop Rivet 3/16 |
| 22 | 293150104 | Pop Rivet 3/16 |
| 23 | 517124300 | Washer |
| 24 | 502007261 | GUARD PLATE - Call your local BRP dealership |
| 25 | 517305029 | Pre filter |
