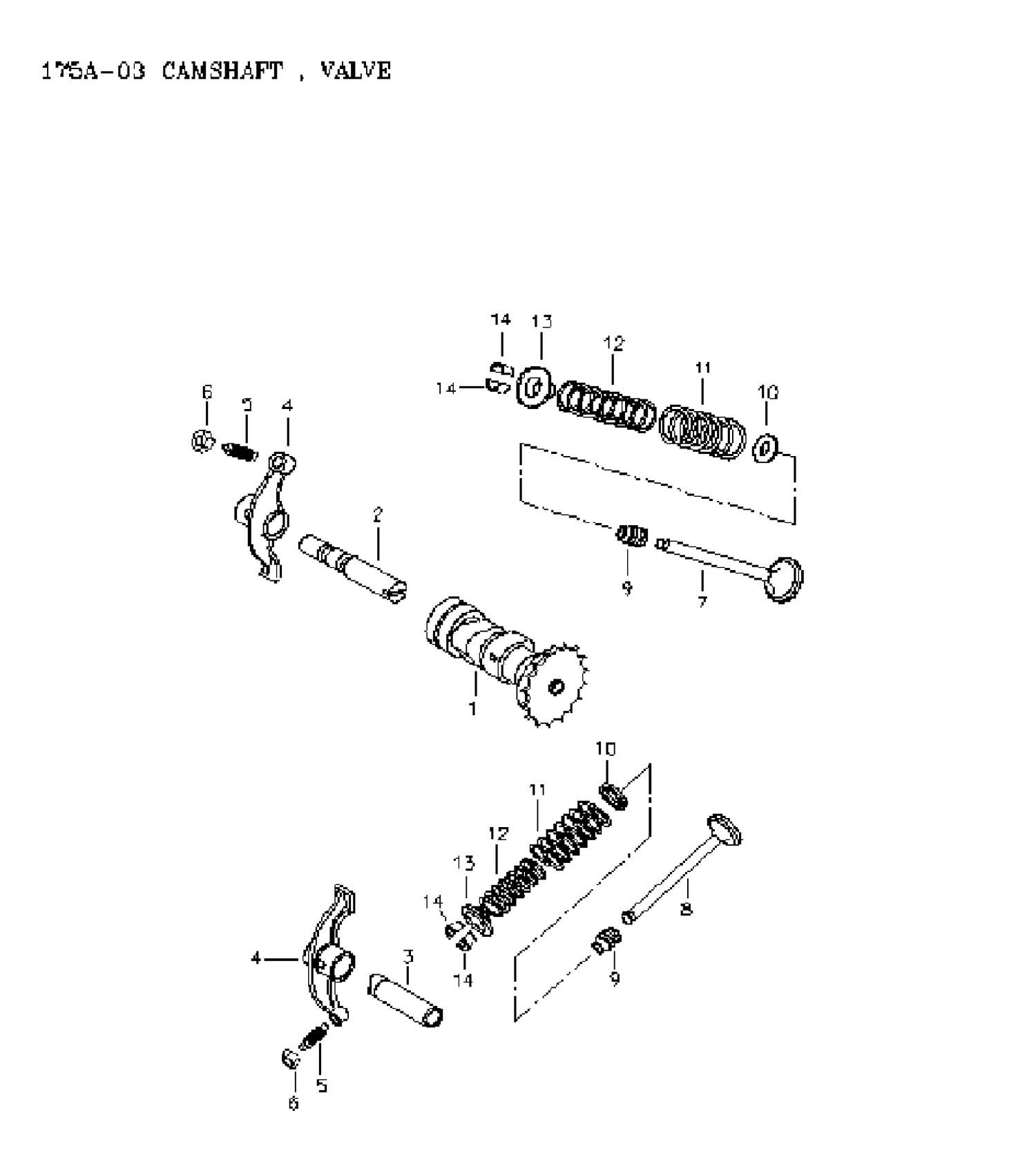

01- Camshaft, Valve
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A14100175000 | CAMSHAFT COMP - Call your local BRP dealership |
| 2 | A14452133000 | Rocker Arm Shaft |
| 3 | A14453133000 | Rocker Arm Shaft Ext. |
| 4 | A14431133000 | VALVE ROCKER ARM - Call your local BRP dealership |
| 5 | A90012120000 | VALVE GAP ADJUSTING SCREW - Call your local BRP dealership |
| 6 | A90206120000 | VALVE GAP ADJUSTING NUT - Call your local BRP dealership |
| 7 | A14711175000 | Valve In. |
| 8 | A14721175000 | Valve Ex. |
| 9 | A12209120000 | VALVE STEM SEAL - Call your local BRP dealership |
| 10 | A14775120000 | VALVE SPRING SEAT - Call your local BRP dealership |
| 11 | A14751133000 | Spring Valve Outer |
| 12 | A14761133000 | Spring Valve In. |
| 13 | A14771120000 | Retainer Valve Spring |
