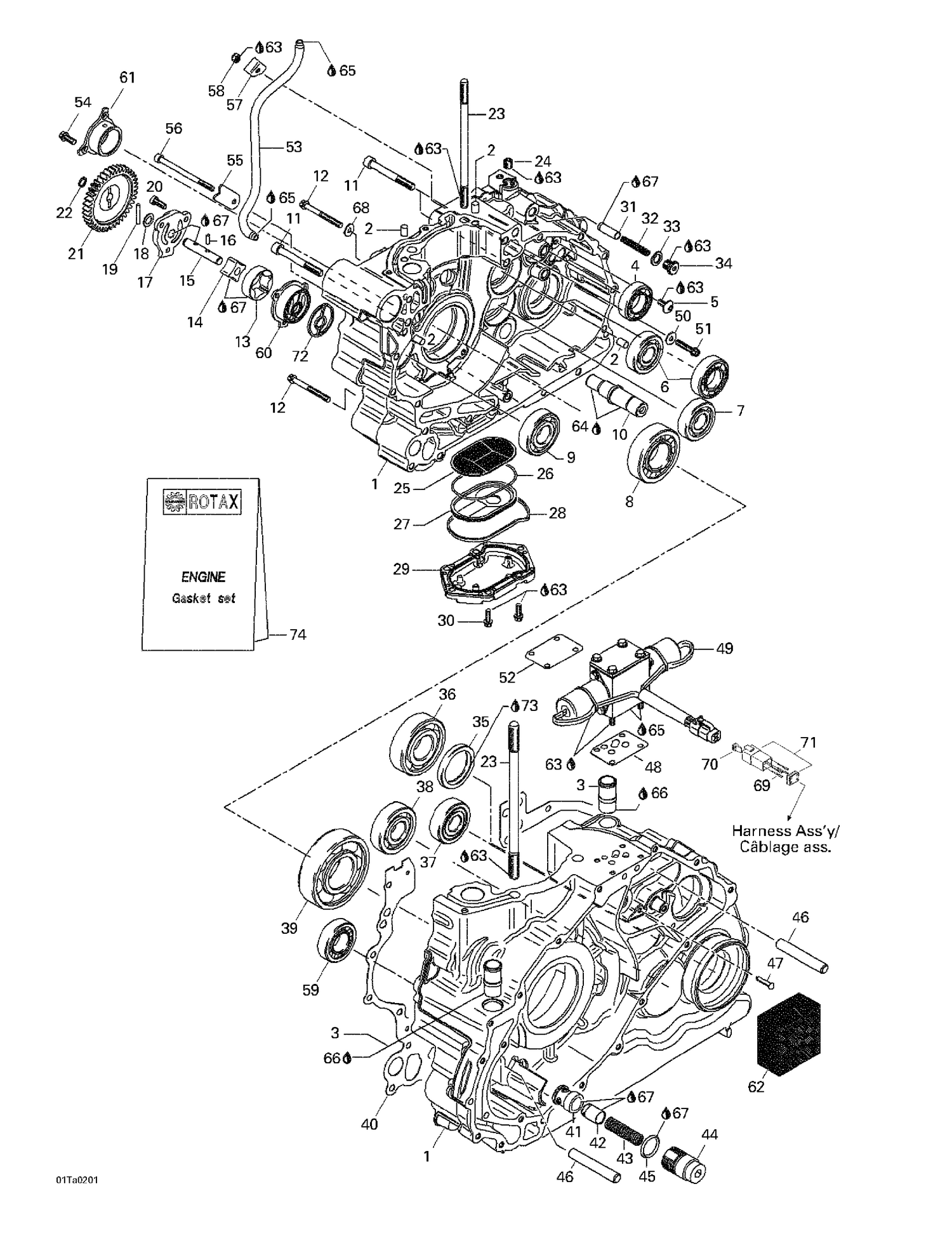

01- Crankcase
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 This part replaces 290632010. |
| 3 | 711224260 | Tube |
| 4 | 420932650 | Bearing_Ball - Call your local BRP dealership |
| 5 | 711241531 | Flat Head Screw M6 x 16 |
| 6 | 420232764 | Ball Bearing 6205 This part replaces 711232764. |
| 7 | 290932095 | Ball Bearing 6304E |
| 8 | 711232490 | Roller Bearing |
| 9 | 711632200 | Ball Bearing |
| 10 | 711220570 | Intermediate Gear Shaft |
| 11 | 420841991 | SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership |
| 12 | 711640351 | Hex. Flange Screw M6 x 65 |
| 14 | Not | Available As Spare Part - Inner Rotor |
| 15 | 711220592 | Oil Pump Shaft |
| 16 | 420232731 | Needle Pin This part replaces 711232730. |
| 17 | 711211852 | Oil Pump Cover |
| 18 | 420827590 | Thrust Washer This part replaces 711827590. |
| 19 | 420232971 | NEEDLE PIN - Call your local BRP dealership This part replaces 420232970. |
| 20 | 420240404 | SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership This part replaces 420240400. |
| 21 | 711635030 | Oil Pump Gear (40 Teeth) |
| 22 | 420245330 | Snap Ring |
| 23 | 711241670 | Stud M10 x 190 |
| 24 | 711840651 | Plug Screw |
| 25 | 711256572 | Oil Sieve |
| 26 | 711931385 | O-Ring |
| 27 | 711256652 | Oil Collector |
| 28 | 711650950 | RUBBER RING - Call your local BRP dealership |
| 29 | 711211941 | Oil Sieve Cover |
| 30 | 711241861 | Hex. Flange Screw M6 x 20 |
| 31 | 711256590 | Piston |
| 32 | 711238020 | Compression Spring |
| 33 | 420250016 | Aluminum Sealing Ring This part replaces 711250015. |
| 34 | 420241701 | Plug Screw M12 x 1,5 This part replaces 711241700. |
| 35 | 711650700 | Oil Seal |
| 36 | 420932822 | Ball Bearing This part replaces 420932825. |
| 37 | 420932816 | Ball Bearing This part replaces 711932815. |
| 38 | 290932095 | Ball Bearing 6304E |
| 39 | 420432120 | BALL BEARING - Call your local BRP dealership This part replaces 711432120. |
| 40 | 711650422 | Crankcase Gasket |
| 41 | 711256602 | Seat Valve Sleeve |
| 42 | 420256638 | Piston Valve This part replaces 711256630. |
| 43 | 711938785 | Compression Spring |
| 44 | 711640790 | Plug Screw M24 |
| 45 | 420250050 | O-Ring This part replaces 711250050. |
| 46 | 420229475 | Needle Pin This part replaces 711229470. |
| 47 | 711229170 | Groove Pin M4 x 20 |
| 48 | 420650630 | SOLENOID VALVE GASKET - Call your local BRP dealership This part replaces 711650630. |
| 49 | 711256540 | Soleno‹d Valve |
| 50 | 420627400 | Washer This part replaces 711627400. |
| 51 | 711241941 | Hex. Flange Screw M6 x 30 |
| 52 | 420650636 | Gasket This part replaces 711650635. |
| 53 | 711224622 | Oil Pipe |
| 54 | 711241751 | Hex. Flange Screw M6 x 16 |
| 55 | 711627437 | Holding Strip |
| 56 | 711241481 | Socket Screw M6 x 90 |
| 57 | 711627432 | Holding Strip |
| 58 | 232561414 | Elastic Stop Nut M6 |
| 59 | 711232280 | Roller Bearing |
| 60 | 711610140 | Ring Housing |
| 61 | 711610130 | Ring Housing |
| 62 | 711256720 | Oil Separating Foam |
| 63 | 293800060 | Loctite 243, 10 ml |
| 66 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 68 | 420230150 | Oil Seal This part replaces 711230150. |
| 69 | 409014800 | MALE TERMINAL - Call your local BRP dealership |
| 70 | 710000046 | MALE LOCK, 4 CIRCUITS - Call your local BRP dealership |
| 71 | 710000045 | MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 72 | 711650960 | Rubber Ring |
| 73 | 293550030 | Grease, Super Lube This part replaces 293550014. |
