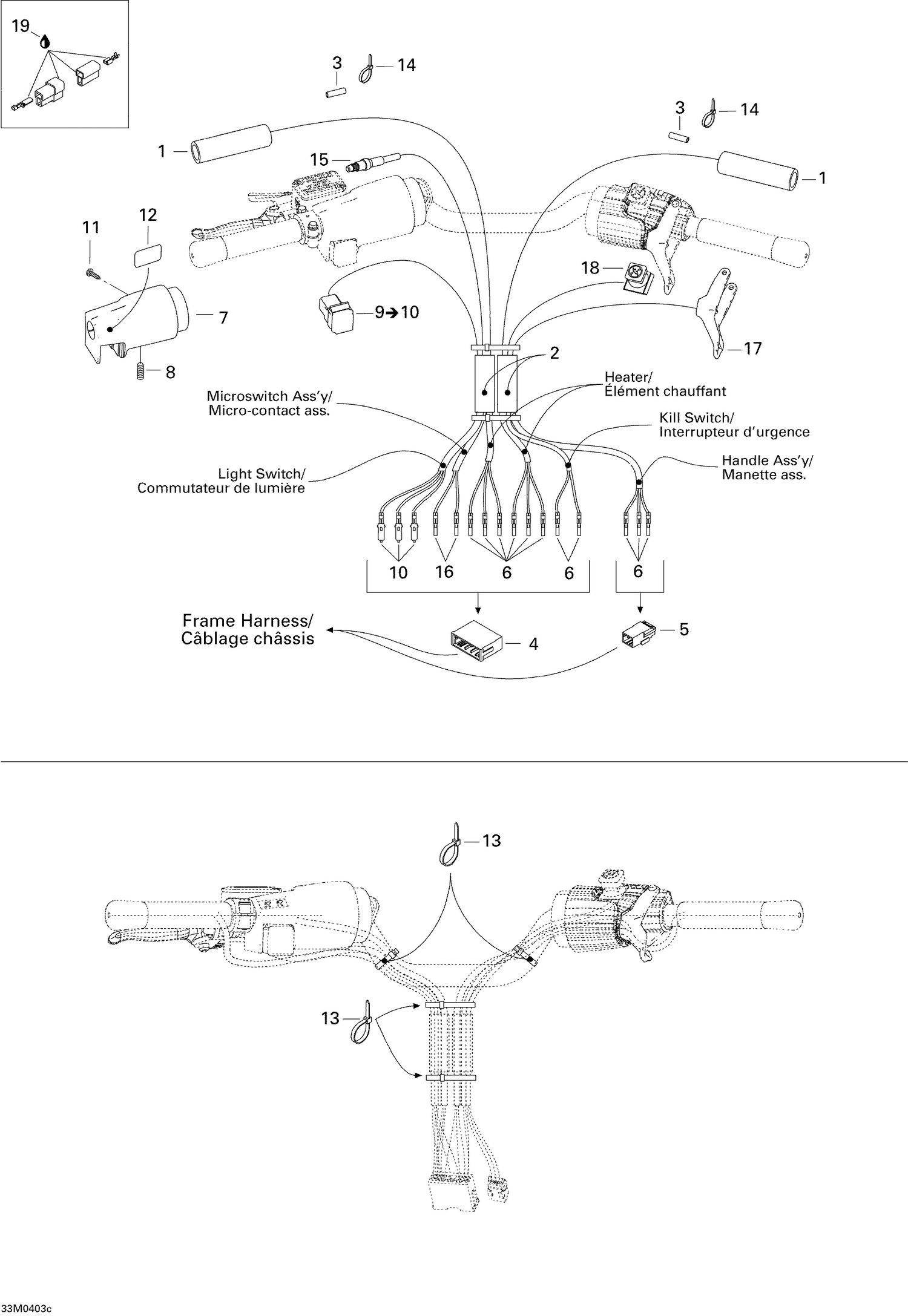

10- Steering Harness SUMMIT 550F
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515175997 | Heater |
| 2 | 515175314 | GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 3 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 4 | 515175352 | MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 5 | 515175494 | Male Housing, 3 Circuits |
| 6 | 515175232 | Male Terminal |
| 7 | 515175696 | BRAKE HOUSING - Call your local BRP dealership |
| 8 | 414440800 | Socket Set Screw M8 X 10 |
| 10 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 11 | 250000022 | SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 12 | 415025500 | Switch Decal |
| 13 | 414115200 | Tie-Rap 180 mm |
| 14 | 293750001 | Tie Wrap 94 mm |
| 15 | 507032366 | Microswitch |
| 16 | 515175232 | Male Terminal |
| 17 | 512060214 | Handle Ass'y This part replaces 512059623. |
| 18 | 515175410 | Kill Switch |
