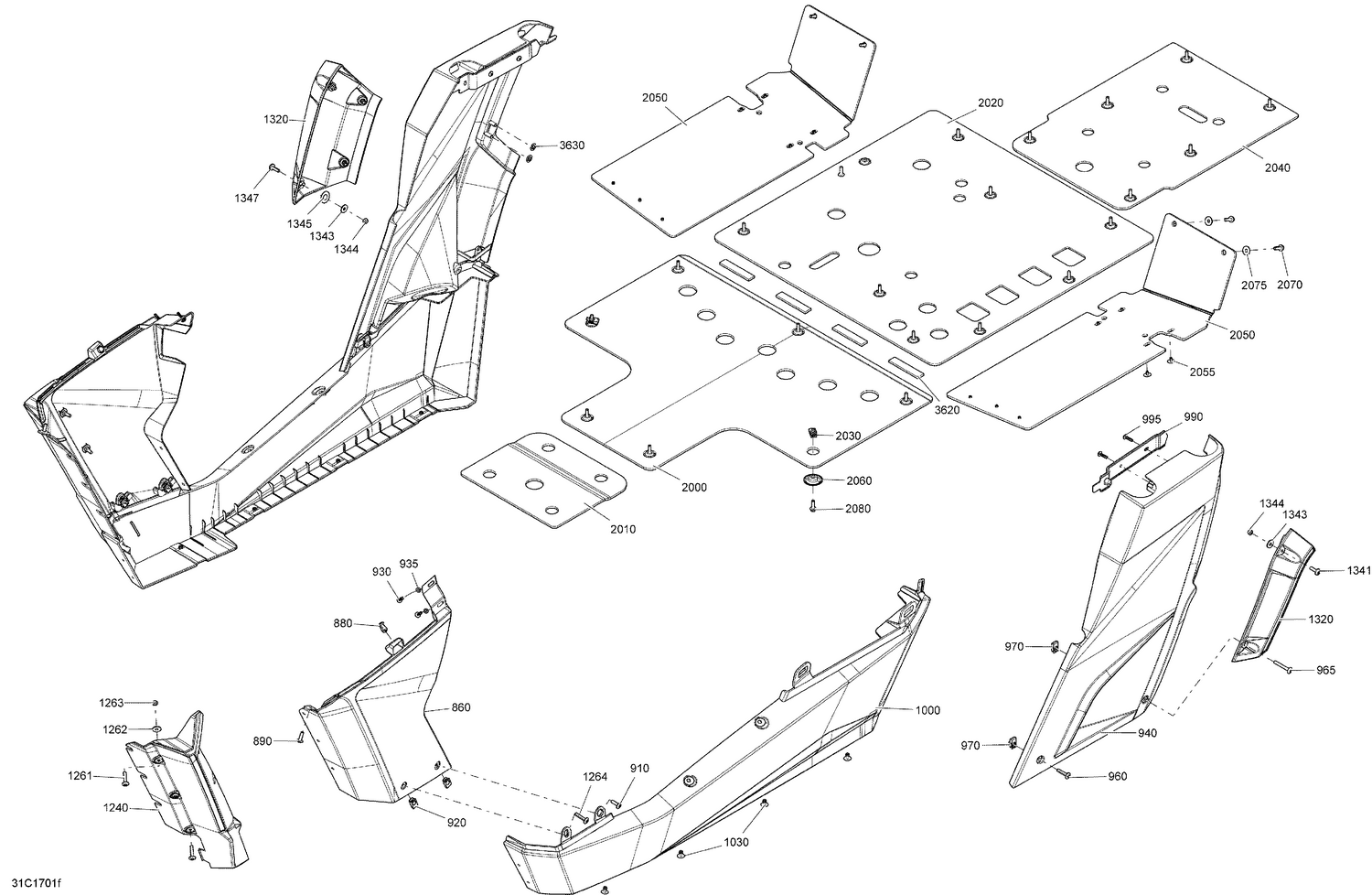

09- Body And Accessories - Central, All Models
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 880 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 890 | 250000722 | Torx Screw M6 X 20 |
| 910 | 250000722 | Torx Screw M6 X 20 |
| 920 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 930 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 935 | 234051410 | Flat Washer M5 |
| 960 | 250000843 | Torx Truss Screw M6 X 30 |
| 965 | 250000748 | Torx Screw M6 X 45 |
| 970 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 990 | 705007916 | Support Skid Plate |
| 995 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1030 | 293150104 | Pop Rivet 3/16" |
| 2060 | 705007171 | Cup |
