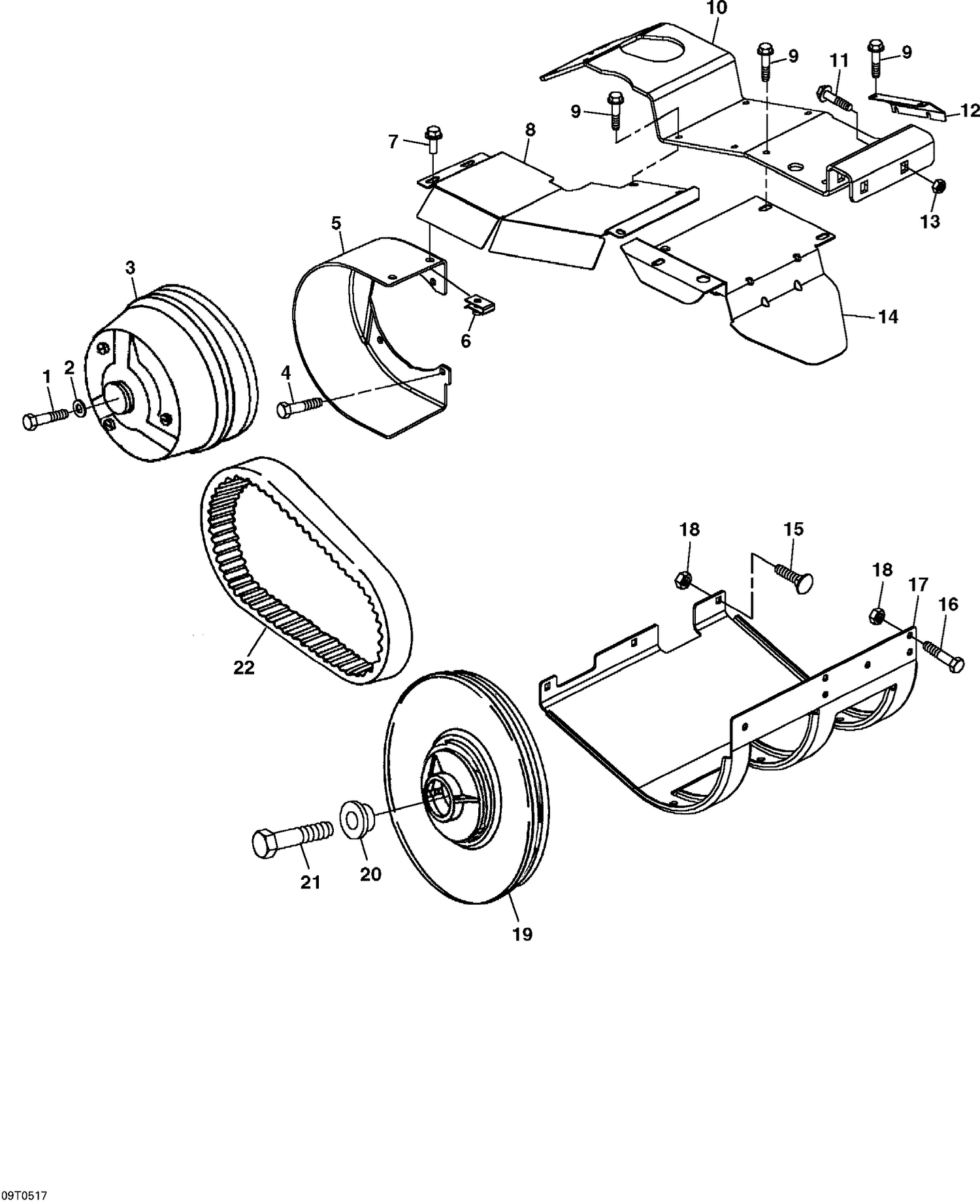

05- Clutch
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | D19M8125 | Hex. Screw M8X140 |
| 2 | DM70570 | Shaft Arm Spacer |
| 3 | DVGA10118 | Drive Clutch |
| 4 | DVG12071 | Hex. Screw M8 |
| 5 | DVG11688 | Clutch Shield |
| 6 | DM84972 | Nut |
| 7 | D19M7775 | Hex. Screw M6X16 |
| 8 | DVG12051 | Clutch Belt Shield |
| 9 | D37M7083 | Hex. Screw M8X12 |
| 10 | DVG12021 | Engine Bracket |
| 11 | D19M7807 | Hex. Screw M10X60 |
| 12 | DVG11687 | Deflector |
| 13 | D14M7400 | Locknut M10 |
| 14 | DVG12050 | Clutch Shield |
| 15 | D03M7184 | Carriage Bolt M8 |
| 16 | D19M7979 | Hex. Screw M8X55 |
| 17 | DM149753 | Shield |
| 18 | D14M7298 | Nut M8 |
| 19 | DVGA10119 | Clutch |
| 20 | DM128562 | Bushing |
| 21 | D19M7810 | Hex. Screw M10X80 |
