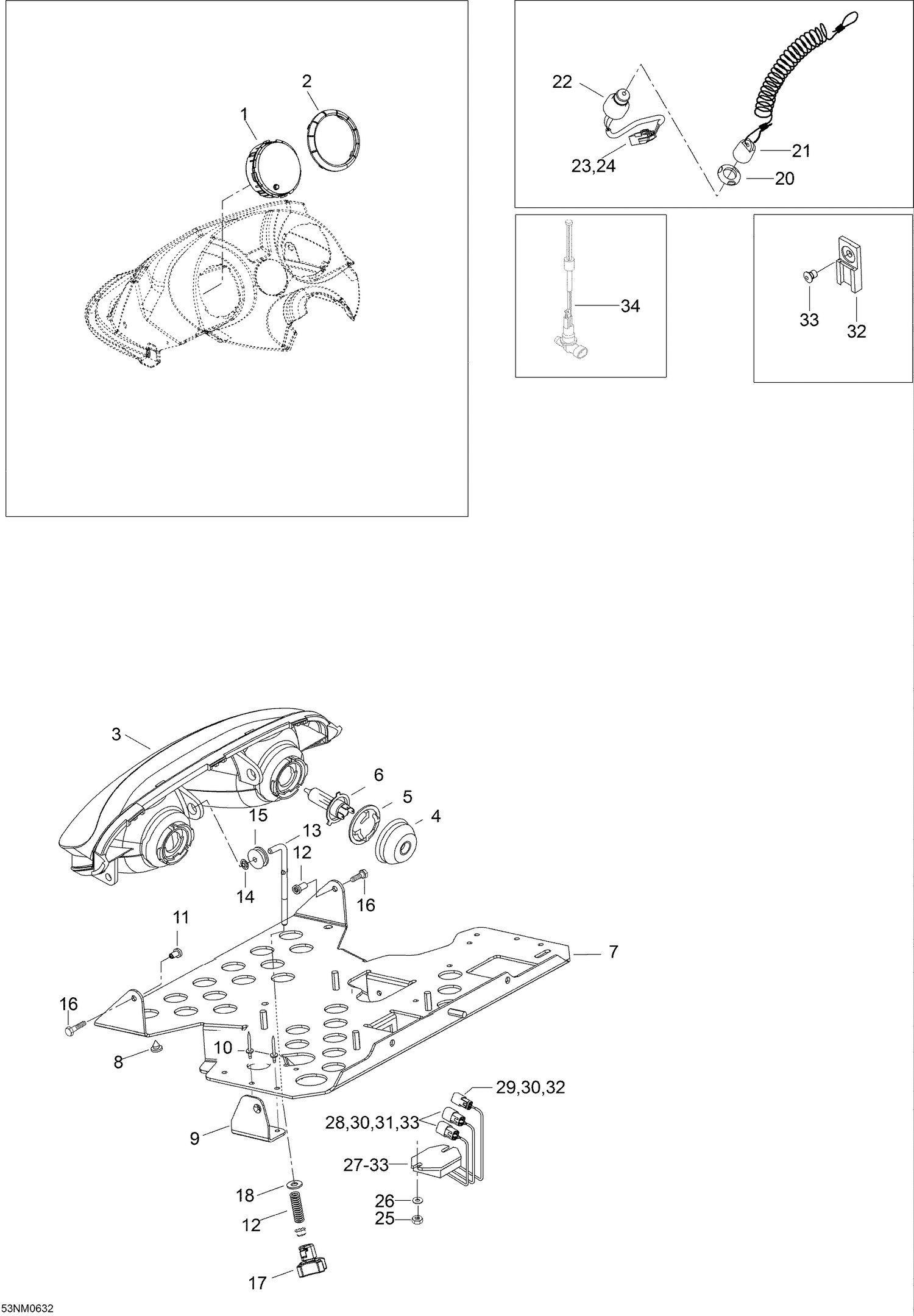

| Ref | Part Number | Description |
|---|
| 1 |
515176301 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 4 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 5 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 6 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 7 |
605253348 |
Stöd, halogenlampa |
| 8 |
605452114 |
Plug |
| 9 |
605453984 |
Strållkastare stöd, vänster |
| 9 |
605453985 |
Konsolin korvallinen, oikea |
| 10 |
36108 |
Rivet steel 4.8x8 ZN bright |
| 11 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 12 |
415100600 |
SPRING - Call your local BRP dealership |
| 13 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 14 |
732610072 |
Push Nut |
| 15 |
415100800 |
Grommet - Call your local BRP dealership |
| 16 |
40231 |
Hex. screw M5 x 30 |
| 17 |
515175975 |
HANDLE - Call your local BRP dealership |
| 18 |
20003 |
Fjäder bricka A6,4 |
| 19 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 20 |
515178284 |
Dess. This part replaces 515166900. |
| 21 |
515177249 |
DESS Switch This part replaces 515175797. |
| 22 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 23 |
42271 |
Male connector housing (6 circuits) |
| 24 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 26 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 26 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 27 |
278001674 |
Male terminal housing (2 circuits) |
| 28 |
515175568 |
Female terminal |
| 29 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 30 |
278001672 |
Female lock (2 circuits) |
| 31 |
293000052 |
Sealing Cap |
| 32 |
270000141 |
Clip This part replaces 515175917. |
| 33 |
36005 |
RIVET 4.8X12 AL BLACK,(1 PAC <=> 50 PC) |
