Parts Catalog

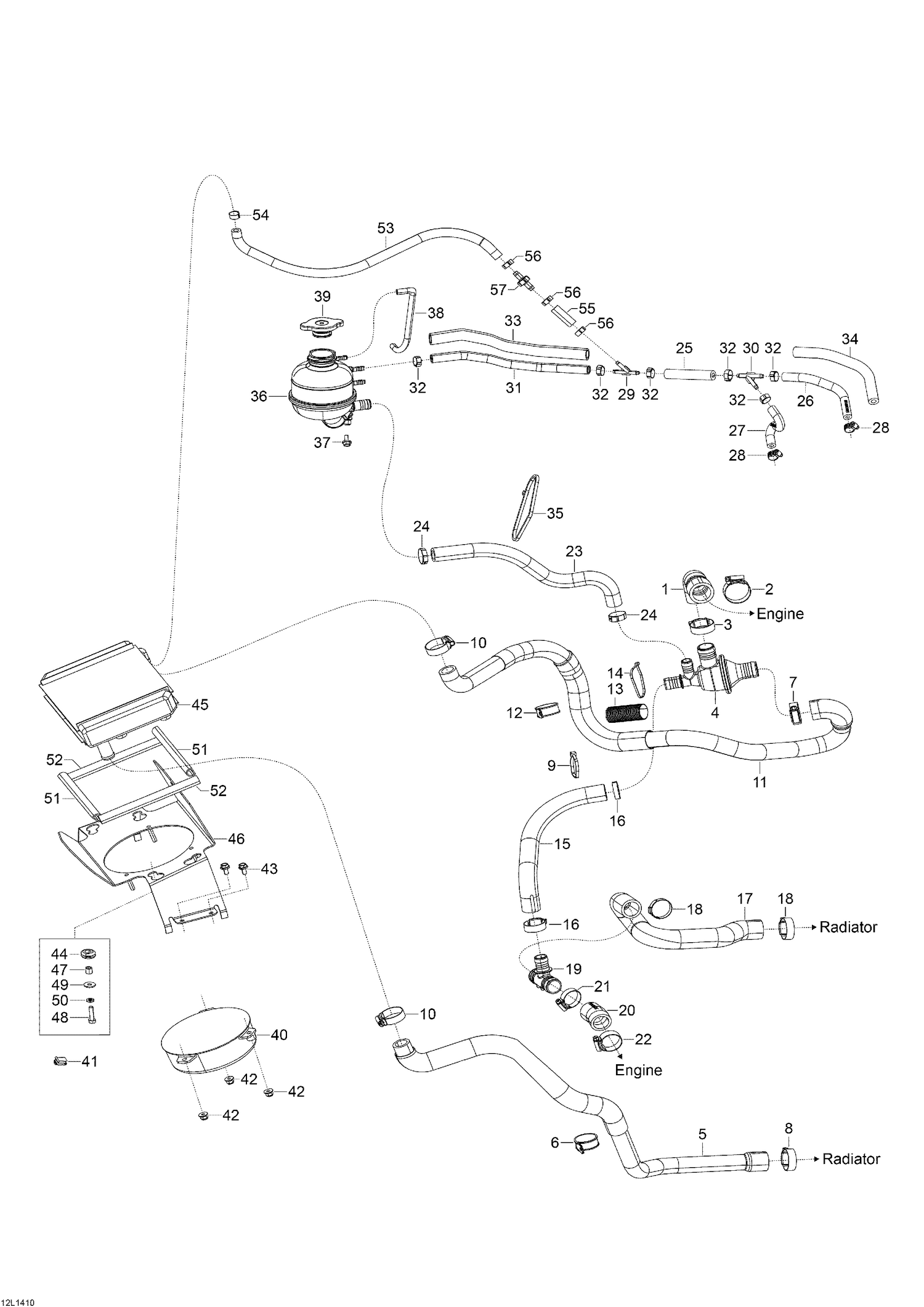

01- Cooling System

Parts (56)

Ref	Part Number	Description
1	509000678	Hose, Engine Outlet
2	509000443	Aba Gear Clamp, 26-38 MM
3	509000529	Crimp Clamp
4	509000499	Thermostat Housing
5	509000760	Hose, Radiator
6	27011	Clamp
7	509000181	Crimp Clamp
8	509000443	Aba Gear Clamp, 26-38 MM
9	414115200	Tie-Rap 180 mm
10	293650099	Crimp Clamp
11	509000761	Hose, Thermostat
12	27011	Clamp
13	28036	Tubing
14	414115200	Tie-Rap 180 mm
15	509000672	Bypass Hose
16	293650099	Crimp Clamp
17	509000589	Hose, Radiator
18	509000443	Aba Gear Clamp, 26-38 MM
19	509000372	T-Fitting
20	509001067	Engine Inlet Hose This part replaces 509000675.
21	509000529	Crimp Clamp
22	509000443	Aba Gear Clamp, 26-38 MM
23	509000676	Filling Hose
24	509000442	Crimp Clamp
25	415129508	Hose
26	509000769	Hose
27	509000768	Hose
28	293650170	Gear Clamp
29	293710059	Y-Connector
30	293710059	Y-Connector
31	415129508	Hose
32	293650046	Oetiker Clamp
33	415080000	Protector Tube
34	513033231	Protector Tube
35	293750008	Tie-Rap 368 mm
36	509000368	Coolant Tank
37	241151640	Hex. Flange Screw K50 x 16
38	415110000	Hose
39	509000180	Radiator Pressure Cap
40	509000837	Cooling Fan
41	710000992	Clip
42	233261414	Hex. Flange Elastic Nut M6 x 1.0
43	207661244	Hex. Flange Screw M6 X 12
44	709000582	Grommet This part replaces 293720053.
45	509000756	Radiator
46	509000746	Radiator Support
47	605453745	Bushing
48	207162044	Hex. Cap Screw M6 x 20
49	234062410	Flat Washer 6 mm
50	20052	Lock Washer M6
51	509000823	D-Seal 12 x 15
52	509000824	D-Seal 12 x 15
53	509000407	Hose
54	293650140	Crimp Clamp
55	509000407	Hose
56	293650140	Crimp Clamp
