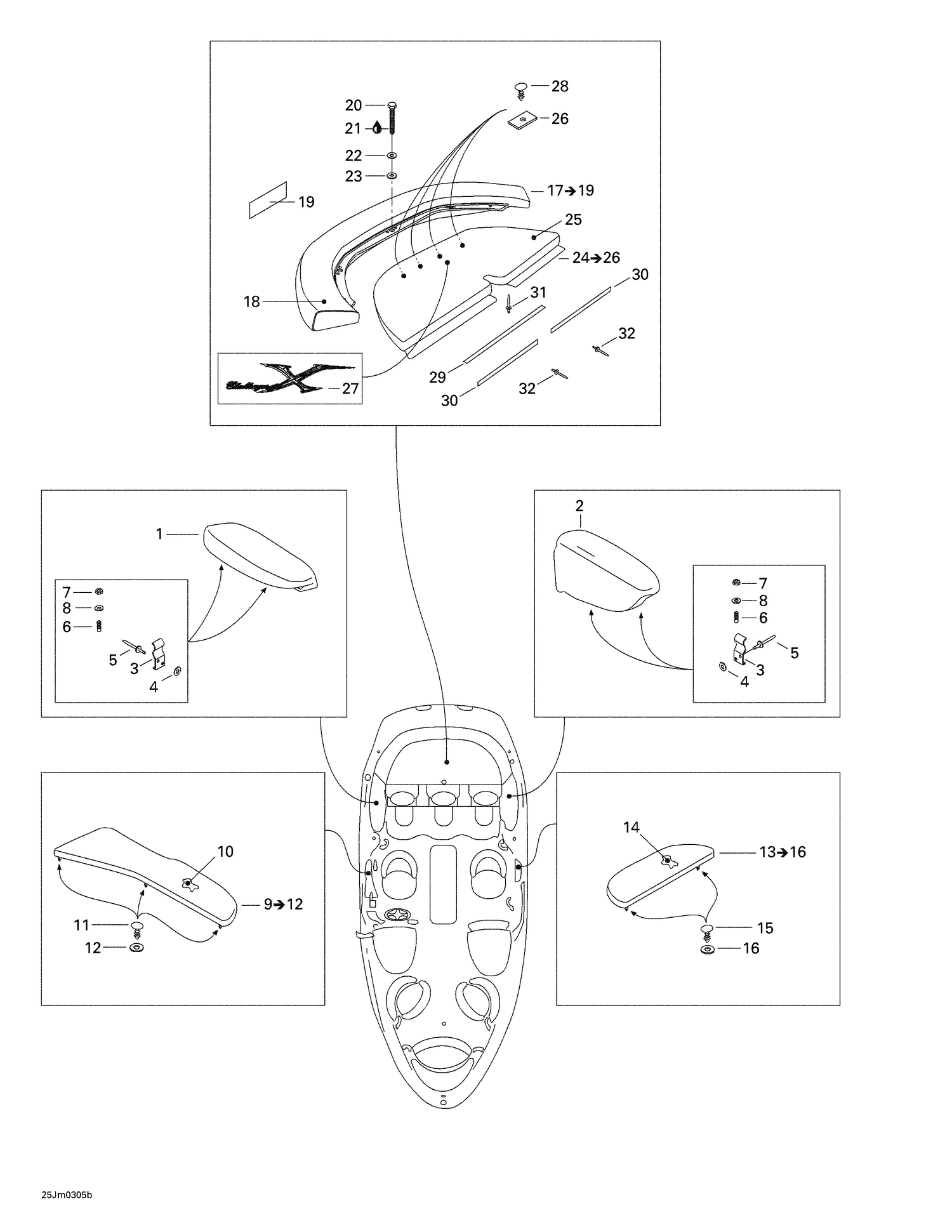

| Ref | Part Number | Description |
|---|
| 1 |
204612246 |
RH Back Armrest Ass’y |
| 2 |
204612248 |
LH Back Armrest Ass’y |
| 3 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 4 |
234061600 |
Stainless Flat Washer M6 |
| 5 |
293150043 |
Pop Rivet 3/16" |
| 6 |
206254069 |
Socket Set Screw M5 X 40, Scotch Grip |
| 7 |
232551600 |
Hex. Elastic Nut M5 |
| 8 |
234052600 |
Flat Washer 5 mm, Stainless |
| 10 |
204610121 |
Neoprene Foam |
| 11 |
293730006 |
Black, Dart |
| 12 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
204610123 |
Neoprene Foam |
| 15 |
293730006 |
Black, Dart |
| 16 |
234062600 |
Flat Washer M6, Stainless |
| 18 |
204612266 |
Spoiler Cover |
| 19 |
204610184 |
Staple Cover, Meter |
| 20 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 21 |
293800060 |
Loctite 243, 10 ml |
| 22 |
234062600 |
Flat Washer M6, Stainless |
| 23 |
234002600 |
Flat Washer 10 mm, Stainless |
| 25 |
204612268 |
Platform Cover |
| 26 |
204610194 |
Strap |
| 27 |
204901283 |
Challenger X Logo |
| 28 |
293730006 |
Black, Dart |
| 29 |
204611298 |
Velcro 25 Mm X 940 Mm |
| 30 |
204611299 |
Velcro 25 Mm X 635 Mm |
| 31 |
204130050 |
POP RIVET 3/16 - Call your local BRP dealership |
