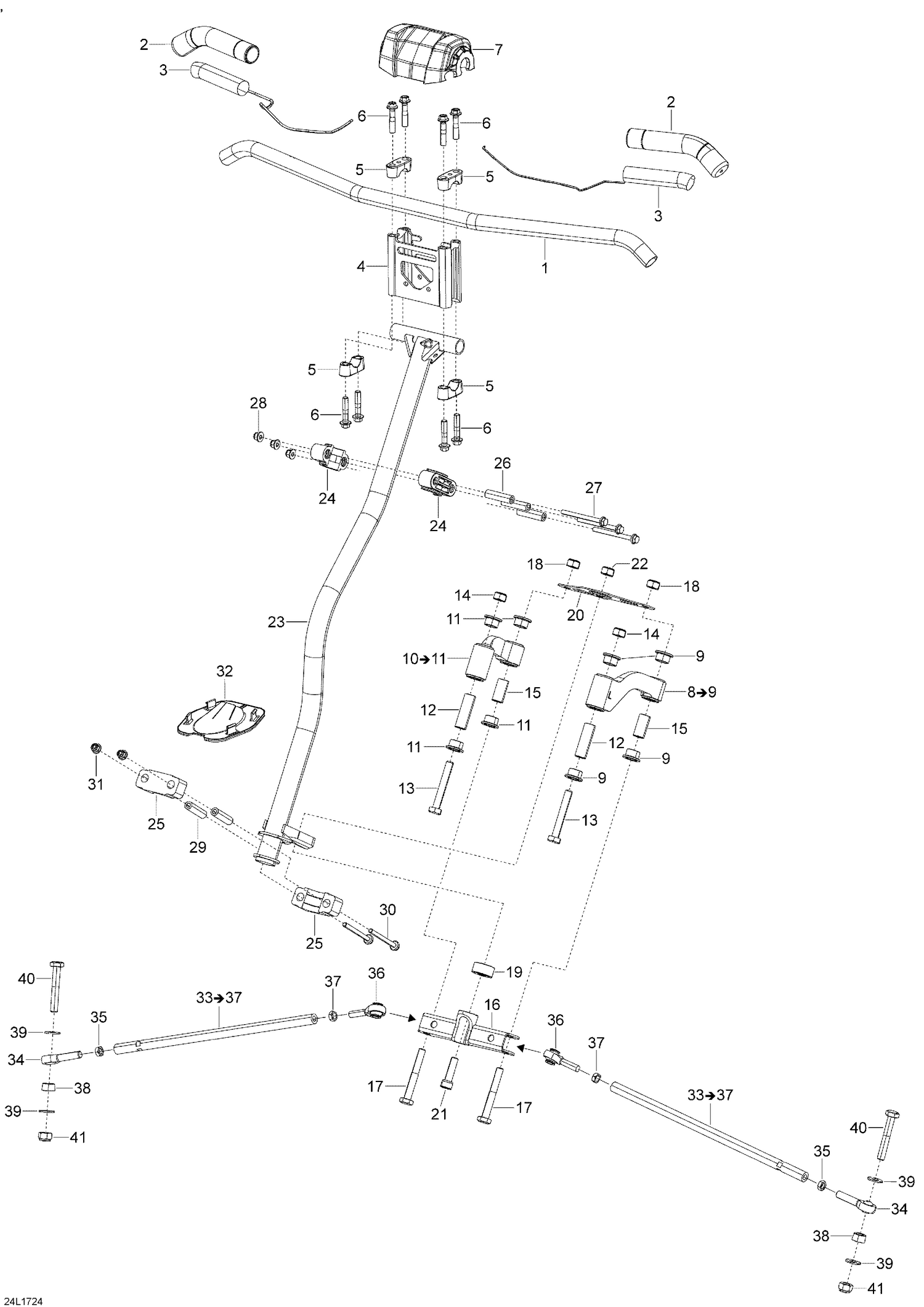

07- Steering System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152712 | FULL MOON HAND BAR - Call your local BRP dealership |
| 2 | 506152483 | Grip |
| 3 | 506152428 | Heated Film |
| 4 | 506151753 | Extension (115mm) |
| 5 | 506152751 | Steering Support |
| 6 | 250000352 | Hex. Flange Screw M8 x 40 |
| 7 | 506152553 | Steering Pad |
| 9 | 505072690 | Leg Bushing |
| 11 | 505072690 | Leg Bushing |
| 12 | 506152691 | SWIVEL PIVOT - Call your local BRP dealership |
| 13 | 207007044 | Hex. Screw M10 x 70 |
| 14 | 232500416 | Elastic Stop Nut M10 |
| 15 | 506152696 | SWIVEL PIVOT - Call your local BRP dealership |
| 16 | 506152693 | WELDED SWIVEL BAR - Call your local BRP dealership |
| 17 | 207108044 | HEX. SCREW M10 X 80 - Call your local BRP dealership |
| 18 | 232500416 | Elastic Stop Nut M10 |
| 19 | 506152714 | BEARING - Call your local BRP dealership |
| 20 | 506152697 | PLATE - Call your local BRP dealership |
| 21 | 205003544 | Socket Screw M10 x 35 |
| 22 | 232500416 | Elastic Stop Nut M10 |
| 23 | 506152965 | TUBE-MAIN PAINT - Call your local BRP dealership |
| 24 | 506152293 | Upper Half-Housing |
| 25 | 506152549 | LOWER HALF-HOUSING - Call your local BRP dealership |
| 26 | 506152297 | Housing Bushing |
| 27 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 28 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 29 | 506152297 | Housing Bushing |
| 30 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 31 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 32 | 506152163 | Plate |
| 34 | 506152081 | LH Ball Joint |
| 35 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 36 | 506152019 | RH Ball Joint |
| 37 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 38 | 506152713 | Washer |
| 39 | 506152582 | Washer |
| 40 | 207006544 | Hex. Screw M10 x 55 |
