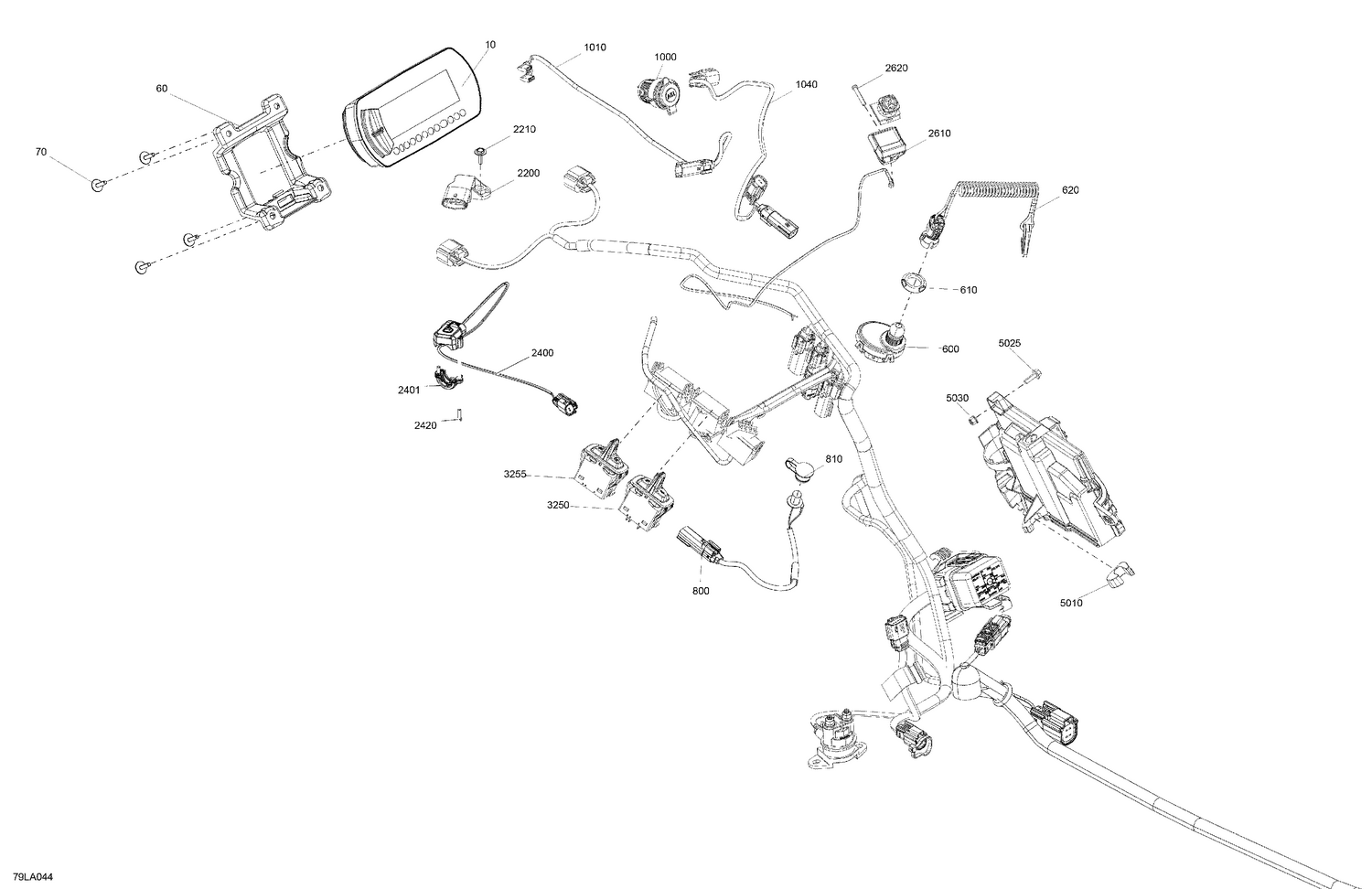

08- Electric - Upper Section
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178226 | Multifunction Gauge Full Size Color |
| 60 | 515178450 | Housing |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2400 | 515178857 | Ignition Switch |
| 2401 | 515177952 | Clamp |
| 2420 | 250000671 | Torx Screw |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 5010 | 515178430 | Rubber Stopper |
| 5025 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 5030 | 233251434 | Flanged Elastic Nut M5 |
