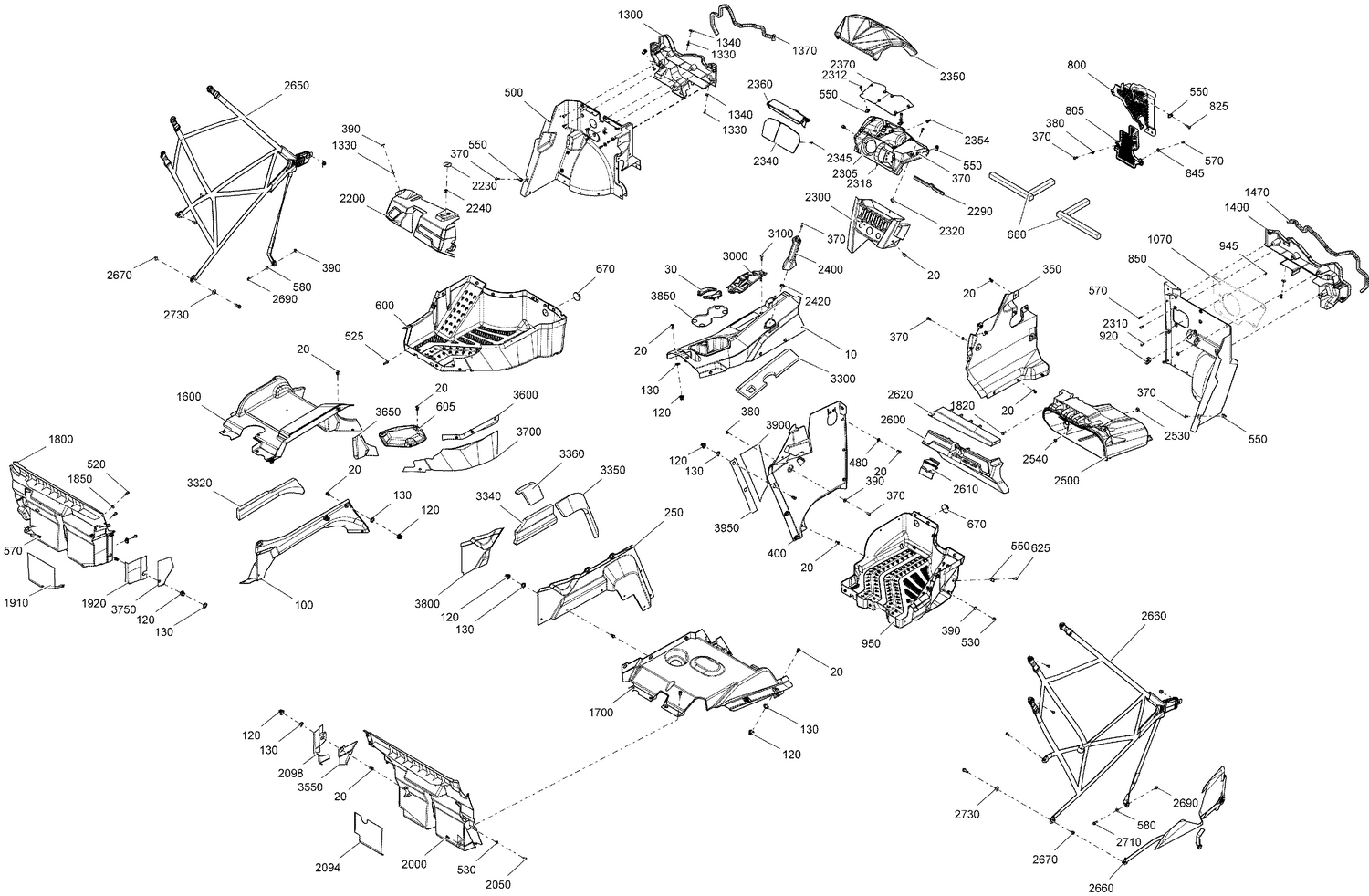

09- Cab Interior Maverick Non MAX - Package XMR
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715003362 | Console Kit |
| 20 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 30 | 707900036 | Cup Retainer |
| 100 | 707900308 | PANEL_CONSOLE LWR L - Call your local BRP dealership |
| 120 | 707900133 | Insert |
| 130 | 503189273 | Washer |
| 250 | 707900002 | RH Side Console |
| 350 | 707900193 | Front Side Dash Panel |
| 370 | 250000722 | Torx Screw M6 X 20 |
| 380 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 390 | 234062670 | Stainless Steel Flat Washer |
| 400 | 707900203 | RH FIXE SIDE CONSOLE - Call your local BRP dealership |
| 480 | 506151252 | Washer |
| 500 | 707900181 | LH Front Floor |
| 520 | 250000712 | Torx Screw M6 X 20 |
| 525 | 250000758 | Torx Screw M6 X 25 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 550 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 570 | 250000720 | Torx Screw K50 X 16 |
| 580 | 234062410 | Flat Washer 6 mm |
| 605 | 707900311 | Floor Cap |
| 625 | 250000807 | Torx Truss Screw M6 X 25 |
| 670 | 293250242 | Rubber Cover |
| 680 | 219704382 | Was 293250381 Seal Tray |
| 800 | 707900178 | Grille |
| 805 | 707900180 | Grille |
| 825 | 250000843 | Torx Truss Screw M6 X 30 |
| 845 | 250200025 | Washer M5 |
| 850 | 707900004 | RH Front Floor |
| 920 | 705003668 | Oblong Grommet |
| 945 | 233251494 | Elastic Flange Nut M5 |
| 950 | 707900023 | RH Lower Floor |
| 1300 | 707900561 | Floor Support LH |
| 1330 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1340 | 224060201 | Flat Washer |
| 1370 | 219704365 | Was 293200017 Neoprene Seal |
| 1400 | 707900563 | RIGHT FLOOR SUPPORT - Call your local BRP dealership |
| 1470 | 219704365 | Was 293200017 Neoprene Seal |
| 1600 | 707900310 | LH UNDER SEAT PLATE - Call your local BRP dealership |
| 1700 | 707900006 | RH Under Seat Plate |
| 1800 | 707900164 | LH Rear Deflector |
| 1820 | 207662034 | Hex. Flange Screw M6 X 20 |
| 1850 | 250200040 | Flat Washer |
| 1910 | 707900182 | Heat Shield |
| 1920 | 707900183 | Heat Shield |
| 2000 | 707900166 | DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership |
| 2050 | 250000755 | Torx Screw M6 X 16 |
| 2094 | 707900167 | Heat Shield |
| 2098 | 707900184 | Heat Shield |
| 2200 | 715001250 | Dashboard Ass'y |
| 2230 | 705003841 | Support Plate |
| 2240 | 517302785 | Edge Clip |
| 2305 | 707900199 | Upper Central Console Ass'y |
| 2310 | 250000762 | Torx Screw M5 X 25 |
| 2320 | 250000958 | Panel Nut M5 X 0.8 |
| 2340 | 707900104 | GPS Cover And Radio Control |
| 2345 | 250000759 | Torx Truss Pt K40 X 16 |
| 2354 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 2355 | 234062670 | Stainless Steel Flat Washer |
| 2356 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2360 | 707900215 | CENTRAL FILTER - Call your local BRP dealership |
| 2370 | 707900216 | DASHBOARD COVER - Call your local BRP dealership |
| 2376 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2400 | 707900011 | Passenger Handle |
| 2420 | 707900048 | Connector Tube |
| 2500 | 707900046 | Storage Bin |
| 2530 | 414859400 | CAP - Call your local BRP dealership |
| 2540 | 293830005 | Rubber Bumper |
| 2600 | 707900221 | LUGGAGE COVER KIT - Call your local BRP dealership |
| 2610 | 707900031 | Latch |
| 2650 | 707900237 | Front LH Safety Net |
| 2660 | 707900238 | Front RH Safety Net |
| 2670 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2690 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2710 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2730 | 234082410 | Flat Washer 8 mm |
| 3000 | 707900070 | Lever Indicator |
| 3100 | 250000728 | Torx Screw M6 X 25 |
| 3300 | 707900619 | Front Central Console Foam |
| 3320 | 707900631 | LEFT UPPER LATERAL CONSOLE FOAM - Call your local BRP dealership |
| 3340 | 707900622 | RH Lateral Console Foam |
| 3350 | 707900623 | RH Lateral Console Foam |
| 3360 | 707900624 | RH Lateral Console Foam |
| 3550 | 707900148 | Heat Sheet |
| 3600 | 707900313 | HEAT SHEET - Call your local BRP dealership |
| 3650 | 707900314 | HEAT SHEET - Call your local BRP dealership |
| 3700 | 707900315 | HEAT SHEET - Call your local BRP dealership |
| 3750 | 707900146 | Heat Sheet |
| 3800 | 707900147 | Heat Sheet |
| 3850 | 707900145 | Heat Sheet |
| 3900 | 707900190 | Heat Sheet |
