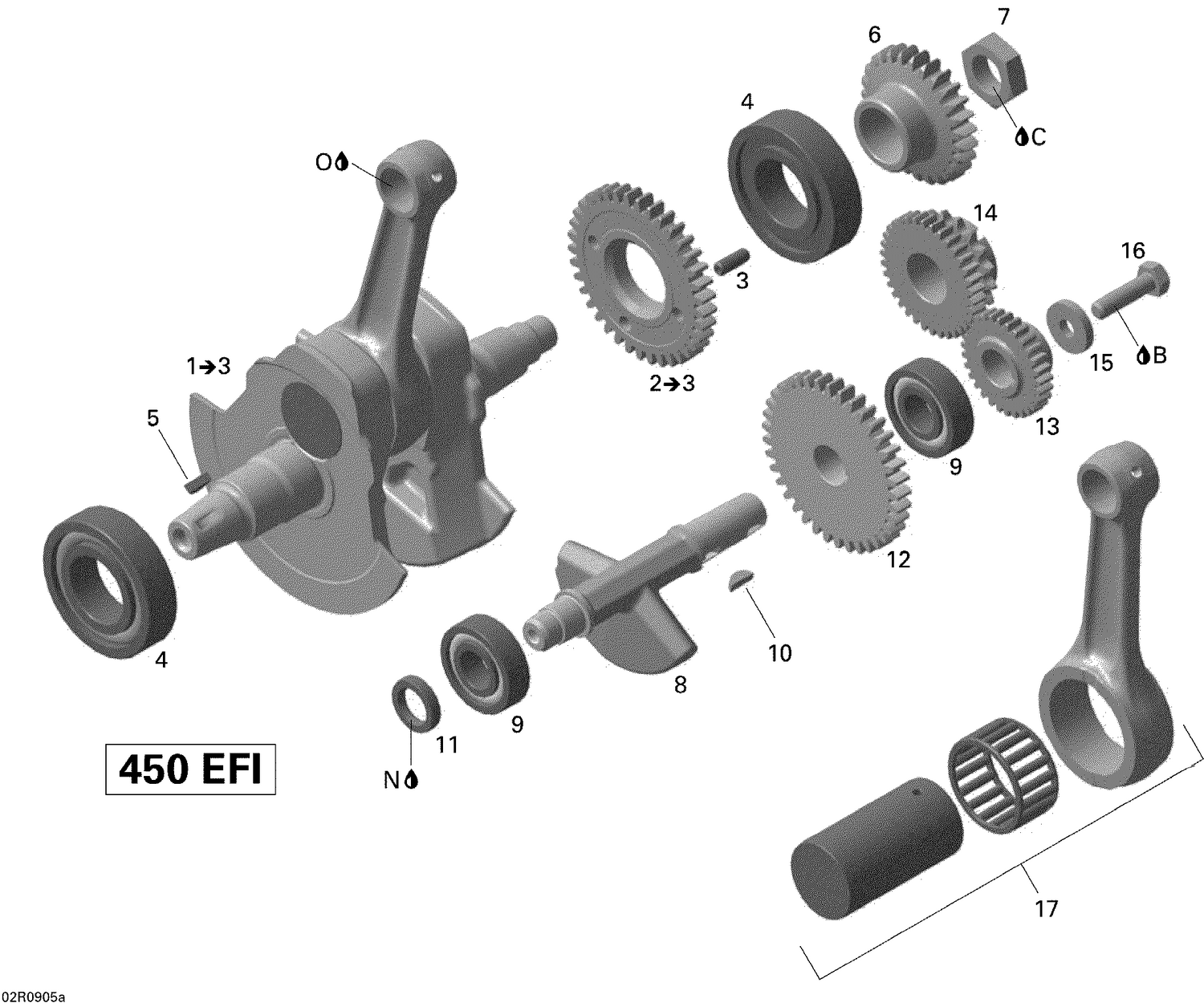

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| C |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| N |
293550030 |
Grease, Super Lube |
| O |
Not |
Available As Spare Part - Engine Oil |
| 3 |
420229490 |
DOWEL PIN 6 X 16 - Call your local BRP dealership |
| 4 |
420832526 |
Balll Bearing |
| 5 |
420246570 |
Woodruff Key 4 X 5 |
| 6 |
420434680 |
DRIVE GEAR, 27 TEETH - Call your local BRP dealership |
| 7 |
420942220 |
HEX. NUT M18 - Call your local BRP dealership |
| 8 |
420620800 |
BALANCE SHAFT - Call your local BRP dealership |
| 9 |
420232855 |
Balll Bearing |
| 10 |
420246570 |
Woodruff Key 4 X 5 |
| 11 |
420250130 |
Oil Seal |
| 12 |
420434690 |
Balance Gear, 37 Teeth |
| 13 |
420434721 |
CONTROL GEAR, 29 TEETH - Call your local BRP dealership |
| 14 |
420434705 |
INTERMEDIATE GEAR - Call your local BRP dealership |
| 15 |
420626460 |
WASHER 23 MM - Call your local BRP dealership |
| 16 |
420940485 |
SCREW M8 X 30 - Call your local BRP dealership |
| 17 |
Not |
Available As Spare Part - Rod Repair Kit |
