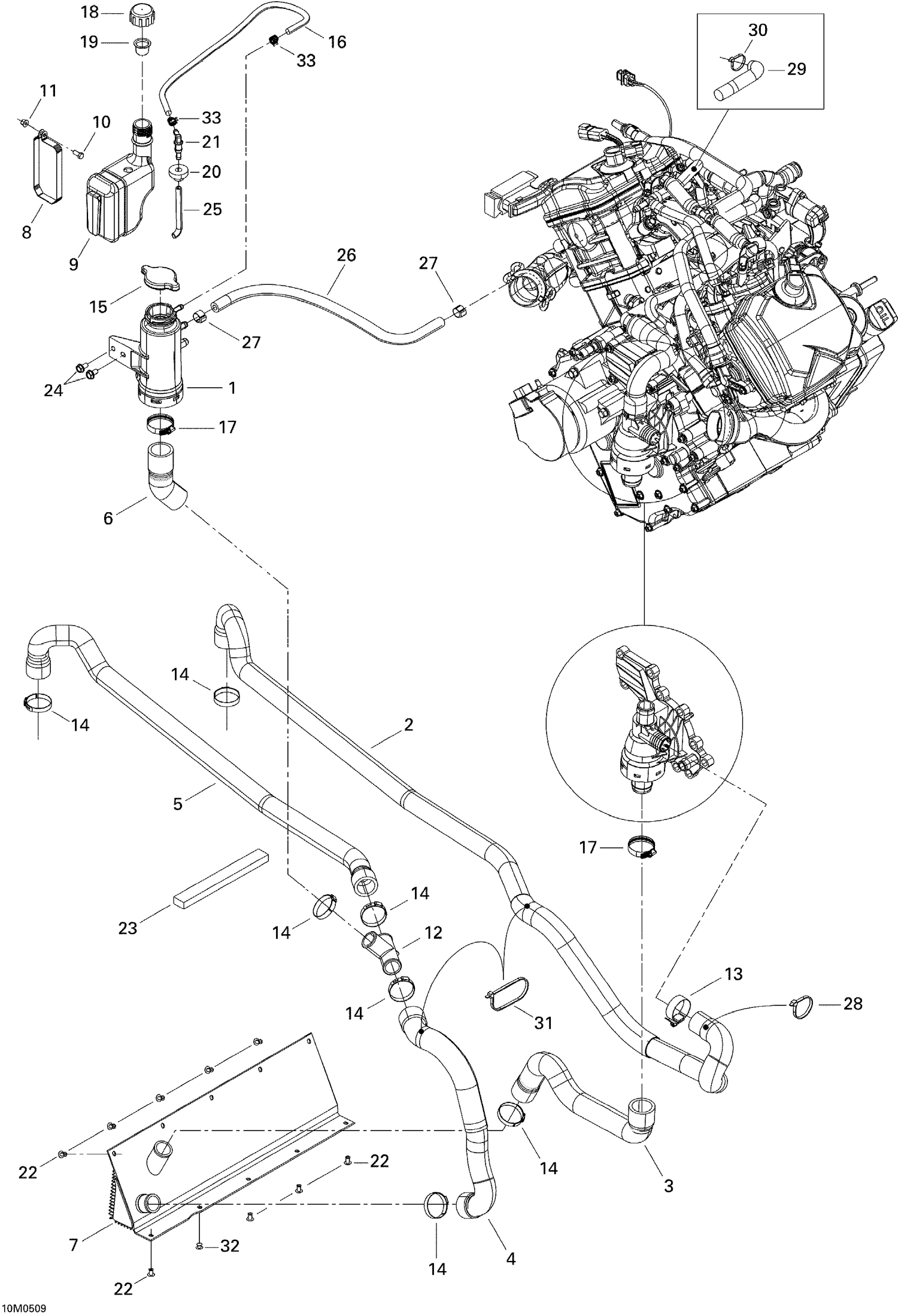

| Ref | Part Number | Description |
|---|
| 1 |
509000176 |
FILLER NECK ASS'Y - Call your local BRP dealership |
| 2 |
509000103 |
OUTLET HOSE - Call your local BRP dealership |
| 3 |
509000104 |
INLET HOSE - Call your local BRP dealership |
| 4 |
509000193 |
Front Hose Radiator |
| 5 |
509000105 |
REAR HOSE RADIATOR - Call your local BRP dealership |
| 6 |
509000195 |
Tank Hose |
| 7 |
509000146 |
Front Radiator |
| 8 |
509000191 |
COOLANT TANK SUPPORT - Call your local BRP dealership |
| 9 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 10 |
207151244 |
Hex. Screw M5 X 12 |
| 11 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 12 |
509000219 |
T-Fitting |
| 13 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 15 |
509000180 |
Radiator Pressure Cap |
| 16 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 17 |
293650045 |
Tridon Gear Clamp |
| 18 |
709200009 |
TANK CAP - Call your local BRP dealership |
| 19 |
709200205 |
PROTECTION CAP - Call your local BRP dealership This part replaces 709200034. |
| 20 |
709200285 |
Grommet This part replaces 570135100. |
| 21 |
414580600 |
Elbow Male Connector |
| 22 |
390402200 |
Pop Rivet 3/16" |
| 23 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 24 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 25 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 26 |
509000304 |
RETURN HOSE - Call your local BRP dealership |
| 27 |
293650125 |
Oetiker Clamp |
| 28 |
414115200 |
Tie-Rap 180 mm |
| 29 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 30 |
293750002 |
Tie Wrap 142 mm |
| 31 |
293750008 |
Tie Wrap 368 mm |
| 32 |
390402400 |
Pop Rivet 3/16" |
