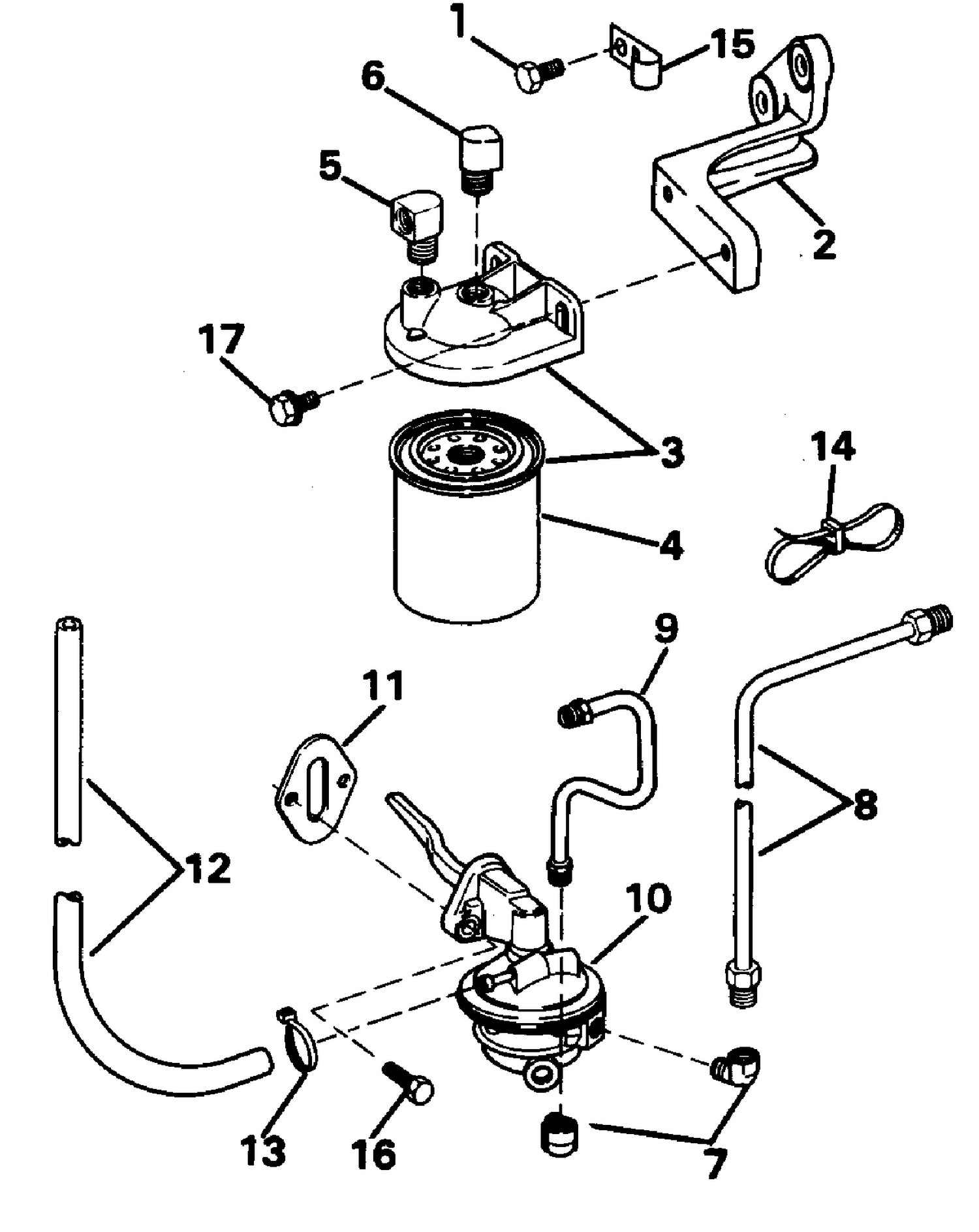

| Ref | Part Number | Description |
|---|
| 1 |
3853558 |
BOLT, Bracket to head |
| 2 |
3853379 |
BRACKET, Fuel filter |
| 3 |
3850861 |
COVER & FUEL FILTER ASSY |
| 4 |
5012363 |
Filter Ay This part replaces 0987754. |
| 5 |
0174180 |
FITTING, Fuel line to filter This part replaces 3852014. |
| 6 |
3852702 |
FITTING, Filter outlet |
| 7 |
3852525 |
FITTING, Fuel pump |
| 8 |
3854058 |
FUEL LINE, Pump to carb |
| 8 |
3854059 |
FUEL LINE, Pump to carb |
| 9 |
3854024 |
FUEL LINE, Filter to pump |
| 9 |
3854039 |
FUEL LINE, Filter to pump |
| 10 |
3854053 |
FUEL PUMP ASSY. |
| 11 |
0311064 |
GASKET, Fuel pump This part replaces 3852095. |
| 12 |
0909938 |
HOSE, Fuel overflow This part replaces 3854242. |
| 13 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 15 |
3853261 |
CLAMP, Fuel line |
| 16 |
3853326 |
SCREW, Bracket to engine |
