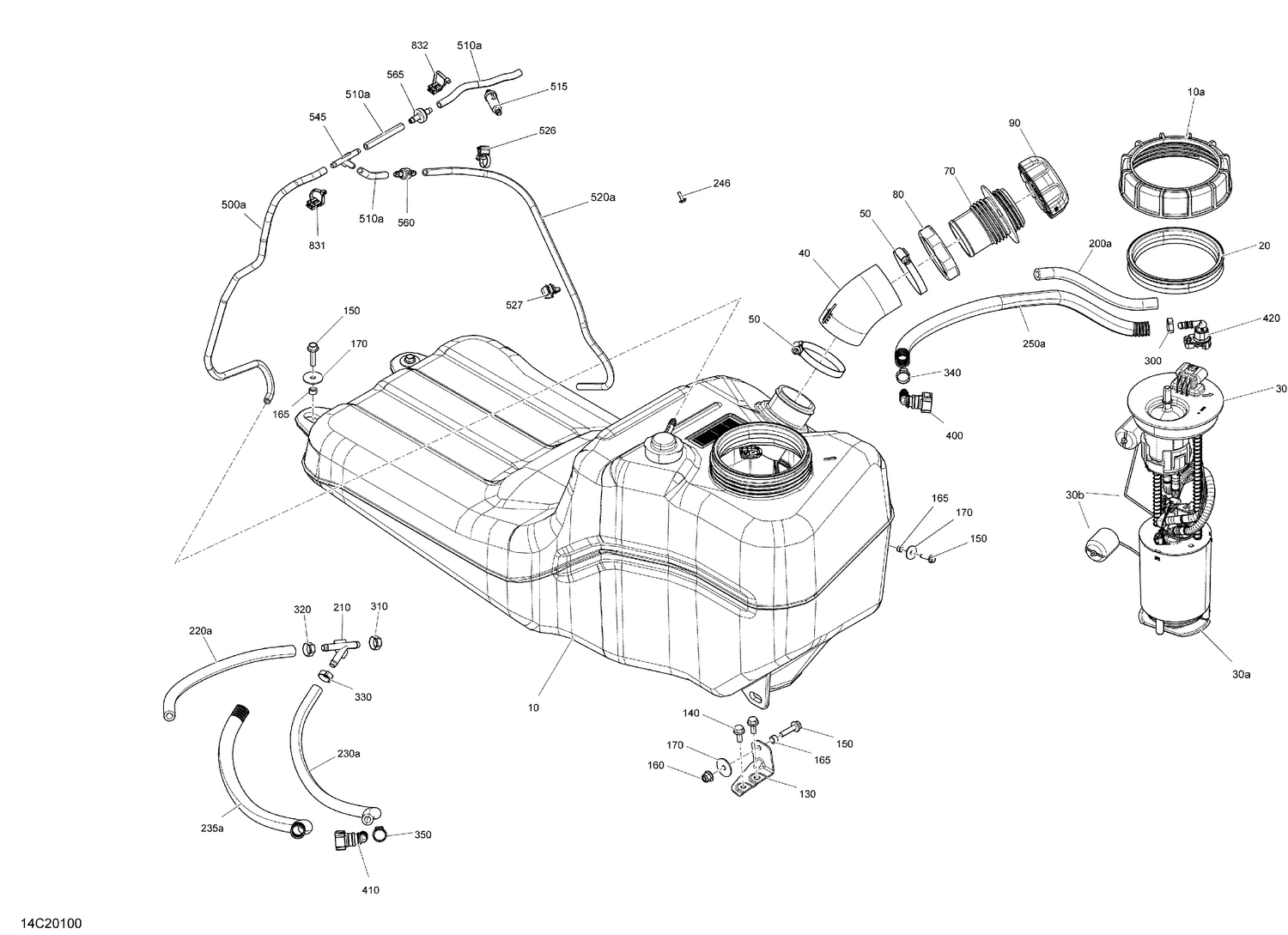

02- Fuel
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 250100062 | Special Nut M130 |
| 20 | 293250173 | Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 40 | 709000828 | Fil Neck Hose |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 211100012 | Filler Neck Nut, Fuel |
| 90 | 709000868 | Fuel Cap |
| 130 | 709000997 | Tank Bracket |
| 140 | 207661644 | Hex. Flange Screw M6 X 16 |
| 150 | 207662554 | Hex. Flange Screw M6 X 25 |
| 160 | 233261466 | Hex. Flange Elastic Nut M6 |
| 165 | 293900135 | Spacer |
| 170 | 250200029 | Washer M6 |
| 200a | 219704440 | Was 709000163 Fuel Line |
| 210 | 293710136 | Y-Fitting, 5/16'' |
| 220a | 219704440 | Was 709000163 Fuel Line |
| 230a | 219704440 | Was 709000163 Fuel Line |
| 235a | 219704408 | Tubing 16 Mm 1000Mm Long |
| 246 | 250000959 | Screw PT Type K-50 X 16 |
| 250a | 219704408 | Tubing 16 Mm 1000Mm Long |
| 300 | 293650047 | Crimp Clamp, 15.3-706R |
| 310 | 293650047 | Crimp Clamp, 15.3-706R |
| 320 | 293650047 | Crimp Clamp, 15.3-706R |
| 330 | 293650047 | Crimp Clamp, 15.3-706R |
| 340 | 293650047 | Crimp Clamp, 15.3-706R |
| 350 | 293650047 | Crimp Clamp, 15.3-706R |
| 400 | 275500700 | Quick Attach 90° |
| 410 | 275500700 | Quick Attach 90° |
| 420 | 275500921 | Quick Disconnect |
| 500a | 219704389 | Polyurethane Hose 4000MM Long |
| 510a | 219704389 | Polyurethane Hose 4000MM Long |
| 515 | 709001120 | Filter |
| 520a | 219704389 | Polyurethane Hose 4000MM Long |
| 526 | 710002896 | Tie-Rap Clip |
| 527 | 515176795 | Tie Rap Mount (screwable) |
| 545 | 293710059 | Y-Fitting |
| 560 | 513033469 | Check Valve |
| 565 | 275500398 | Check Valve |
| 831 | 293750062 | Tie Rap Clip |
