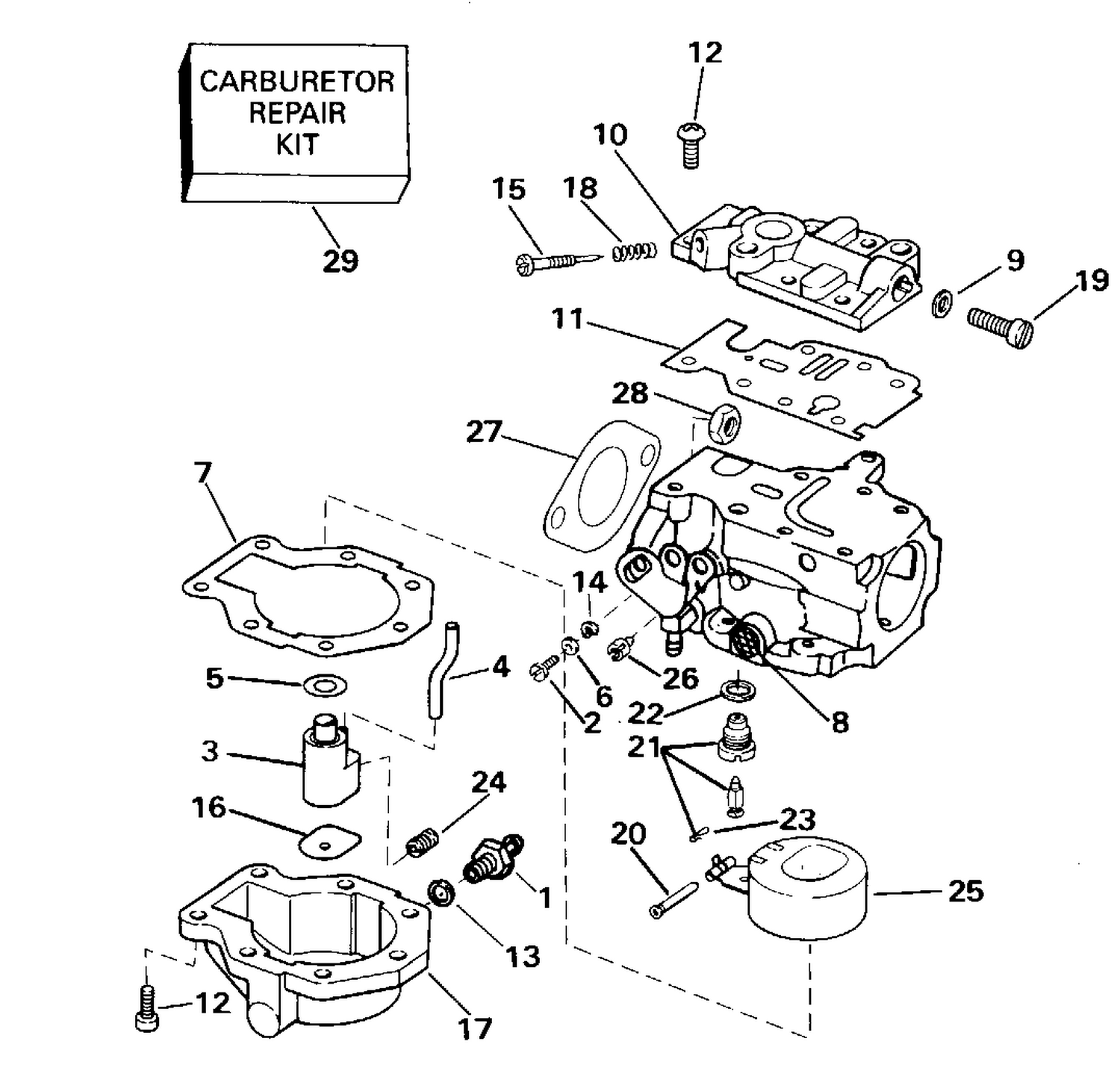

CARBURETOR - 20
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 0434398 | NOZZLE WELL |
| 4 | 0336567 | FLEX TUBE |
| 5 | 0338883 | GASKET, Upper |
| 10 | 0436366 | COVER, Carb. body |
| 16 | 0333348 | GASKET, Cover to housing |
| 23 | 0336842 | CLIP, SPRING |
| 24 | 0325827 | HIGH SPEED ORIFICE, No. 44 |
| 26 | 0313329 | LOCKWASHER, Carburetor link |
| 27 | 0318932 | JOINT |
| 28 | 0328742 | NUT |
| 0436921 | 0436921 | CARBURETOR ASSY. |
