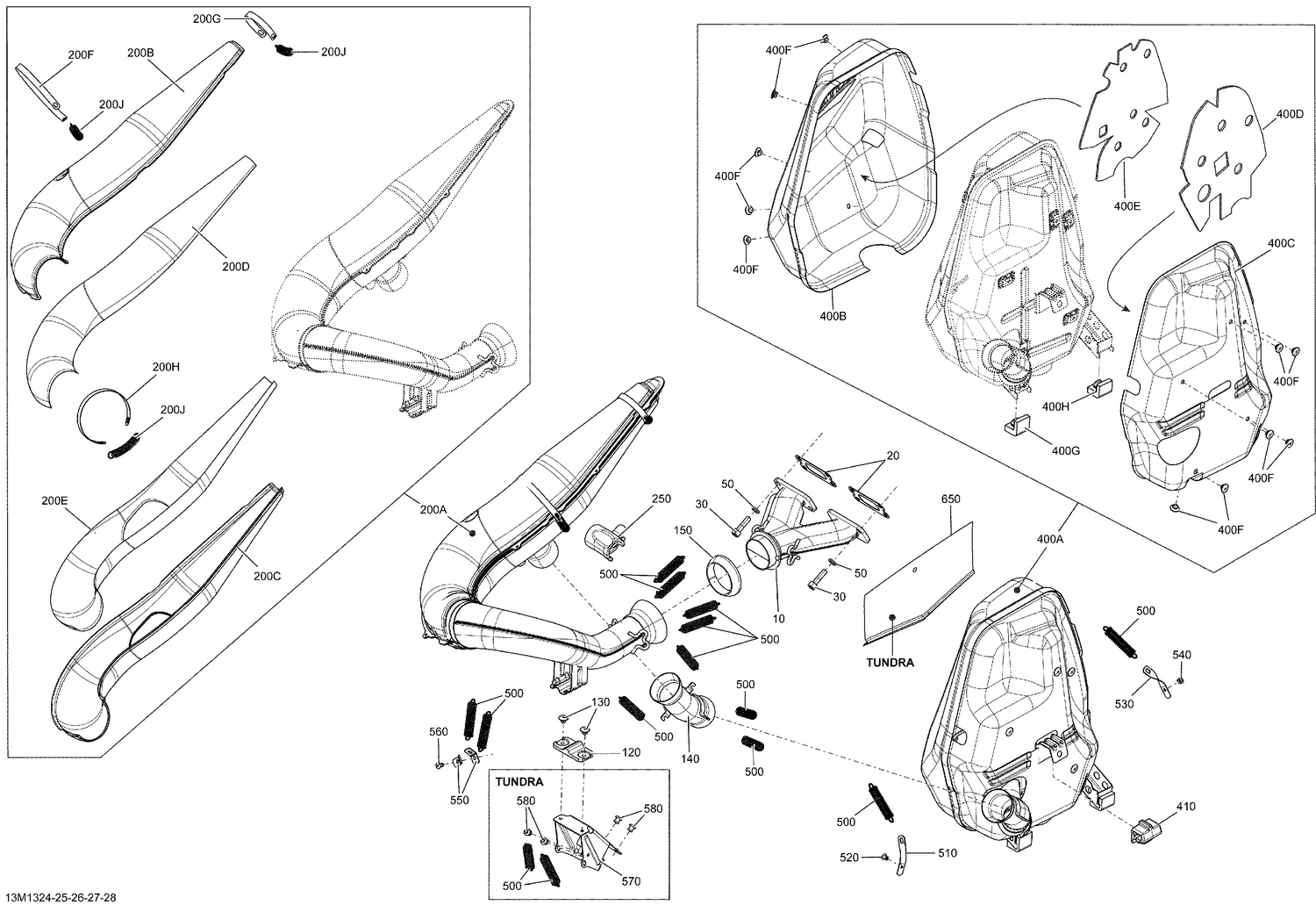

01- Exhaust System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 420673065 | Exhaust Manifold |
| 20 | 420831849 | Gasket 1.0 mm |
| 30 | 205083044 | Socket Head Screw M8 X 30 |
| 50 | 514053837 | Washer |
| 120 | 514054617 | Bumper |
| 130 | 293150103 | Pop Rivet 3/16" |
| 140 | 514054411 | Exhaust Elbow |
| 150 | 514053644 | Exhaust Gasket |
| 200B | 514054208 | Rear Upper Half-enveloppe |
| 200C | 514054210 | Rear Lower Half Envellope |
| 200D | 514054244 | Upper Insulating Wool |
| 200E | 514054243 | Lower Insulating Wool |
| 200F | 514053502 | Retaining Strap |
| 200G | 514053491 | RETAINING STRAP - Call your local BRP dealership |
| 200H | 514053498 | Retaining Strap |
| 200J | 514053643 | Spring |
| 250 | 514054513 | Bumper |
| 400B | 514054984 | RH Deflector |
| 400C | 514054979 | LH Deflector |
| 400D | 514054421 | LH Insulated Wool |
| 400E | 514054711 | RH Insulating Wool |
| 400F | 390910000 | Pop Rivet 3/16” |
| 400G | 514054274 | Lower Stopper |
| 400H | 514054496 | Lower Stopper |
| 410 | 514054606 | Upper Stopper |
| 500 | 415107100 | Spring |
| 510 | 514054974 | Spring Bracket, 5mm hole |
| 520 | 390402200 | Pop Rivet 3/16" |
| 530 | 514054974 | Spring Bracket, 5mm hole |
| 540 | 390402200 | Pop Rivet 3/16" |
| 550 | 514053436 | Spring Bracket |
| 560 | 390909100 | Avex Rivet |
| 570 | XXX | Not Available As Spare Parts |
| 580 | XXX | Not Available As Spare Parts |
