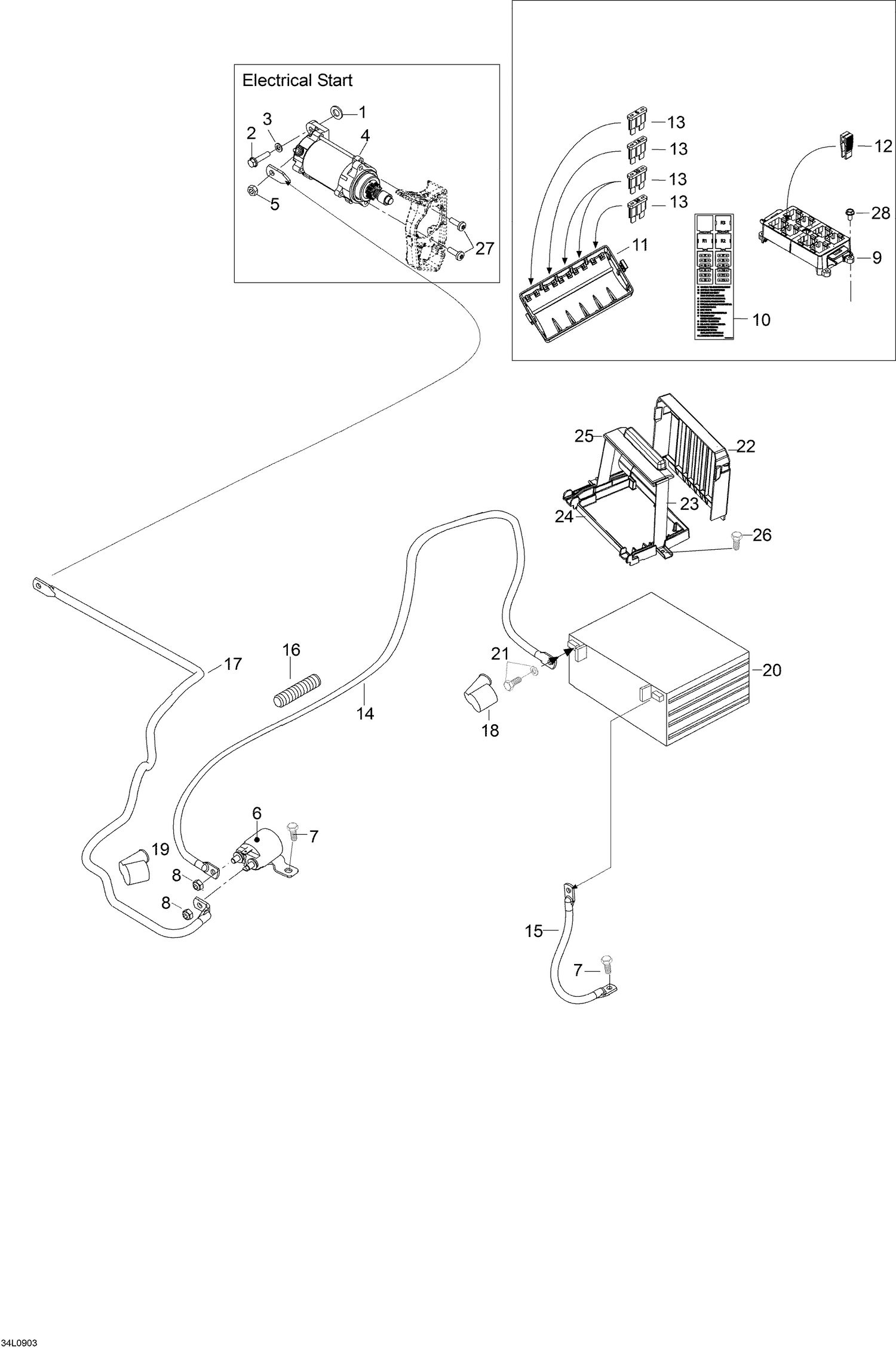

08- Electric Starter
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176500 | Sleeve |
| 2 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 3 | 250200008 | Flat Washer With Teflon 8 mm |
| 4 | 515178473 | Starter This part replaces 515177389. |
| 5 | 33010 | Lock Nut M6 (1=10Pcs) |
| 6 | 515176011 | Solenoid |
| 7 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 9 | 415129856 | Fuse Box Kit |
| 10 | 605453790 | FUSE DECAL - Call your local BRP dealership |
| 11 | 515176066 | COVER - Call your local BRP dealership |
| 12 | 515175811 | FUSE TOOL - Call your local BRP dealership |
| 13 | 278000344 | Fuse 5 A |
| 13 | 278000704 | FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 13 | 409003900 | Fuse 20 A |
| 13 | 410917200 | Fuse 30 A |
| 13 | 42044 | FUSE 1 A - Call your local BRP dealership |
| 14 | 515176805 | BATTERY CABLE - Call your local BRP dealership |
| 15 | 515176780 | Ground wire |
| 16 | 28015 | Tubing |
| 17 | 515176806 | Battery wire |
| 18 | 278001771 | PROTECTOR CAP - Call your local BRP dealership |
| 19 | 570151000 | Cover |
| 21 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 22 | 510005079 | Battery cover |
| 23 | 510005143 | Retainer strap |
| 24 | 515176804 | Battery space |
| 25 | 510005146 | Retainer strap tubing |
| 26 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
