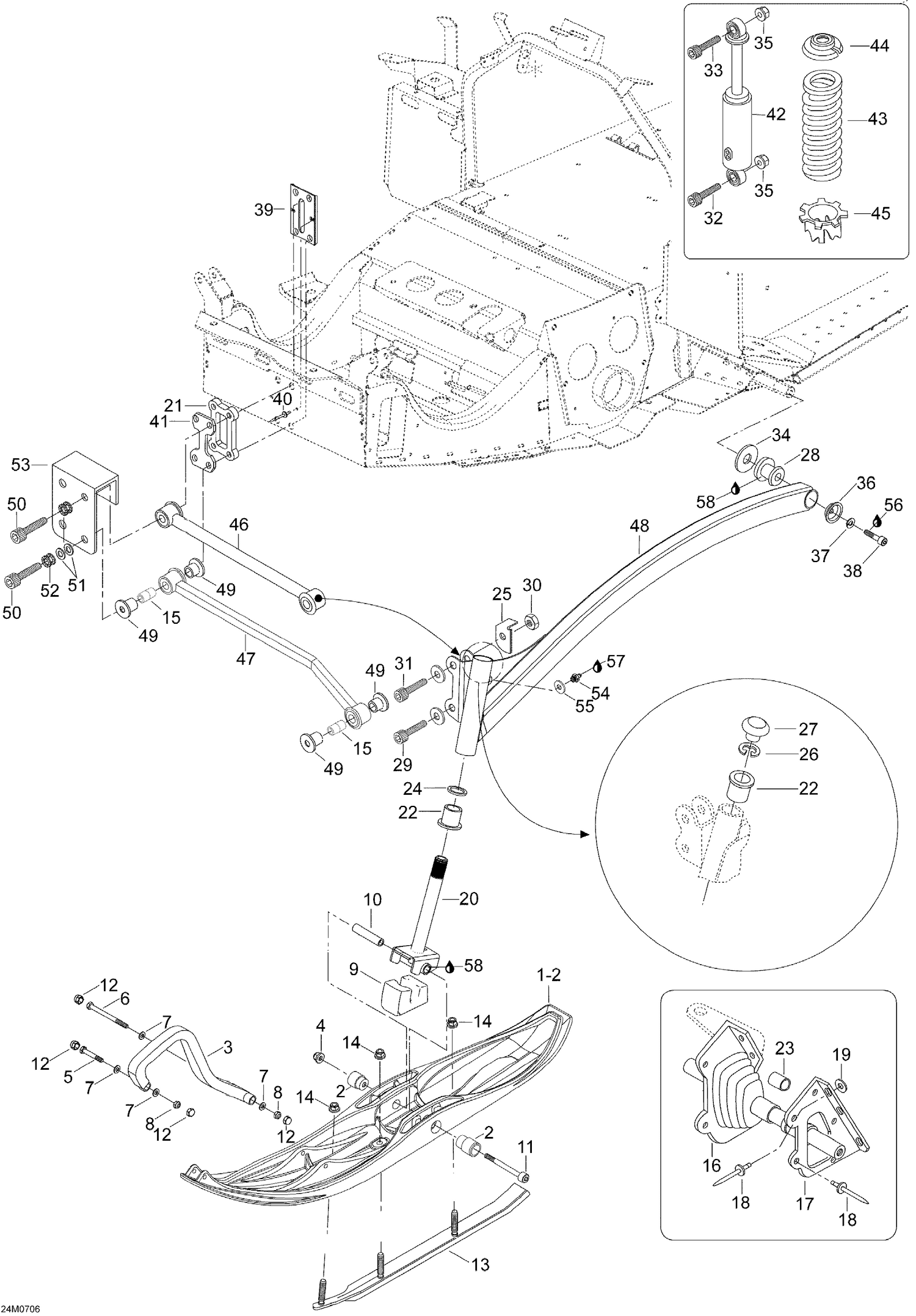

| Ref | Part Number | Description |
|---|
| 2 |
605348392 |
Bushing |
| 3 |
505070963 |
Black, Handle |
| 4 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074. |
| 5 |
207085044 |
Hex. Screw M8 X 50 |
| 6 |
207089044 |
Hex. Screw M8 X 90 This part replaces M40264. |
| 7 |
234081410 |
Flat Washer 8 mm |
| 8 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 9 |
605348458 |
SKI STOPPER - Call your local BRP dealership |
| 10 |
506133300 |
Spacer |
| 11 |
40225 |
Allen Screw M10x140 8.8zn(1=10pcs) This part replaces M40225. |
| 12 |
28056 |
Cover This part replaces M28056. |
| 14 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074. |
| 15 |
605450024 |
BUSHING - Call your local BRP dealership |
| 16 |
570024800 |
RH Tie Rod Cap |
| 16 |
570024900 |
LH TIE ROD CAP - Call your local BRP dealership |
| 17 |
605350119 |
LH COVER PLATE - Call your local BRP dealership |
| 17 |
605350120 |
RH COVER PLATE - Call your local BRP dealership |
| 18 |
36009 |
Rivet This part replaces M36009. |
| 19 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 20 |
506151234 |
Ski Leg |
| 21 |
605350191 |
Spacer 17.5 |
| 22 |
505070003 |
Cushion |
| 23 |
572036500 |
BUSHING - Call your local BRP dealership |
| 24 |
505070004 |
WASHER - Call your local BRP dealership |
| 25 |
605448861 |
RH Plate Locking |
| 25 |
605448862 |
LH Plate Locking |
| 26 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 27 |
572091300 |
Cap |
| 28 |
570062200 |
DAMPER - Call your local BRP dealership |
| 29 |
M40371 |
Screw Allen M12 X 55 |
| 30 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 31 |
M40306 |
Allen Screw M12 X 60 |
| 32 |
M40136 |
Socket Head Screw. M10 X 50 |
| 33 |
M40837 |
Screw M10 X 55 |
| 34 |
503146700 |
WASHER - Call your local BRP dealership |
| 35 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 36 |
705007171 |
Cup This part replaces 506115800. |
| 37 |
234181401 |
Lock Washer 8 mm |
| 38 |
M40810 |
Screw Allen M8 X 20 |
| 39 |
605353972 |
PLATE - Call your local BRP dealership |
| 40 |
36005 |
Rivet This part replaces M36005. |
| 41 |
605450900 |
MIDDLE PLATE - Call your local BRP dealership |
| 42 |
23183 |
Shock This part replaces M23183. |
| 43 |
M250143 |
White Spring |
| 44 |
230076 |
Spring Seat This part replaces M230076. |
| 45 |
M230078 |
CAM - Call your local BRP dealership |
| 46 |
605350022 |
UPPER ARM ASSY - Call your local BRP dealership |
| 47 |
605252224 |
LOWER ARM - Call your local BRP dealership |
| 48 |
605251767 |
SWING ARM WELD LH B - Call your local BRP dealership |
| 48 |
605251768 |
Swing Arm Weld RH |
| 49 |
506149100 |
CUSHION - Call your local BRP dealership |
| 50 |
M40370 |
SCREW ALLEN M12 X 75 - Call your local BRP dealership |
| 51 |
M20027 |
WASHER - Call your local BRP dealership |
| 52 |
M20074 |
Lock Washer |
| 53 |
605350192 |
PLATE - Call your local BRP dealership |
| 54 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. |
| 55 |
M20007 |
WASHER - Call your local BRP dealership |
| 56 |
293800060 |
Loctite 243, 10 ml |
| 57 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
