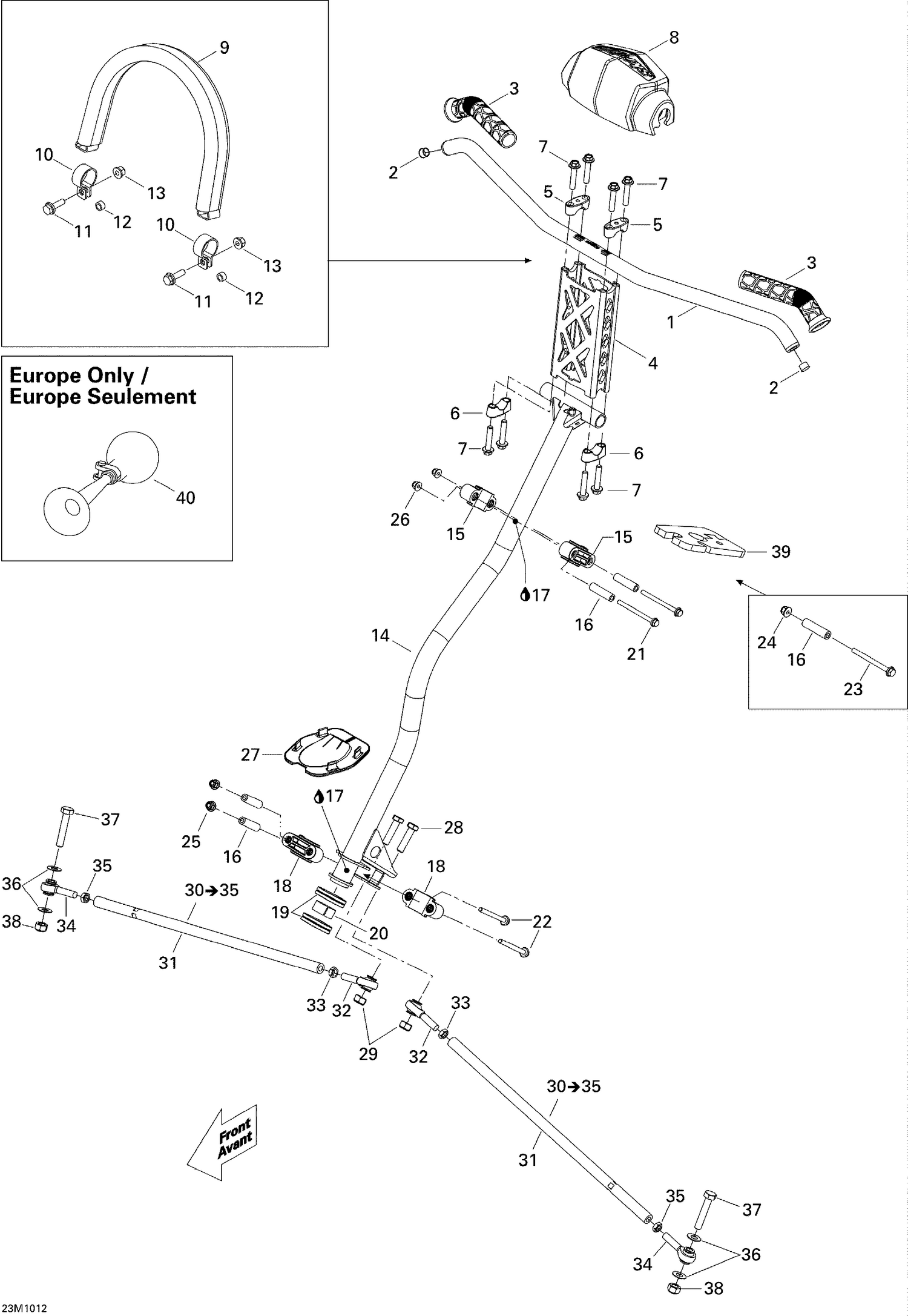

| Ref | Part Number | Description |
|---|
| 1 |
506152709 |
Handle Bar, Non Dyed Clear Anodizing This part replaces 506152191. |
| 2 |
572051500 |
Cap |
| 3 |
506152486 |
Grip This part replaces 506152226. |
| 4 |
860200821 |
Extension Kit ( 205mm ) This part replaces 860200269. |
| 5 |
506152751 |
Steering Support This part replaces 506152394. |
| 6 |
506152751 |
Steering Support This part replaces 506152395. |
| 7 |
250000352 |
Hex. Flange Screw M8 X 40 |
| 8 |
506152192 |
Steering Pad |
| 9 |
506152115 |
Strap Ass'y |
| 10 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 11 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 12 |
506152156 |
Bushing |
| 13 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 14 |
506152478 |
MAIN TUBE - Call your local BRP dealership |
| 15 |
506152293 |
Half-Housing |
| 16 |
506152297 |
Housing Bushing |
| 17 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 18 |
506152217 |
Lower Half-Housing |
| 19 |
506152518 |
Lower Vibration Ring This part replaces 506152218. |
| 20 |
506152440 |
RETAINING RING - Call your local BRP dealership |
| 21 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 22 |
207667044 |
Hex. Flange Screw M6 X 70 |
| 23 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 24 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 25 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 26 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 27 |
506152163 |
Plate |
| 28 |
207004034 |
Hex. Screw M10 X 1.5 X 40 |
| 29 |
232500416 |
Elastic Stop Nut M10 |
| 31 |
506152499 |
ROD_TIE ASSY - Call your local BRP dealership This part replaces 506152413. |
| 32 |
506152081 |
LH Thread Ball Joint |
| 33 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 34 |
506152019 |
RH Threaded Ball Joint |
| 35 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 36 |
506152194 |
Washer |
| 37 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 38 |
232500416 |
Elastic Stop Nut M10 |
| 39 |
506152476 |
Bushing |
