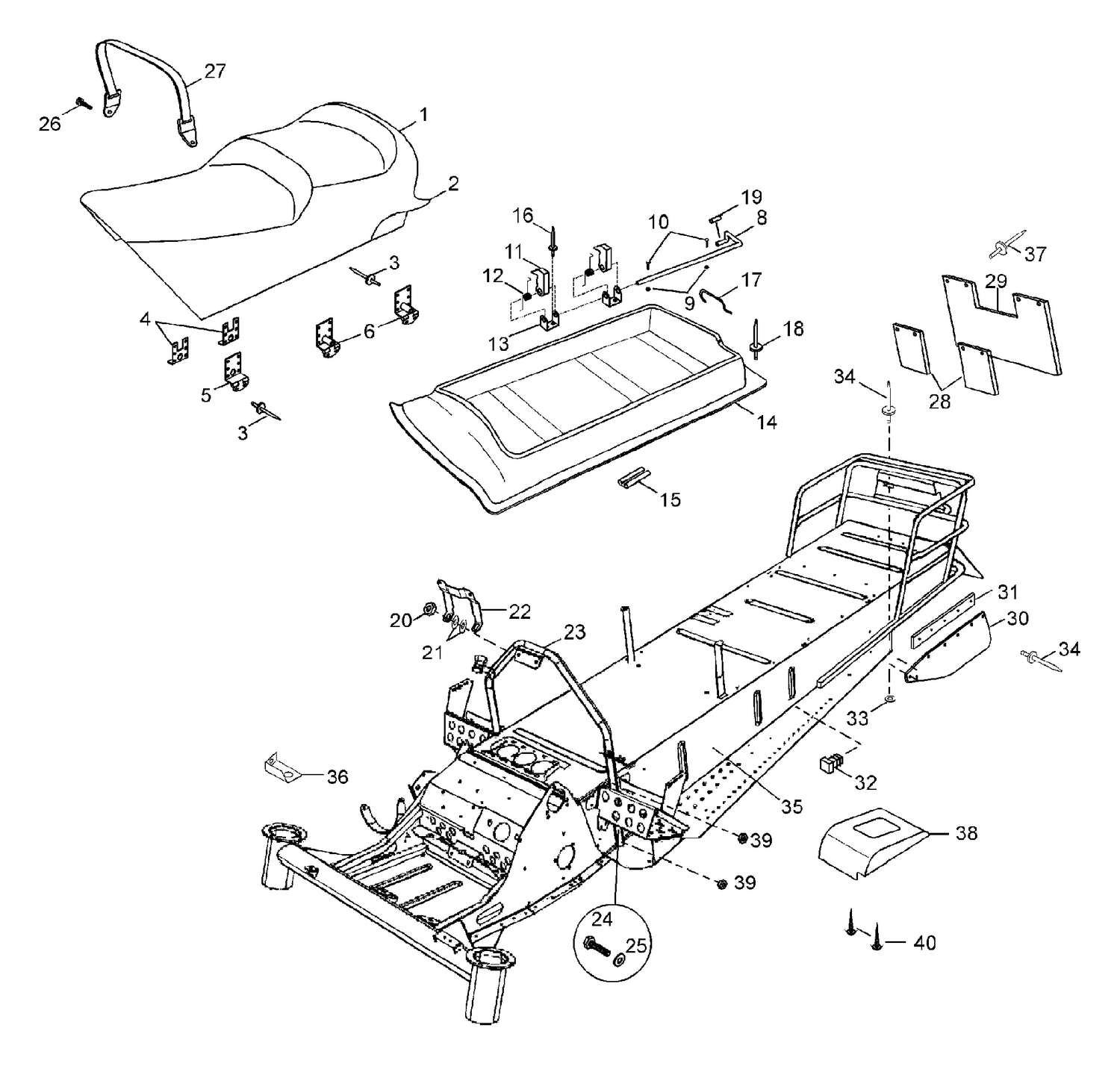

09- Frame
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5242665 | Seat foam |
| 2 | 5345420 | Seat Cover |
| 3 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 4 | 5441278 | Locking plate |
| 5 | 5441918 | Hinge |
| 6 | 5441279 | Hinge weld. |
| 8 | 539875 | Locking lever |
| 9 | 33008 | Nut elastic M4 |
| 10 | 40144 | Allen screw M4 x 16 DIN 912m8.8(1=10pcs) - Call your local BRP dealership |
| 11 | 549605 | Locking device |
| 12 | 5441847 | Spring |
| 13 | 5441362 | Support |
| 14 | 5242664 | Seat base |
| 15 | 5442641 | Seal |
| 16 | 36083 | Rivet |
| 17 | 5441849 | Stopper |
| 18 | 36036 | Rivet |
| 19 | 28019 | Plugg |
| 20 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 21 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 22 | 5340085 | Support |
| 23 | 5244678 | Main Tube Weld |
| 24 | 40002 | Screw M6x40 |
| 25 | 20003 | Washer |
| 26 | 40305 | Allen screw M8x20 |
| 27 | 5341468 | Strap for seat |
| 28 | 537576 | Support |
| 29 | 5344645 | Snow guard |
| 30 | 5344301 | Snow guard, side |
| 31 | 5343116 | Rinforcement |
| 32 | 28232 | Plugg |
| 33 | 20008 | Washer |
| 34 | 36005 | Rivet |
| 35 | 5145507 | Frame |
| 36 | 549952 | Support R.H. |
| 36 | 549954 | Support L.H. |
| 37 | 36037 | Rivet |
| 38 | 414975300 | Footrest R.H. |
| 38 | 414975400 | Footrest L.H. |
| 39 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 40 | 40177 | Screw |
