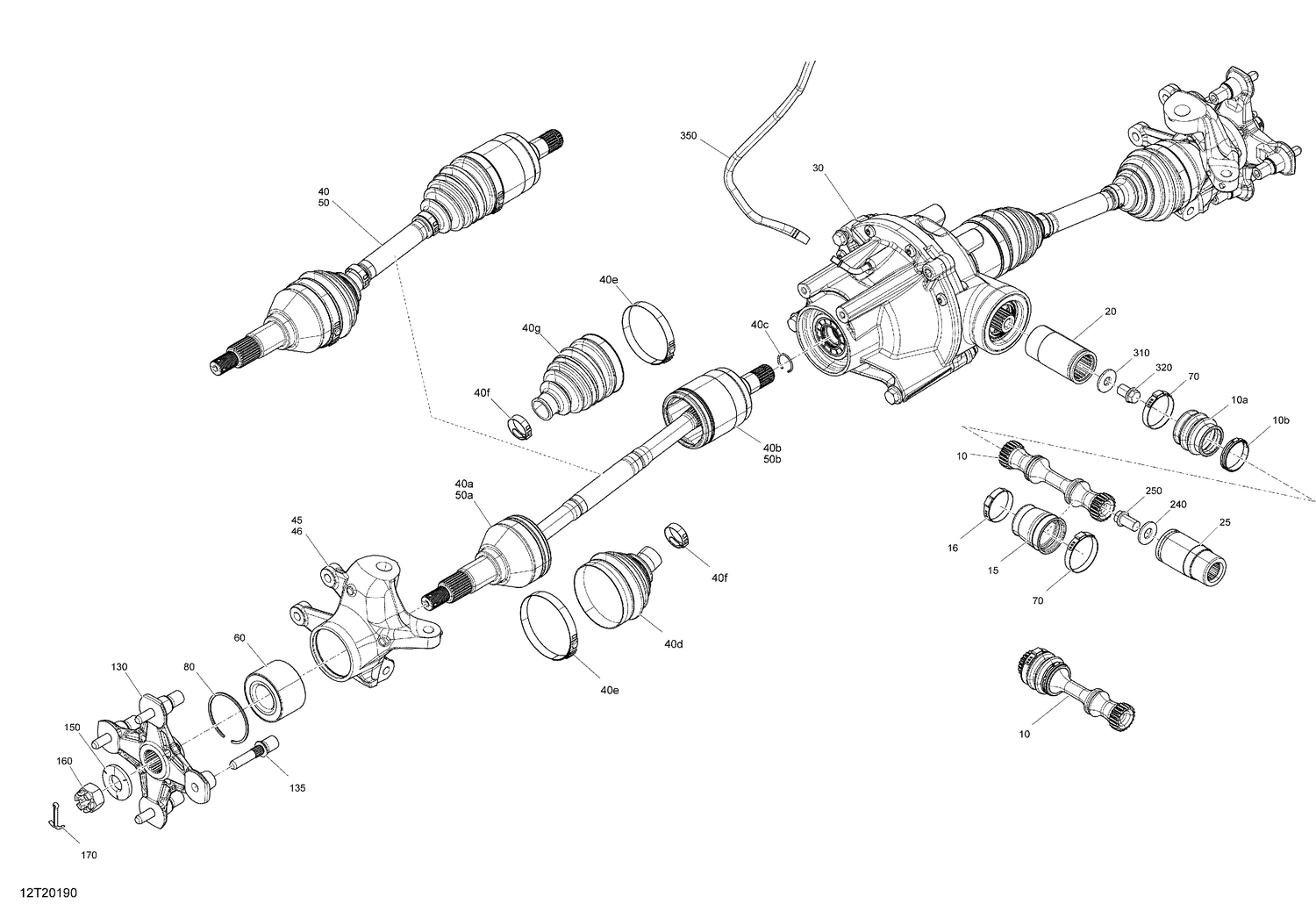

07- Front Drive - Common Parts
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10b | 509000045 | Oetiker Gear Clamp 36.1MM |
| 15 | 705401093 | Rubber Boot |
| 16 | 293650199 | Oetiker Gear Clamp |
| 20 | 705401969 | Coupling Sleeve |
| 25 | 703500678 | Front Bushing Shaft Kit |
| 30 | 703500908 | Front Differential |
| 40a | 715900428 | JOINT_CV EXT - Call your local BRP dealership |
| 40b | 715900395 | RH Plunging CV Joint |
| 40c | 705401349 | Circlip Joint |
| 40e | 715900260 | Oetiker Clamp, Large |
| 40f | 715900261 | Oetiker Clamp, Small |
| 45 | 705403307 | LH Knuckle This part replaces 705401290. |
| 46 | 705403308 | RH Knuckle This part replaces 705401291. |
| 50a | 705401407 | CV Joint |
| 50b | 715900396 | LH Plunging CV Joint |
| 60 | 293350150 | Ball Bearing This part replaces 293350118. |
| 70 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 80 | 293370019 | Circlip |
| 130 | 705501900 | Wheel Hub |
| 150 | 250200171 | Conical Spring Washer M18 |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 170 | 250400071 | Cotter Pin |
| 240 | 250200102 | Flat Washer M12 |
| 250 | 250001042 | Hex Flange Screw M12 X 20 |
| 310 | 250200014 | Flat Washer M10 |
| 320 | 250001046 | Hex Flange Screw M10 X 20 S.Grip |
