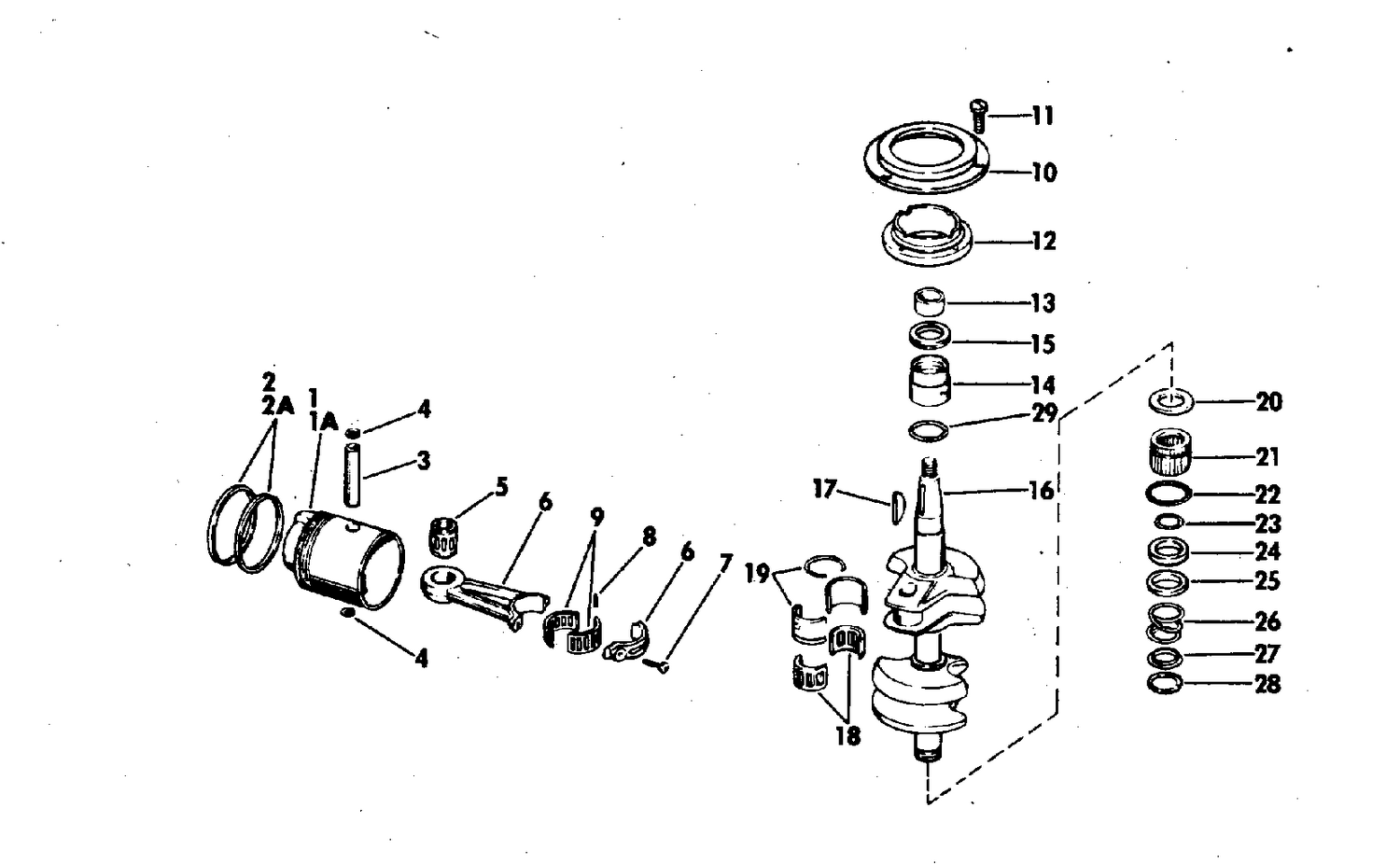

| Ref | Part Number | Description |
|---|
| 1 |
0385339 |
PISTIN,Standard |
| 1A |
0385340 |
PISTON, .030 O.S. |
| 2 |
0383473 |
FLOAT ASSY |
| 2 |
0385349 |
RING SET, Standard |
| 2A |
0385350 |
RING SET, .030 O.S. |
| 3 |
0304691 |
WRIST PIN |
| 4 |
0302577 |
RETAINING RING |
| 5 |
0378251 |
BEARING SET, Needle, wrist pin |
| 6 |
0383462 |
CONNECTING ROD ASSEMBLY |
| 7 |
0202967 |
SCREW |
| 8 |
0383724 |
NEEDLE SET |
| 9 |
0383727 |
RETAINER SET |
| 10 |
0303278 |
SUPORT, Armature plate |
| 11 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 12 |
0303277 |
RETAINING RING |
| 13 |
0316583 |
CAM, Magneto |
| 14 |
0377528 |
ROLLER BEARING & SEAL ASSEMBLY, Upper |
| 15 |
0305987 |
SEAL |
| 16 |
0383182 |
CRANKSHAFT |
| 17 |
0120395 |
KEY |
| 18 |
0378838 |
REATINER & NEEDLES, Center bearing |
| 19 |
0309010 |
SLEEVE, Split, center bearing |
| 20 |
0304732 |
THRUST WASHER |
| 21 |
0375763 |
BEARING, Roller, lower |
| 24 |
0302538 |
CARBON SEAL |
| 25 |
0302594 |
CLAMP |
| 26 |
0302539 |
SPRING |
| 27 |
0303801 |
WAHSER, Lower |
| 28 |
0302536 |
RETAING RING |
