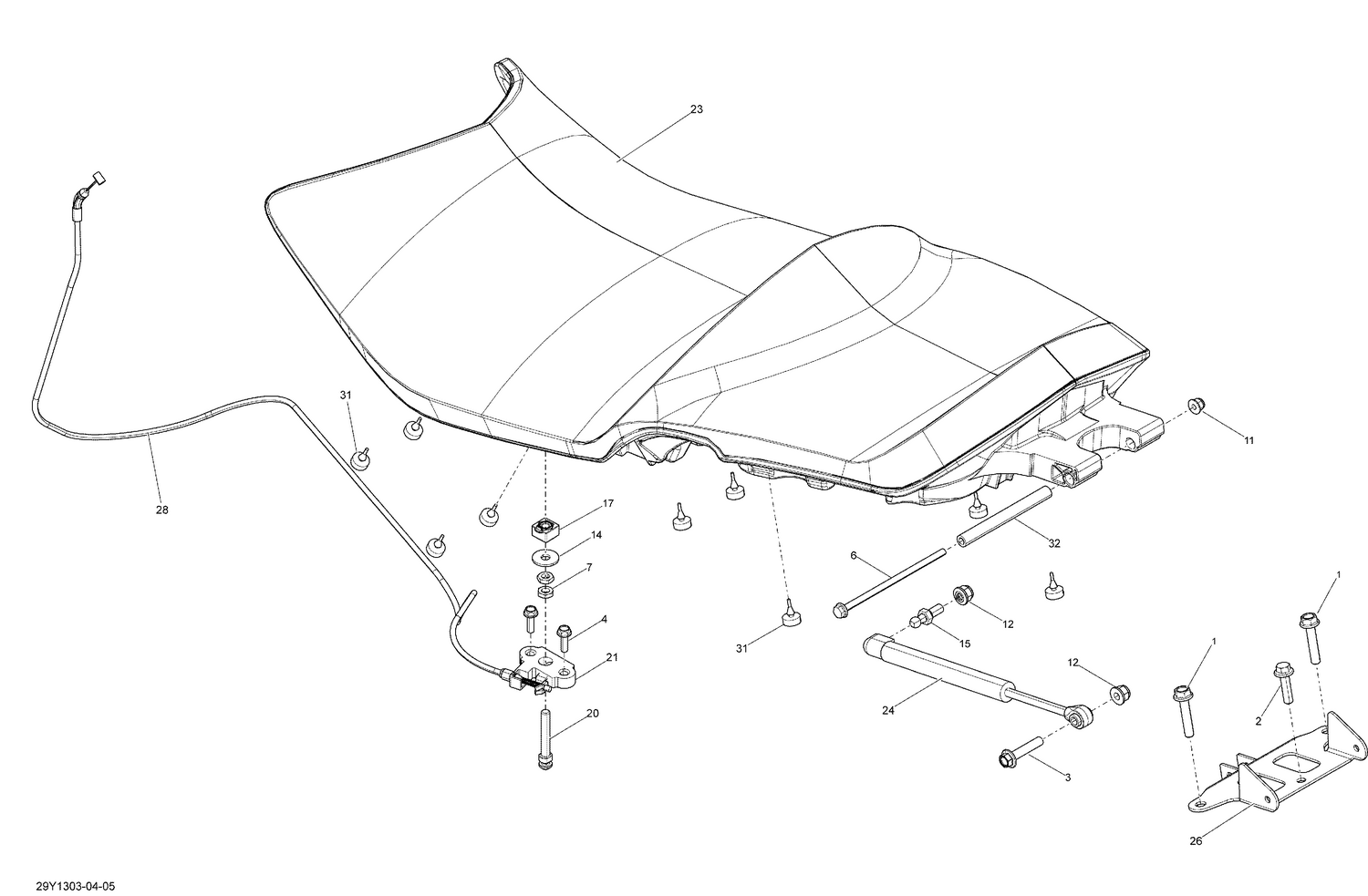

09- Seat
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207584044 | Hex. Flange Screw M8 X 40, Scotch Grip |
| 2 | 207683034 | Hex. Flange Screw M8 X 30 |
| 3 | 207684044 | Hex. Flange Screw M8 X 40 |
| 4 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 6 | 230663084 | Hex. Flange Screw M6 X 130 |
| 7 | 232180600 | Hex. Jam Nut M8 |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 234082410 | Flat Washer 8 mm |
| 15 | 250300039 | Ball Head Stud |
| 17 | 269501943 | Elastic Nut Housing M8 This part replaces 269501387. |
| 20 | 705002223 | Lug |
| 21 | 705007379 | Latch This part replaces 705005904. |
| 24 | 708000479 | Gaz Shock |
| 26 | 708001770 | PIVOT PLATE - Call your local BRP dealership This part replaces 708000510. |
| 28 | 708001743 | Seat Cable This part replaces 708000489. |
| 31 | 708000759 | Rubber Stopper |
