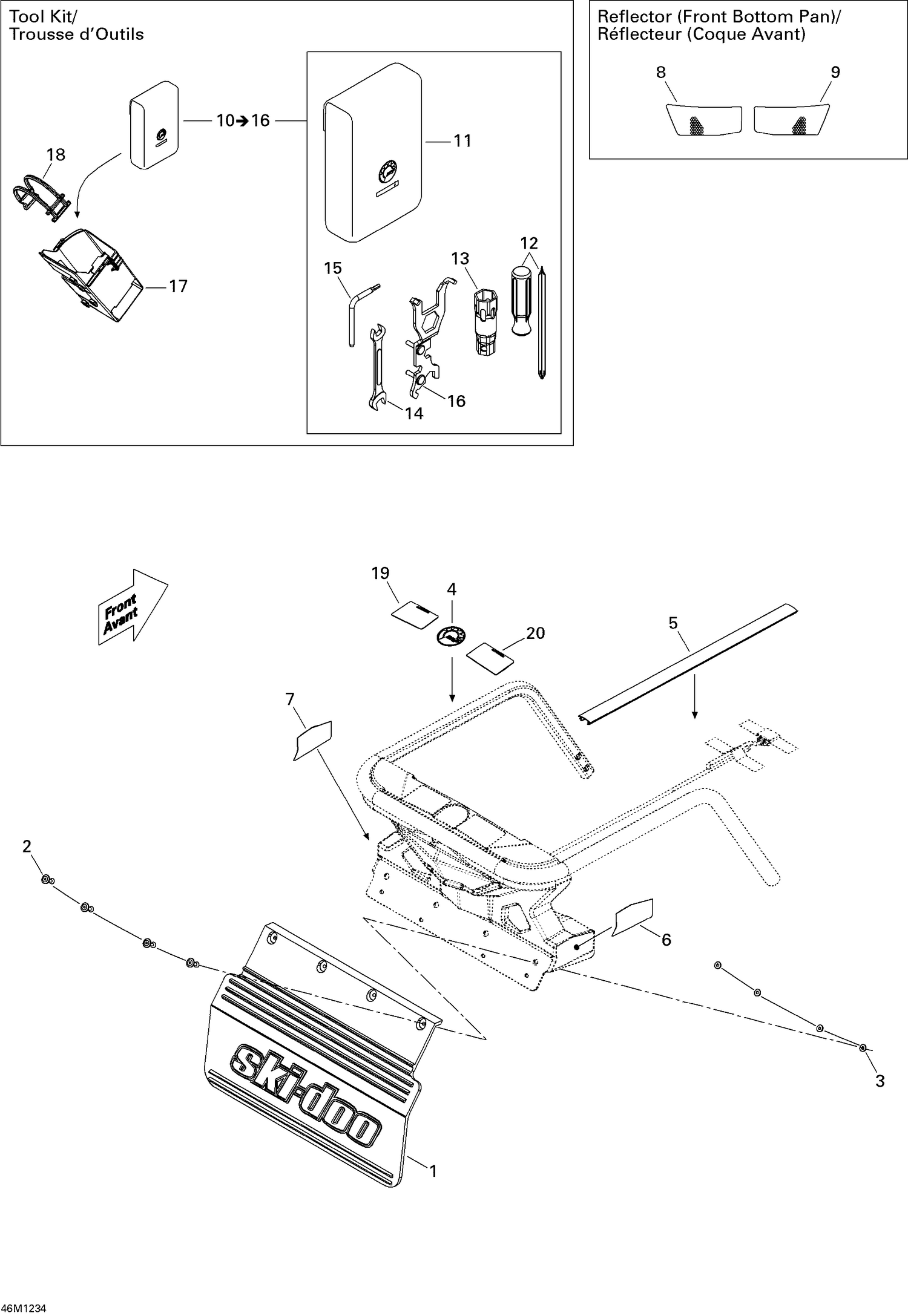

| Ref | Part Number | Description |
|---|
| 1 |
520000949 |
Snow Guard |
| 2 |
293150100 |
Pop Rivet 3/16" |
| 3 |
517124300 |
Washer |
| 4 |
219903305 |
BRP Logo 48 mm |
| 5 |
520000829 |
Radiator Trim |
| 8 |
520000891 |
Yellow, RH Front Reflector |
| 9 |
520000892 |
Yellow, LH Front Reflector |
| 11 |
Not |
Available As Spare Part - Tool Bag |
| 12 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Socket Wrench, 16/21 mm |
| 14 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 15 |
520001142 |
Spacing Tool |
| 16 |
520000988 |
WRENCH SUSPENSION - Call your local BRP dealership |
| 17 |
520000894 |
Tool Kit Rack |
| 18 |
520000528 |
Latch |
| 19 |
516005043 |
LH WARNING DECAL, SECURITY - Call your local BRP dealership |
