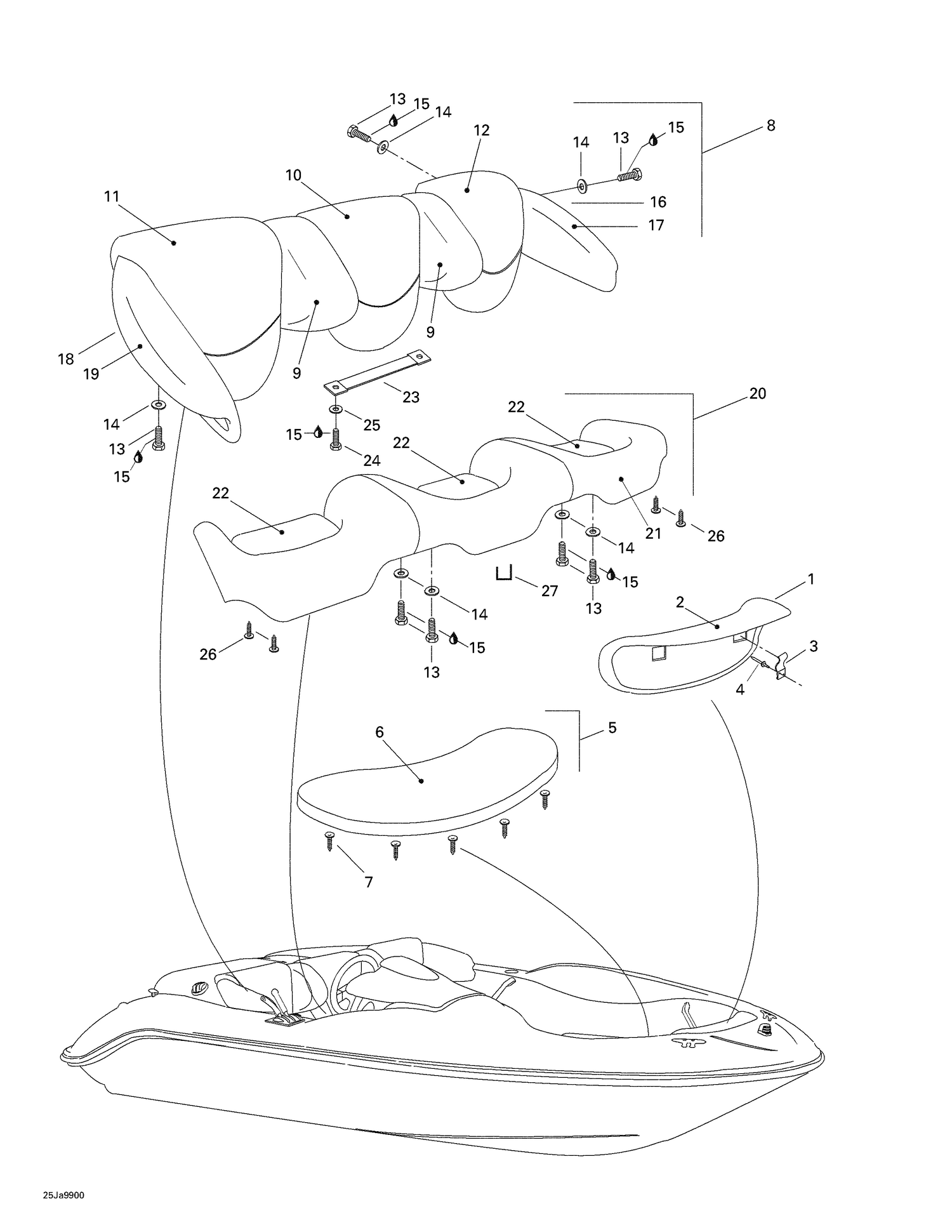

09- Seats
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204610096 | Front Backrest Cover (Ultra-Marine) |
| 3 | 269000388 | SEAT SUPPORT - Call your local BRP dealership |
| 4 | 293150043 | Pop Rivet 3/16" |
| 6 | 204610301 | Front Seat Cover |
| 7 | 293730006 | Black, Dart |
| 9 | 204610091 | Backrest Cover |
| 10 | 204610309 | Backrest Cover (Center) |
| 11 | 204610310 | RH Backrest Cover |
| 12 | 204610468 | Backrest Cover (Left) |
| 13 | 207163060 | Hex. Screw M6 X 30 |
| 14 | 234062600 | Flat Washer M6, Stainless |
| 15 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 17 | 204610313 | LH Armrest Cover |
| 19 | 204610317 | RH Armrest Cover |
| 21 | 204610093 | Rear Seat Cover |
| 22 | 204610307 | Rear Seat Pillow Cover |
| 23 | 204610286 | Strap |
| 24 | 207161660 | Hex. Screw M6 X 16 |
| 25 | 234062600 | Flat Washer M6, Stainless |
| 26 | 293730014 | Black Dart |
