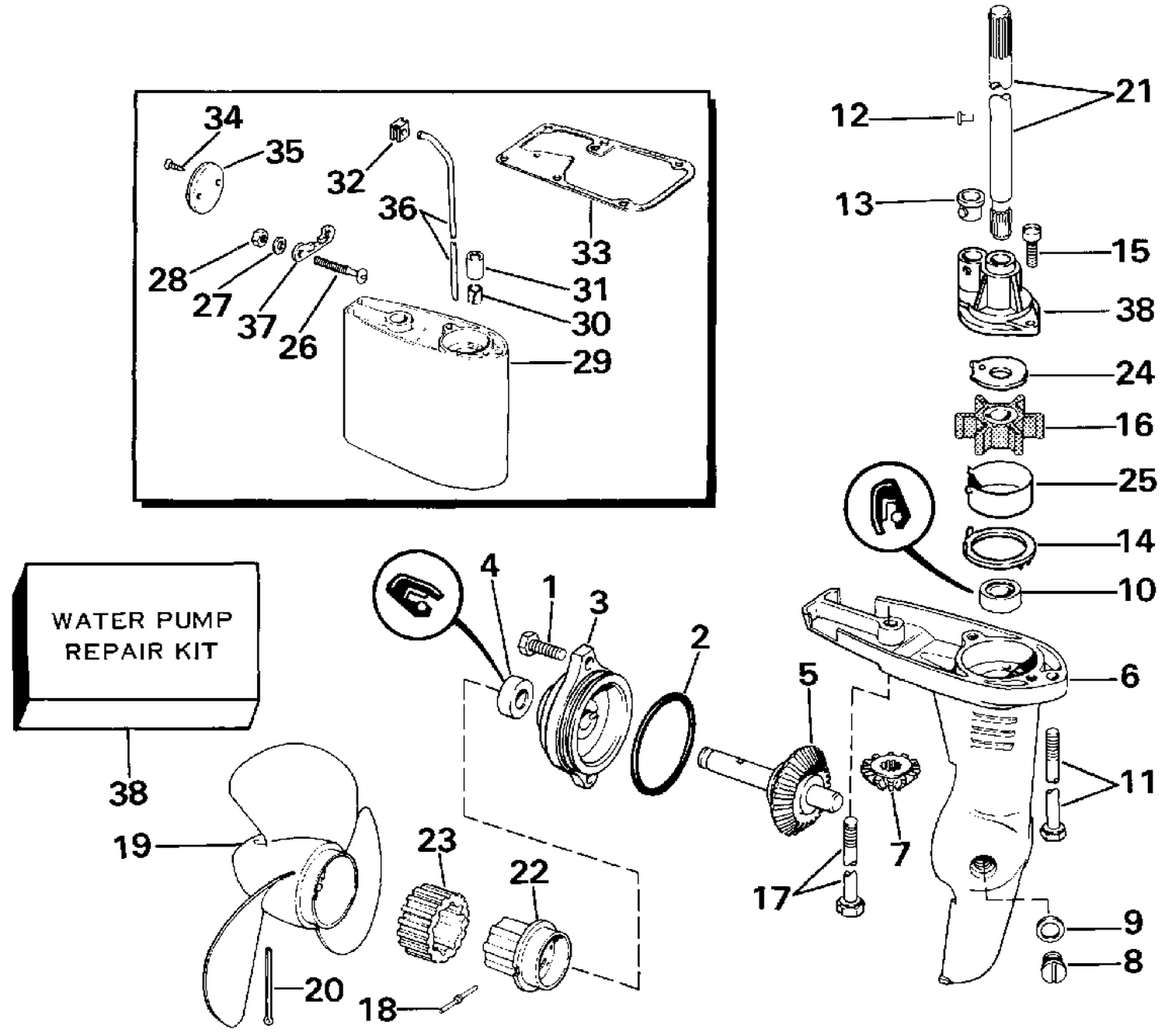

| Ref | Part Number | Description |
|---|
| 3 |
0383341 |
EARCASE HEAD AND BUSHING ASSEMBLY |
| 5 |
0382222 |
PROF. SHAFT & GEAR ASSY. |
| 6 |
0389066 |
GEARCASE & BUSH. ASSY. |
| 7 |
0313608 |
PINION, Driveshaft |
| 11 |
0303398 |
VIS, support |
| 11 |
0315221 |
SCREW, G case mtg, long |
| 12 |
0321130 |
DRIVE PIN, Impeller |
| 14 |
0321126 |
SPACER, Water pump |
| 16 |
0387361 |
IMPELLER & PIN ASSY |
| 17 |
0318178 |
SCREW, Clamp |
| 18 |
0333513 |
DRIVE IN, Propeller This part replaces 0326032. |
| 19 |
0125990 |
PROPELLER, 7 1/4 * 4, plastic (STD) This part replaces 0316557. |
| 20 |
0313693 |
COTTER PIN |
| 21 |
0313382 |
DRIVEHSAFT, std. |
| 21 |
0315216 |
DRIVESHAFT, Long |
| 22 |
0316559 |
CLUTCH HUB, Prop |
| 23 |
0315471 |
BUSHING,Propeller clutch |
| 24 |
0321124 |
PLATE, Water pump |
| 25 |
0321128 |
CUP, Impeller body |
| 26 |
0315225 |
SCREW, Clamp 5" LONGER PARTS |
| 27 |
0305940 |
WASHER |
| 33 |
0313494 |
GASKET CYL TO EXHAUST HSG |
| 34 |
0310819 |
FLAT HEAD SCREWS |
| 35 |
0310820 |
TRANSOM PLATE 5" EXTENSION KIT |
| 36 |
0315218 |
WATER TUBE, Long 5" LONGER PARTS |
| 37 |
0315224 |
CLAMP, Stern bracket 5" LONGER PARTS |
| 0386021 |
0386021 |
EXTENSION KIT - 5 in. |
| 0389037 |
0389037 |
GEARCASE ASSY., Complete |
