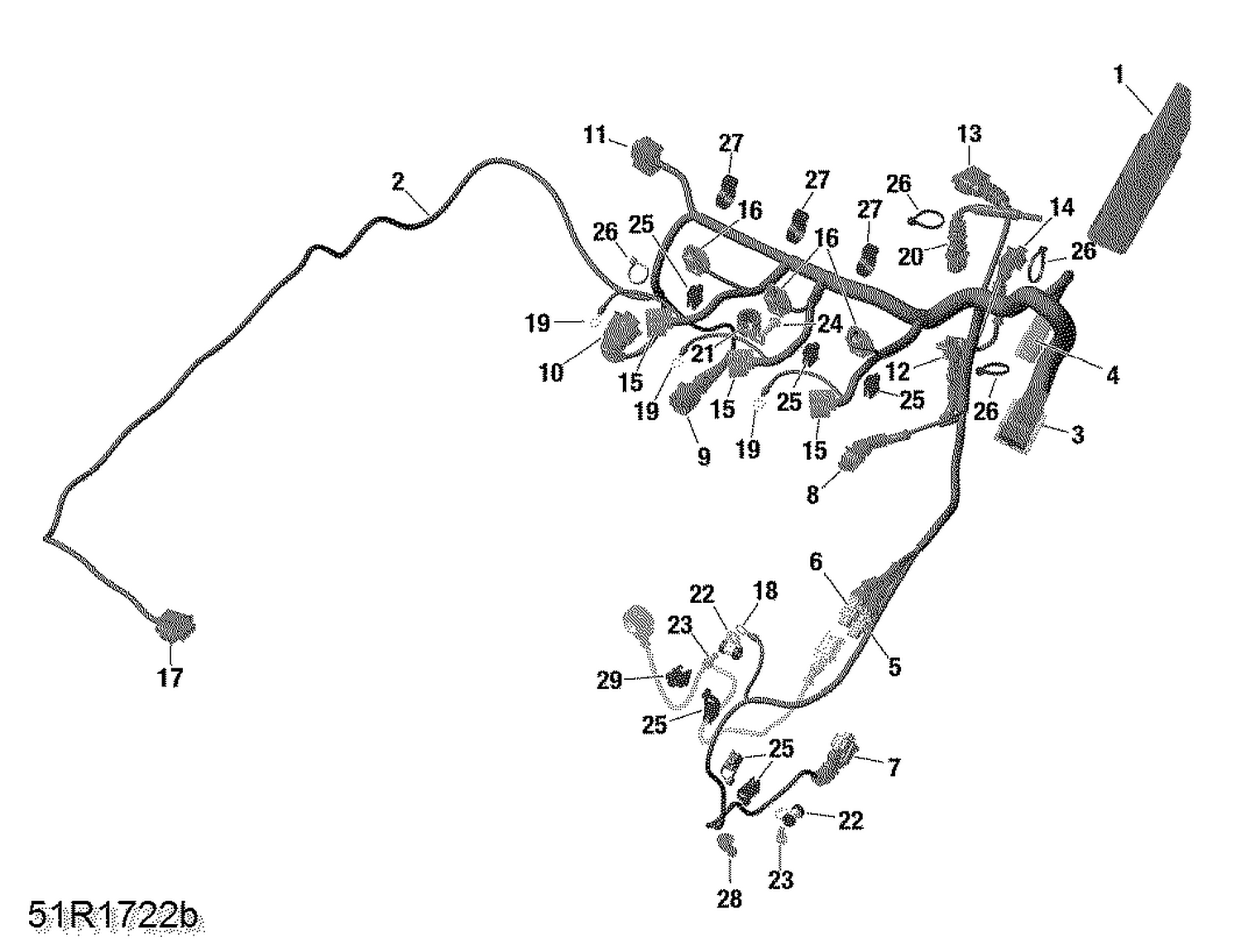

10- Engine Harness and Electronic Module - SM6
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 3 | Not | Available As Spare Part - Connector ECU |
| 4 | 710001539 | Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 5 | 278001005 | Male Housing, 2 Circuits |
| 6 | 278001005 | Male Housing, 2 Circuits |
| 7 | 278001830 | Housing Connector, 3 Circuits |
| 8 | 278001005 | Male Housing, 2 Circuits |
| 9 | 710001184 | Housing |
| 10 | 278001830 | Housing Connector, 3 Circuits |
| 11 | 710003731 | Housing This part replaces 710001872. |
| 12 | 415128500 | Female Terminal Housing, 2 Circuits |
| 13 | 515176410 | Male Connector |
| 14 | Not | Available As Spare Part - Connector EVAP |
| 15 | 710002516 | Connector 3 Positions |
| 16 | 515176129 | Female Housing |
| 17 | 515176410 | Male Connector |
| 18 | Not | Available As Spare Part - Connector GND |
| 19 | 414176000 | Open Clamp This part replaces 420853412. |
| 20 | 420853414 | Clamp |
| 21 | 420440147 | Hex. Flange Screw M6 X 12 |
| 22 | 420641588 | Torx Flange Screw M6 X 16 |
| 23 | 420951650 | Cable Clamp 150mm |
| 24 | 420866714 | Tie Rap |
| 25 | 420851493 | Cable Clamp |
| 26 | 420866716 | Tie-Rap |
