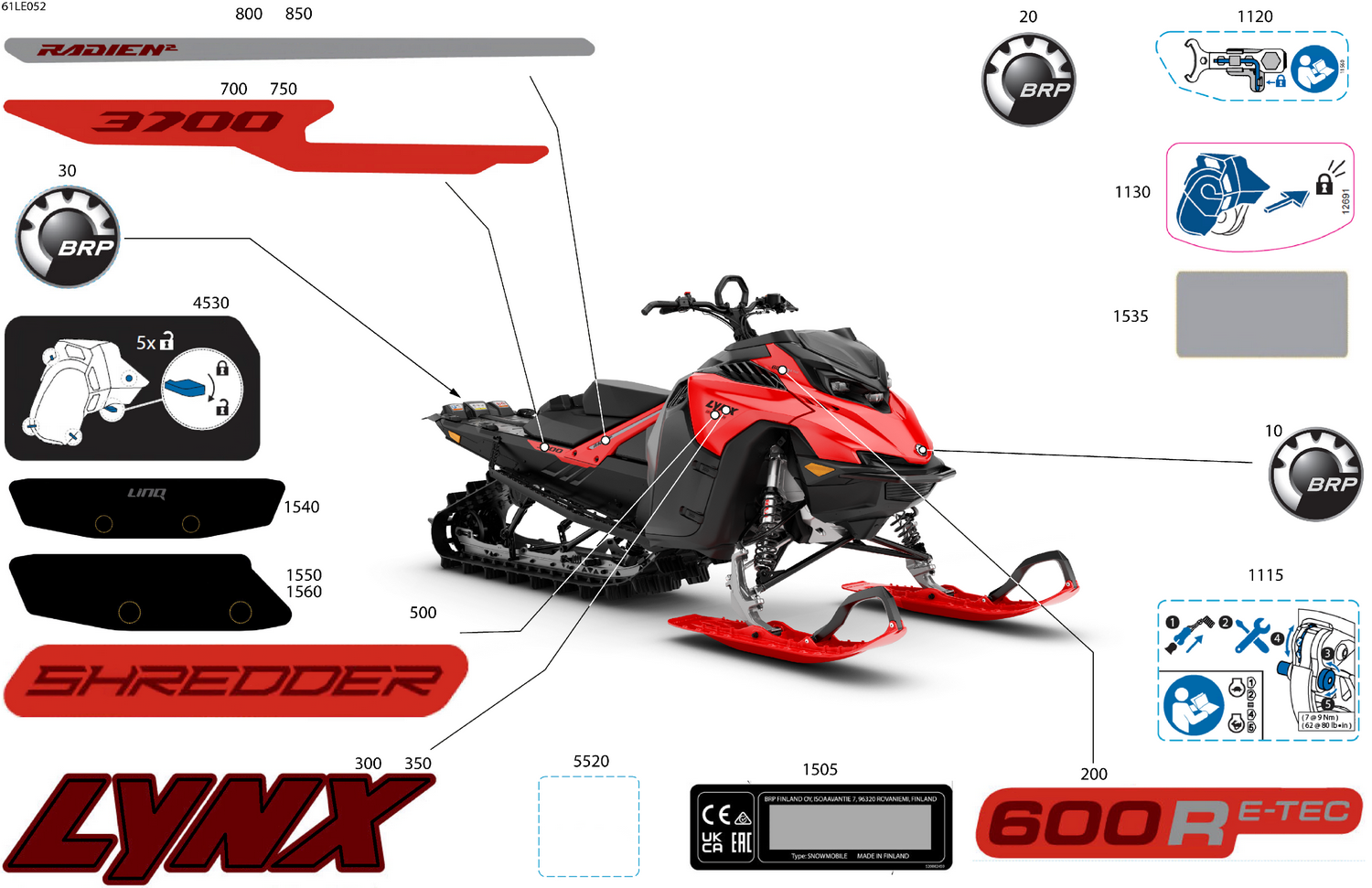

07- Body - Decals
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909040 | Emblem BRP Logo 48 MM UV |
| 20 | 704910024 | Emblem BRP Logo 20 Mm UV |
| 30 | 704909039 | Emblem BRP Logo 35 MM UV |
| 200 | 516012642 | Decal 600R E-Tec Engine |
| 300 | 516012647 | Chili Red, Ident LH Decal Lynx Logo |
| 350 | 516012648 | Chili Red, Ident RH Decal Lynx Logo |
| 500 | 516012651 | LH/RH Panel Decal |
| 700 | 516012653 | LH Middle Tunnel Decal |
| 750 | 516012654 | RH Middle Tunnel Decal |
| 800 | 516012413 | LH Cross Member Decal |
| 850 | 516012414 | RH Cross Member Decal |
| 1115 | 516011437 | Ramp Instruction Label |
| 1120 | 516011560 | Tool Instruction Label |
| 1130 | 516012691 | Lock Label |
| 1505 | 520002459 | Conformity Decal CE UK CA EAC RCM |
| 1535 | 516009954 | Protective Decal |
| 1540 | 516011681 | Decal Q-Link |
| 1550 | 516011685 | LH Decal Q-Link |
| 1560 | 516011684 | RH Decal Q-Link |
| 4530 | 516012715 | Latch Label |
