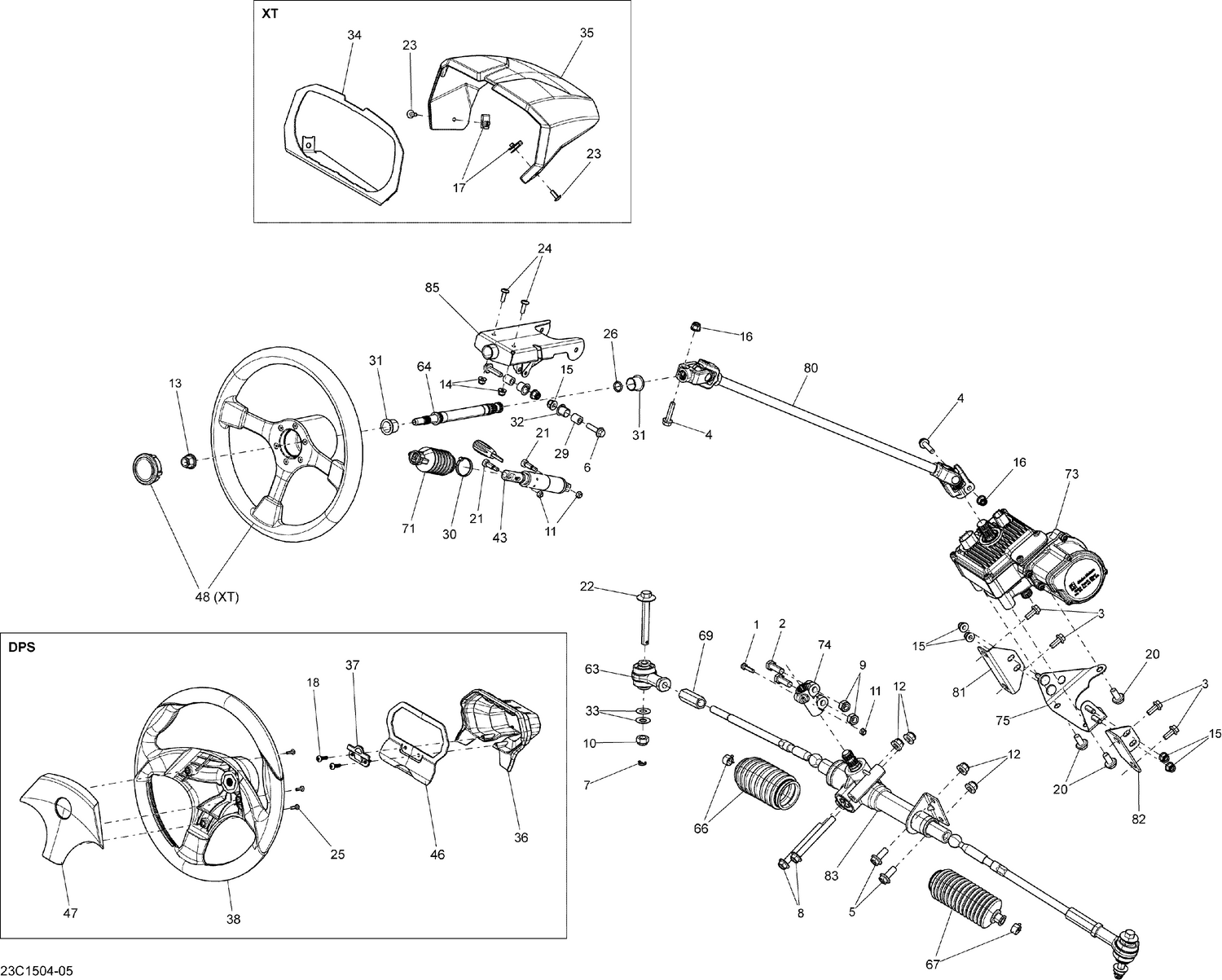

07- Steering _23C1505
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207063044 | Hex. Screw M6 X 30 |
| 2 | 207103586 | Hex. Screw M10 X 35 |
| 3 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 5 | 207602546 | Hex. Flange Screw M10 X 25 |
| 6 | 207683044 | Hex. Flange Screw M8 X 30 |
| 7 | 211400017 | Cotter Pin |
| 8 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 9 | 232500416 | Elastic Stop Nut M10 |
| 10 | 232521416 | Elastic Stop Nut M12 |
| 11 | 232561434 | Elastic Stop Nut M6 |
| 12 | 233201436 | Hex. Flange Elastic Nut M10 |
| 13 | 233221414 | Hex. Flange Elastic Nut M12 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 233281414 | Hex. Flange Elastic Nut M8 |
| 16 | 233281416 | Hex. Elastic Flange Nut M8 |
| 17 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 18 | XXX | Not Available As Spare Parts |
| 20 | 250001134 | Hex. Flange Screw M10 X 20 This part replaces 250000601. |
| 21 | 250000669 | Socket Head Screw M8 X 16 |
| 22 | 250000657 | Hexagonal Screw M12 X 88 |
| 23 | 250000721 | Torx Truss Screw M6 X 16 |
| 24 | 250000722 | Torx Screw M6 X 20 |
| 25 | XXX | Not Available As Spare Parts |
| 26 | 293300144 | O-Ring |
| 29 | 293900106 | Bushing |
| 30 | 414115200 | Tie-Rap 180 mm |
| 31 | 709402725 | Steering Bushing This part replaces 415108000. |
| 32 | 705600799 | Bushing |
| 33 | 706200281 | Hardened Washer This part replaces 250200086. |
| 34 | 707900013 | Cluster Support |
| 35 | 707900124 | Upper Cluster Cover |
| 36 | XXX | Not Available As Spare Parts |
| 37 | XXX | Not Available As Spare Parts |
| 38 | XXX | Not Available As Spare Parts |
| 43 | 709402506 | Adjustment Cylinder This part replaces 709400656. |
| 46 | XXX | Not Available As Spare Parts |
| 47 | XXX | Not Available As Spare Parts |
| 48 | 715001134 | STEERING WHEEL KIT - Call your local BRP dealership |
| 63 | 709401134 | Ball Joint |
| 64 | 709401167 | Steering Shaft |
| 66 | 715900235 | Boot Kit, Pinion Side |
| 67 | 715900236 | Boot Kit, Tube Side |
| 69 | 715900237 | Nut Tie Rod End |
| 71 | 709401232 | Boot Tube Side |
| 73 | 709401406 | Power Steering |
| 74 | 709401294 | COUPLING - Call your local BRP dealership |
| 75 | 709401296 | SUPPORT - Call your local BRP dealership |
| 80 | 709401326 | STEERING COLUMN - Call your local BRP dealership |
| 81 | 709401336 | LH DPS SUPPORT - Call your local BRP dealership |
| 82 | 709401337 | RH DPS SUPPORT - Call your local BRP dealership |
| 83 | 709401390 | Rack And Pinion Steering |
