07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (52)

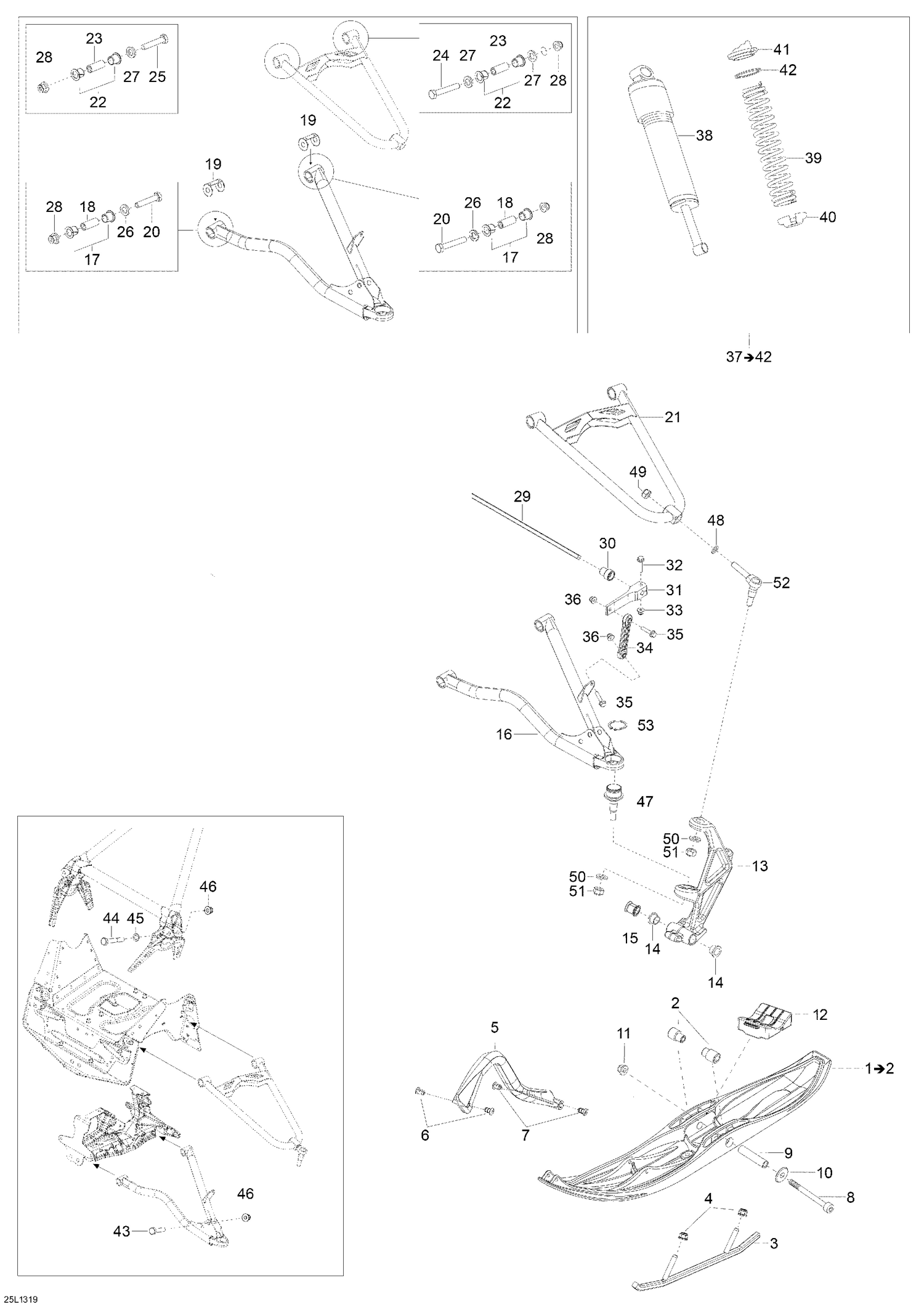

RefPart NumberDescription
2 605348392 Bushing
3 860202822 Round Carbide Runner Kit This part replaces 605352643.
4 233201414 Hex. Flanged Elastic Nut M10
5 505072102 Handle (White)
6 505071812 Retainer 17mm long
7 505072133 Retainer 23mm Long
8 40225 Hex. Cap Screw M10 x 140
9 506133300 Spacer
10 732900049 Washer
11 233201414 Hex. Flanged Elastic Nut M10
12 505073149 RUBBER DAMPER - Call your local BRP dealership
13 505073011 Ski Leg LH
13 505073012 Ski Leg RH
14 505072690 Leg Bushing
15 505071999 Spacer
16 505073225 Lower Arm RH
16 505073226 Lower Arm LH
17 503191766 Cushion
18 505072401 Aluminum Bushing
19 505072634 Wear Plate
20 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
21 505072832 Upper Arm
22 505072250 Bushing
23 505072143 Bushing
24 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
25 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
26 503189564 Washer
27 505072392 Washer
28 250100165 Hex. Flanged Elastic Nut M10 This part replaces 250100088.
29 505072602 Stabilisator
30 505072064 Bushing
31 505072394 Stabilisator Lever
32 207663046 Hex. Flange Screw M6 X 30
33 233261416 Elastic Flanged Nut M6 X 1.0
34 505072204 Sway Bar Double Joint Link
35 207663046 Hex. Flange Screw M6 X 30
36 233261416 Elastic Flanged Nut M6 X 1.0
38 505072835 Front Shock
39 503192286 Spring
40 706200881 Spring Stopper
41 505073625 Adjustment Cam This part replaces 505070150.
42 503191872 Spring Guide
43 207005544 Hex. Cap Screw M10 x 55
44 207006544 Hex. Cap Screw M10 x 65
45 503189564 Washer
46 233201414 Hex. Flanged Elastic Nut M10
47 505073636 Ball Joint This part replaces 505072682.
48 503189276 Washer
49 250100089 Nut M12
50 234021410 Flat Washer
51 250100089 Nut M12
52 505072257 Upper Ball Joint
