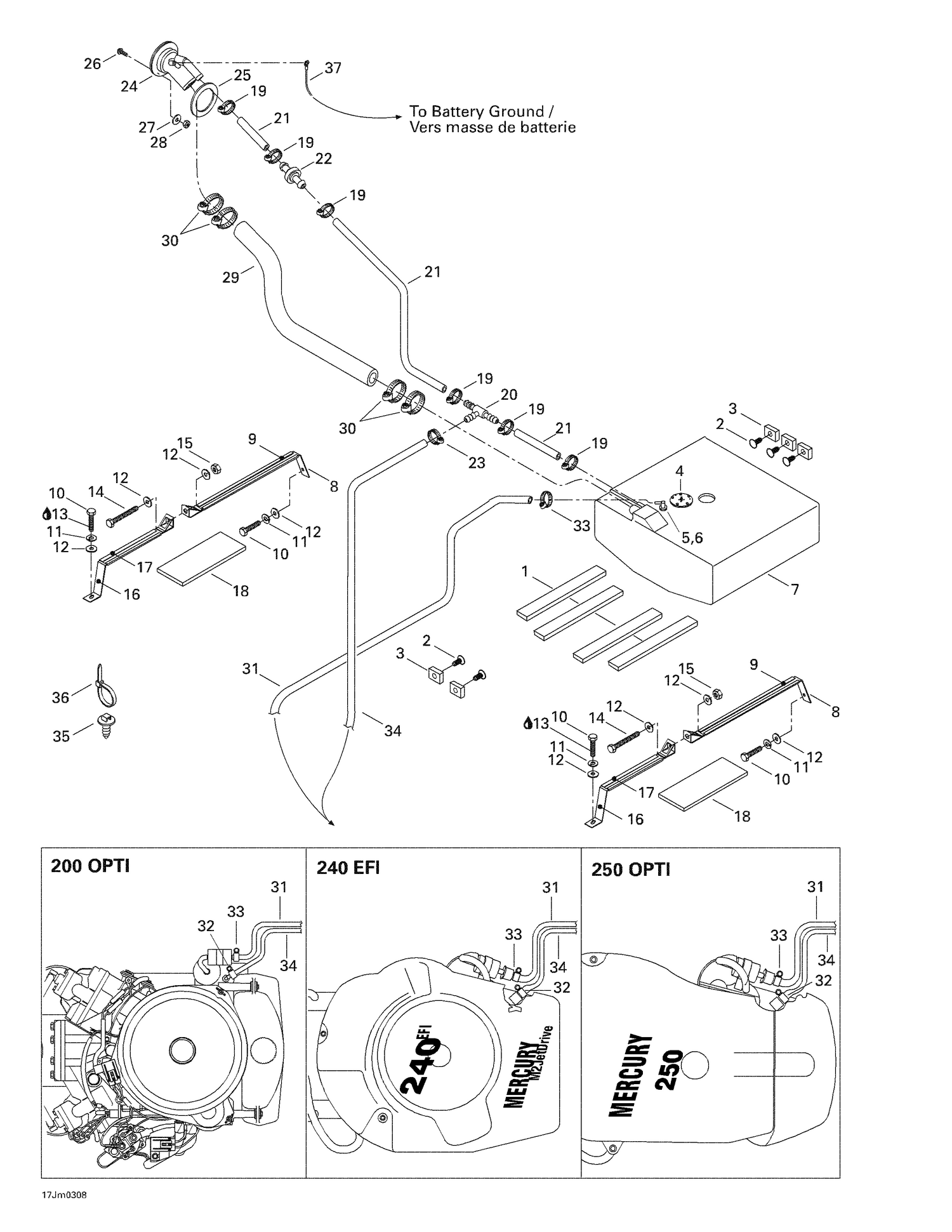

| Ref | Part Number | Description |
|---|
| 1 |
204560115 |
PROTECTOR PAD - Call your local BRP dealership |
| 2 |
293730006 |
Black, Dart |
| 3 |
204060684 |
RUBBER PAD - Call your local BRP dealership |
| 4 |
204560217 |
Fuel Level Sensor |
| 5 |
204560218 |
Rigid Pick-Up Tub |
| 6 |
204560219 |
Anti-Siphon Valve |
| 7 |
204560220 |
Fuel Tank |
| 8 |
204560181 |
FUEL TANK STRAP - Call your local BRP dealership |
| 9 |
204560185 |
PROTECTOR PAD - Call your local BRP dealership |
| 10 |
207183060 |
Hex. Screw M8 X 30 |
| 11 |
234181601 |
Lock Washer 8 mm, Stainless |
| 12 |
234082600 |
Flat Washer 8 mm, Stainless |
| 13 |
293800005 |
Loctite 271, 10 ml |
| 14 |
207188060 |
HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 15 |
232581600 |
Hex. Elastic Nut M8 |
| 16 |
204560184 |
Fuel Tank Strap |
| 17 |
204560186 |
Protector Pad |
| 18 |
204560191 |
NEOPRENE PAD - Call your local BRP dealership |
| 19 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 20 |
204560038 |
T-Fitting |
| 21 |
204560358 |
HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 22 |
204560101 |
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 23 |
293650121 |
NORMA CLAMP - Call your local BRP dealership |
| 24 |
204560182 |
FILLER NECK - Call your local BRP dealership |
| 25 |
204560188 |
SPACER - Call your local BRP dealership |
| 26 |
208643560 |
Phillips Screw M4 X 35 |
| 27 |
234040600 |
Flat Washer 4 mm |
| 28 |
232541600 |
Elastic Stop Nut M4 |
| 29 |
204560134 |
Filler Neck Hose |
| 30 |
293650077 |
Norma Clamp This part replaces 293650078. |
| 31 |
204560177 |
Hose 5/16”, Meter |
| 32 |
293650121 |
NORMA CLAMP - Call your local BRP dealership |
| 33 |
293650070 |
NORMA CLAMP - Call your local BRP dealership |
| 34 |
204560178 |
HOSE 1/4 - Call your local BRP dealership |
| 35 |
293730040 |
Mount Dart This part replaces 293730018. |
| 36 |
414115200 |
Tie-Rap 180 mm |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
