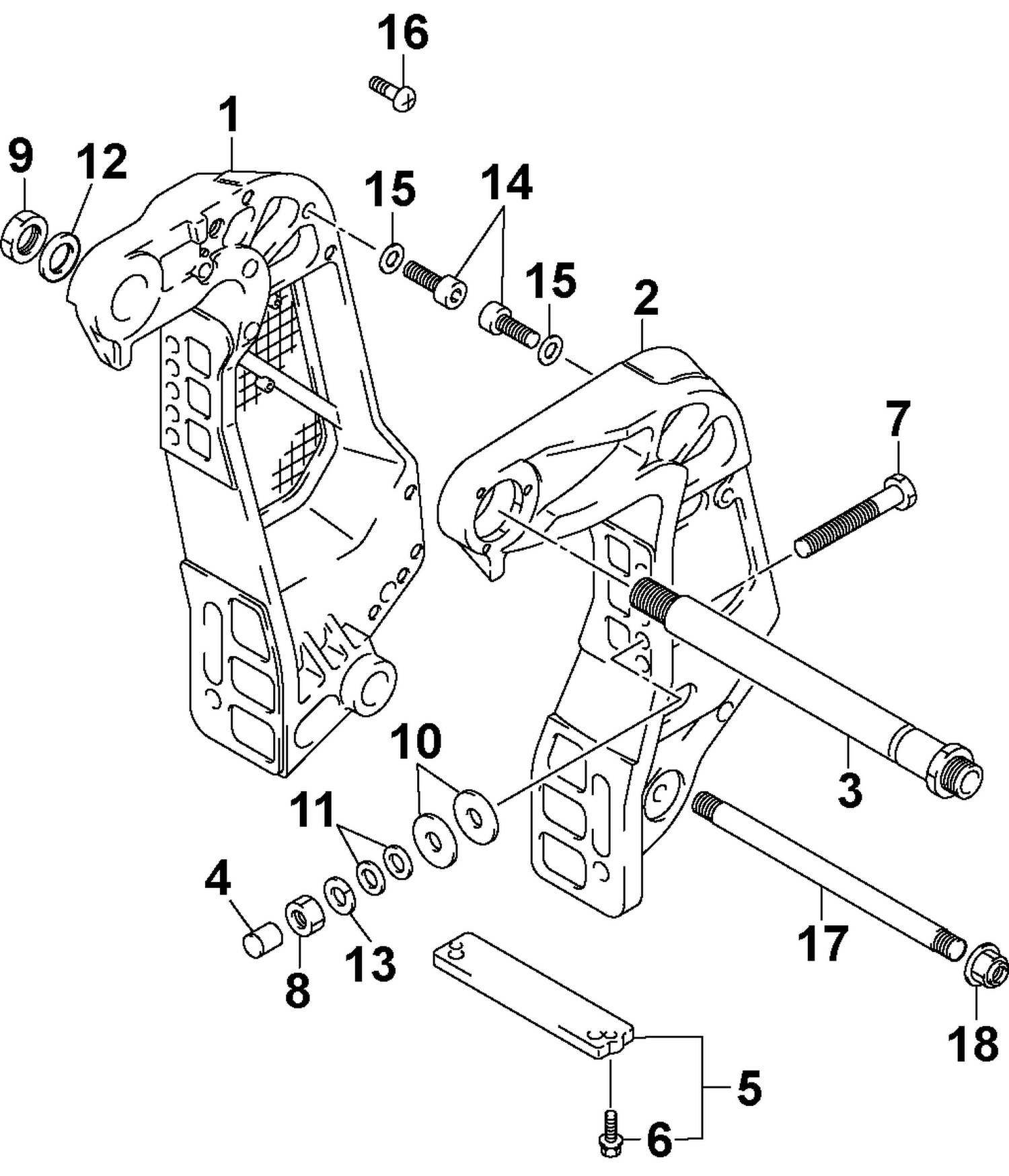

STERN BRACKETS
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032856 | BRACKET, CLAMP STBD |
| 2 | 5032857 | BRACKET, CLAMP PORT |
| 3 | 5034152 | SHAFT, CLAMP BRACKET |
| 4 | 5030839 | CAP, TRANSOM BOLT |
| 5 | 5030907 | ANODE |
| 7 | 5036599 | Bolt This part replaces 5030386. |
| 8 | 5030418 | NUT |
| 10 | 5030436 | WASHER |
| 12 | 5031846 | WASHER |
| 13 | 5030462 | RONDELLE GROWER |
| 14 | 5030388 | BOLT |
| 15 | 5030057 | WASHER |
| 16 | 5030409 | SCREW |
