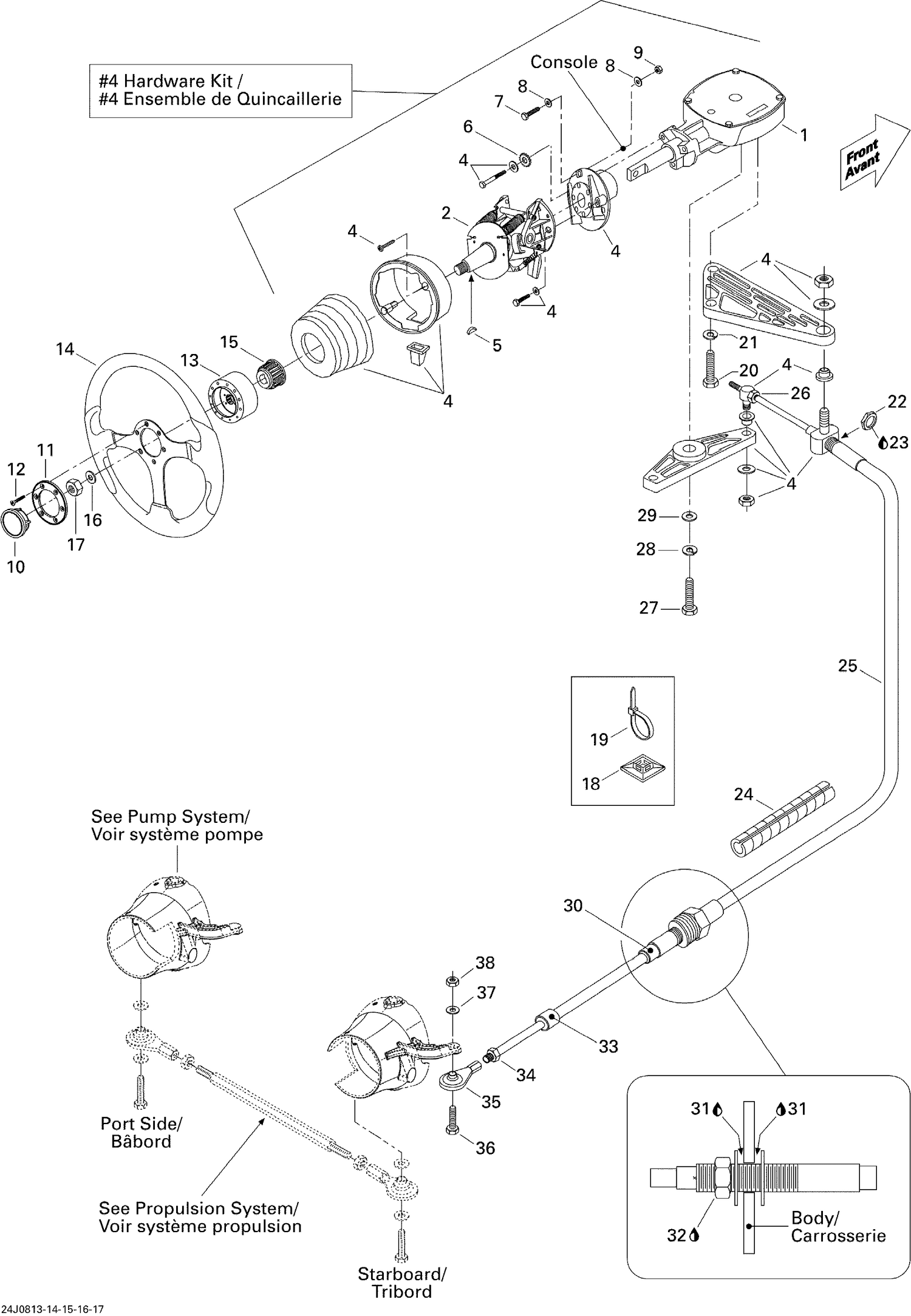

| Ref | Part Number | Description |
|---|
| 1 |
204390486 |
Helm |
| 2 |
204390529 |
TILT MECANISM ASS'Y - Call your local BRP dealership |
| 4 |
204390531 |
Hardware Kit |
| 5 |
277000384 |
WOODRUFF KEY - Call your local BRP dealership |
| 6 |
234481608 |
Serrated Lock Washer 8 mm |
| 7 |
207164060 |
Hex. Screw M6 X 40 |
| 8 |
234061600 |
Stainless Flat Washer M6 |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
204390327 |
Center Cap |
| 11 |
204390423 |
CENTER RING - Call your local BRP dealership |
| 12 |
204390329 |
SCREW PACK - Call your local BRP dealership |
| 13 |
204390443 |
Nylon Steering Hub |
| 14 |
204390462 |
Steering Wheel |
| 15 |
204390444 |
Steering Hub Insert |
| 16 |
211200006 |
FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 17 |
211100021 |
LOCK NUT 1/2-20 - Call your local BRP dealership |
| 18 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
| 19 |
293750001 |
Tie Wrap 94 mm |
| 20 |
211000050 |
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership |
| 21 |
211200025 |
Lock Washer 1/4” |
| 22 |
204390053 |
HEX. JAM NUT 5/8-18 - Call your local BRP dealership |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 24 |
204130176 |
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132. |
| 25 |
204390475 |
Steering Cable |
| 26 |
277000439 |
HEX. NUT 5/16-24 - Call your local BRP dealership |
| 27 |
211000054 |
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership |
| 28 |
211200025 |
Lock Washer 1/4” |
| 29 |
234062600 |
Flat Washer M6, Stainless |
| 30 |
277000440 |
SEAL SWIVEL - Call your local BRP dealership |
| 31 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 32 |
293800060 |
Loctite 243, 10 ml |
| 33 |
277000441 |
TERMINAL WIPER - Call your local BRP dealership |
| 34 |
277000439 |
HEX. NUT 5/16-24 - Call your local BRP dealership |
| 35 |
204120074 |
BALL JOINT - Call your local BRP dealership |
| 36 |
207063560 |
Hex. Screw M6 X 35 |
| 37 |
234061600 |
Stainless Flat Washer M6 |
