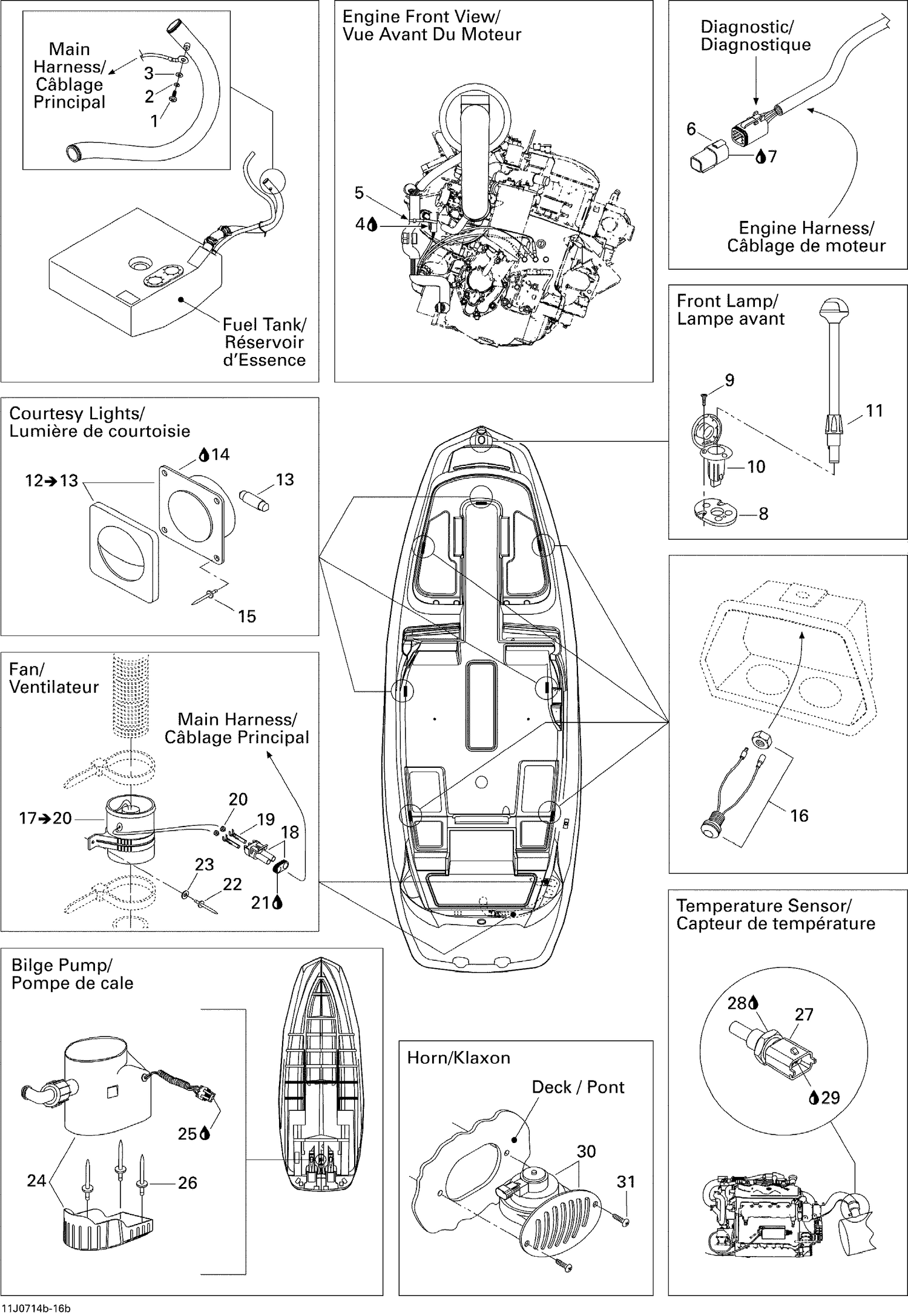

| Ref | Part Number | Description |
|---|
| 1 |
208640860 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 2 |
234141601 |
Lock Washer 4 mm |
| 3 |
234041600 |
Flat Washer 4 mm, Stainless |
| 4 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 5 |
414115200 |
Tie-Rap 180 mm |
| 6 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 7 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 8 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 9 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 10 |
204471217 |
Front Lamp Base |
| 11 |
204471218 |
Front Lamp Pole - Call your local BRP dealership |
| 13 |
204470081 |
BULB - Call your local BRP dealership |
| 14 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 15 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 16 |
204471169 |
LED Light Ass'y |
| 18 |
278000220 |
Male Connector, 2 Circuits |
| 19 |
278000223 |
Female Terminal |
| 20 |
278000218 |
Wire Seal |
| 21 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 22 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 23 |
234052600 |
Flat Washer 5 mm, Stainless |
| 24 |
278002977 |
PUMP BILGE 750 GPH replaced by RM-800 - Call your local BRP dealership This part replaces 204471202. |
| 25 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 26 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 27 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 29 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 30 |
204471160 |
Horn, Stainless |
