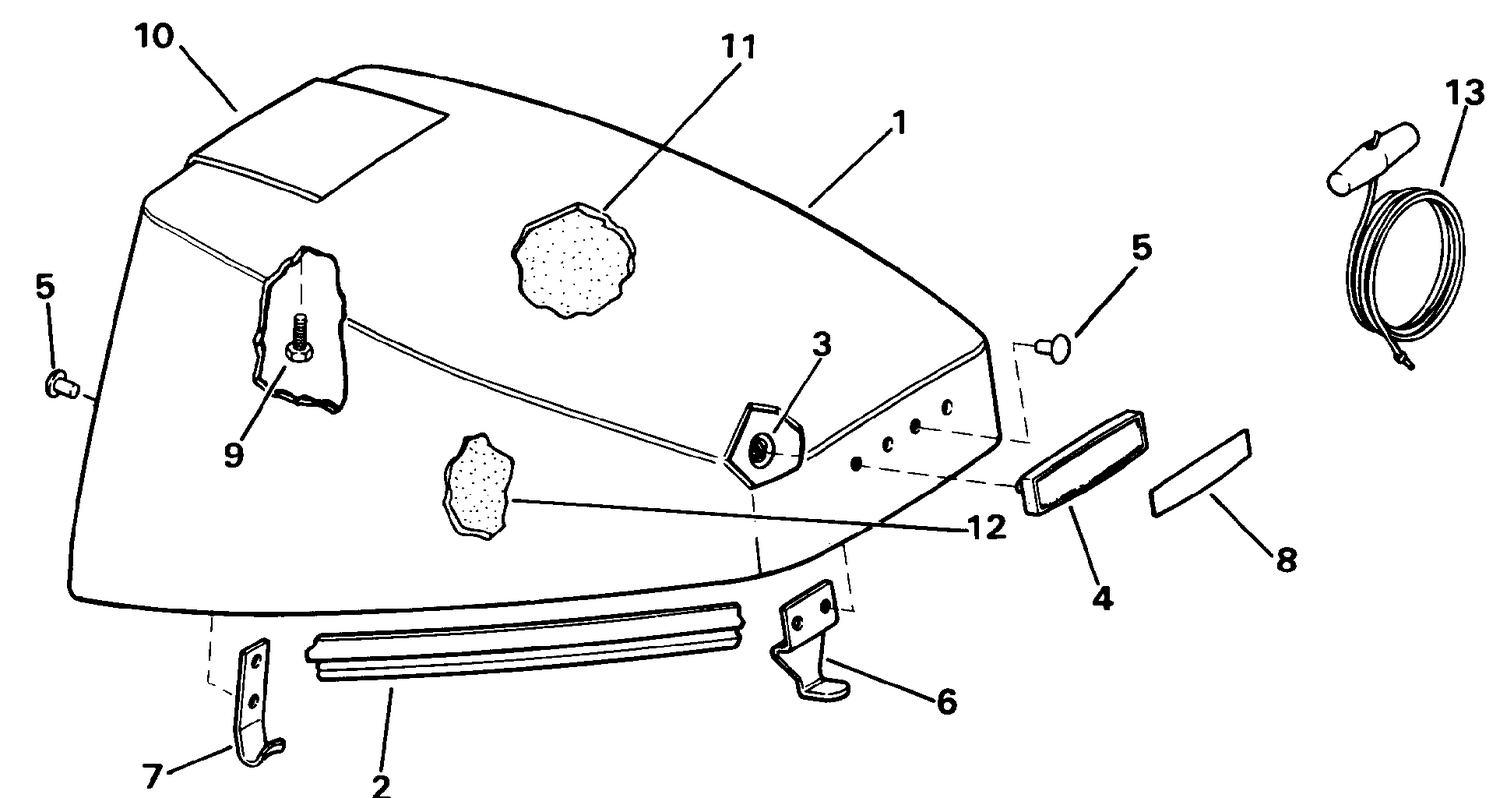

ENGINE COVER - JOHNSON
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0434553 | ENGINE COVER ASSY. |
| 1 | 0435145 | ENGINE COVER ASSY. |
| 1 | 0435146 | ENGINE COVER ASSY. |
| 1 | 0435147 | ENGINE COVER ASSY. |
| 2 | 0331867 | SEAL Engine cover |
| 4 | 0331907 | APPLIQUE, Front |
| 4 | 0334864 | FRAME, Front |
| 5 | 0318836 | RIVET |
| 6 | 0396886 | HOOK, Front (Includes No. 5) |
| 7 | 0391124 | HOOK, Rear |
| 8 | 0335055 | PLATE, Applique, front |
| 8 | 0337596 | PLATE, Applique, front |
| 8 | 0337600 | PLATE, Frame, front |
| 10 | 0331134 | TILT HANDLE |
| 11 | 0335597 | SOUND BLANKET, Top |
| 12 | 0335598 | SOUND BLANKET, Side |
| 13 | 0433824 | STARTER ROPE |
| 0211772 | 0211772 | OPERATOR'S MANUAL |
| 0211773 | 0211773 | OPERATOR'S MANUAL |
| 0211777 | 0211777 | OPERATOR'S MANUAL |
| 0211944 | 0211944 | OPERATOR'S MANUAL |
| 0211945 | 0211945 | OPERATOR'S MANUAL |
| 0434613 | 0434613 | DECAL SET |
| 0435612 | 0435612 | DECAL SET |
| 0435614 | 0435614 | DECAL SET |
