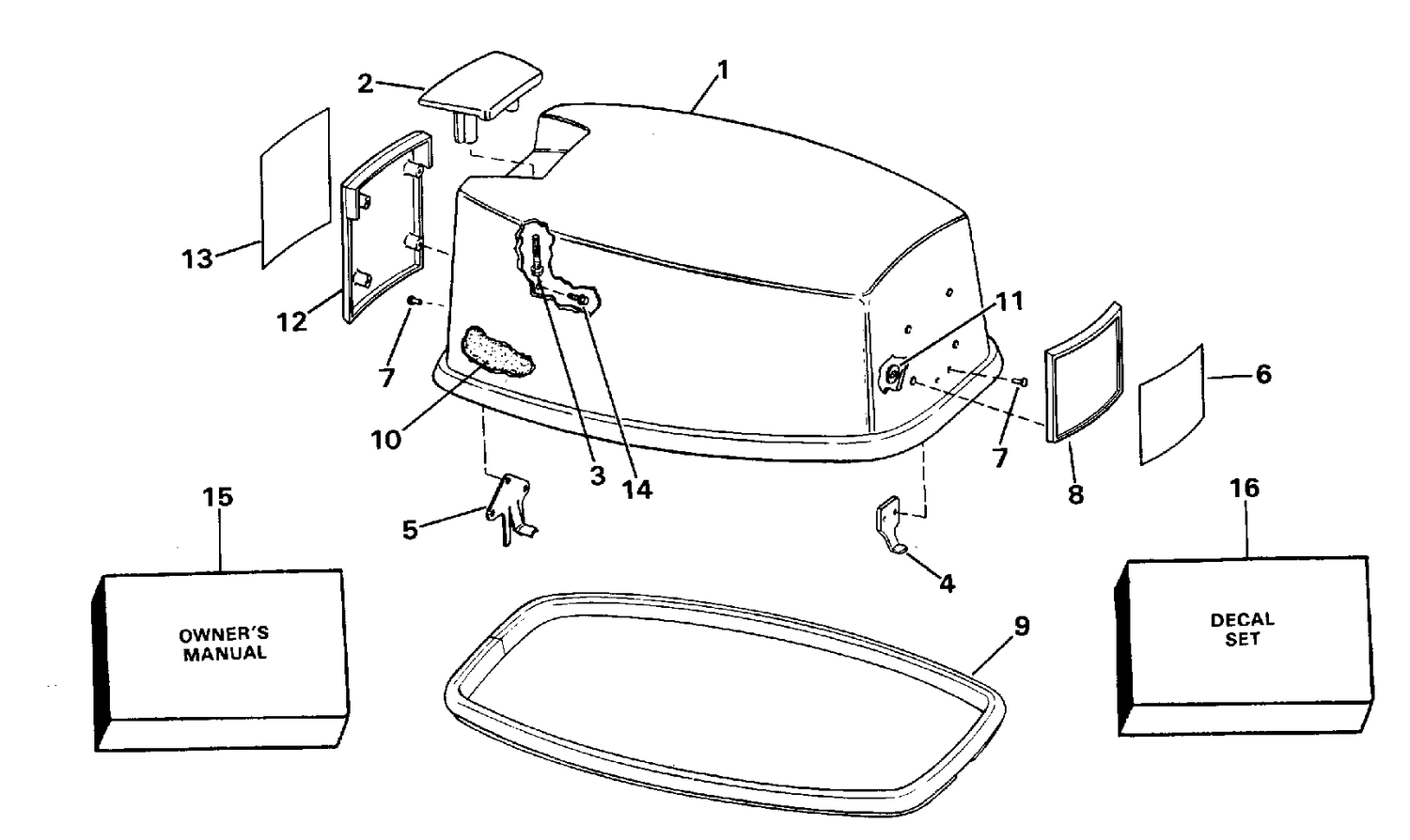

ENGINE COVER - JOHNSON
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0432410 | ENGINE COVER ASSY. |
| 1 | 0432412 | ENGINE COVER ASSY. |
| 4 | 0320400 | HOOK, Engine cover |
| 6 | 0334484 | PLATE, Frame, front, 25 |
| 6 | 0334487 | PLATE, Frame, front, 30 |
| 8 | 0331434 | APPLIQUE |
| 10 | 0334603 | SOUND BLANKET Top |
| 10 | 0334604 | SOUND BLANKET, Front |
| 10 | 0334605 | SOUND BLANKET, Front |
| 10 | 0334606 | SOUND BLANKET, Stbd |
| 12 | 0334529 | FRAME, Rear |
| 13 | 0334483 | DECAL, Owner's attention |
| 13 | 0334488 | PLATE, Frame, front, 30 |
| 15 | 0432035 | OWNER'S MANUAL |
| 16 | 0433644 | DECAL SET This part replaces 0433107. |
