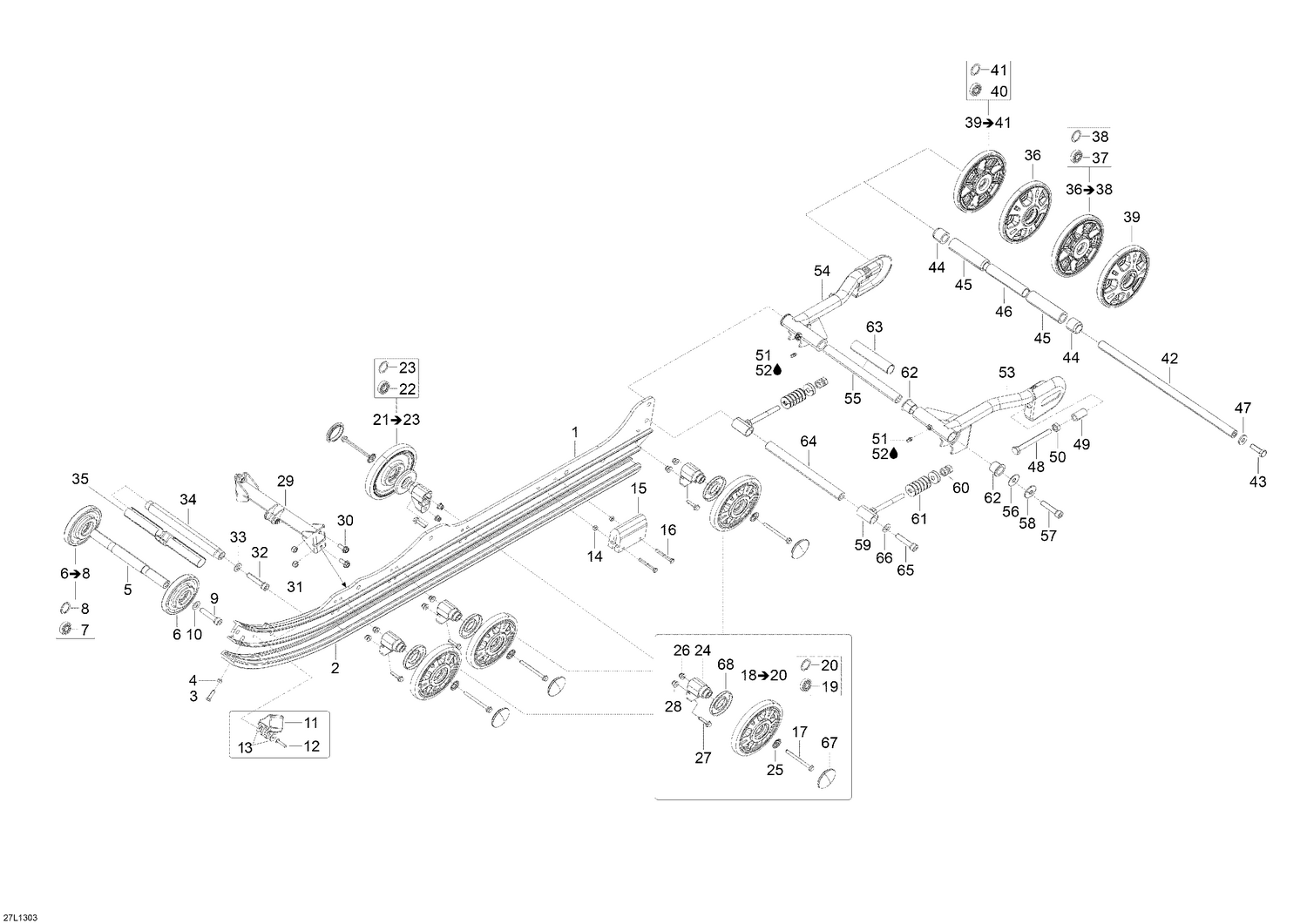

08- Rear Suspension
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192888 | Runner PPS 500 |
| 2 | 503192843 | Slider Shoe |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 5 | 503192889 | Front Wheel Shaft |
| 7 | 503190396 | Ball Bearing |
| 8 | Not | Available As Spare Part - Circlip |
| 9 | 205504544 | Socket Screw |
| 10 | 234001410 | Flat Washer 10 mm |
| 11 | 503192106 | Rubber Stopper |
| 12 | 293150142 | Rivet |
| 13 | 503191273 | Washer |
| 14 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 15 | 570023100 | Rubber Stopper |
| 16 | 207664544 | Hex. Flange Screw M6 X 45 |
| 17 | 250001027 | Hex. Flanged Screw M6 X 70 This part replaces 250000475. |
| 19 | 503190396 | Ball Bearing |
| 20 | Not | Available As Spare Part - Circlip |
| 22 | 503190396 | Ball Bearing |
| 23 | 415129371 | Retaining Ring |
| 24 | 503193894 | Casted Support This part replaces 503193082. |
| 25 | 503191820 | Wheel Cup M6 |
| 26 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 27 | 250000522 | Hex. Flange Screw M6 X 25 |
| 28 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 29 | 503192739 | Lower Support, Center Shock |
| 30 | 207602587 | Hex. Flange Screw M10 x 25 |
| 31 | 232500416 | Elastic Stop Nut M10 |
| 32 | 205504544 | Socket Screw |
| 33 | 234001410 | Flat Washer 10 mm |
| 34 | 503192927 | Shaft |
| 35 | 605355263 | Retainer For Stopper Strap |
| 37 | 503190396 | Ball Bearing |
| 38 | 415129371 | Retaining Ring |
| 40 | 503190396 | Ball Bearing |
| 41 | 415129371 | Retaining Ring |
| 42 | 503191408 | Rear Axle |
| 43 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 44 | 503192048 | Spacer |
| 45 | 503192671 | Spacer |
| 46 | 605448429 | Support Pipe |
| 47 | 503190439 | Washer |
| 48 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 49 | 503192696 | Spacer |
| 50 | 232006414 | Nut M10 |
| 51 | 408200700 | Grease Fitting |
| 52 | Not | Available As Spare Part - Synthetic Grease |
| 53 | 503194592 | LH Extension Swing This part replaces 503192088. |
| 54 | 503194593 | RH Extension Swing This part replaces 503192089. |
| 55 | 5347713 | Shaft |
| 56 | 20116 | Shim |
| 57 | 205504547 | Socket Screw M10 x 45 |
| 58 | 512056700 | Washer Lock |
| 59 | 503192695 | Adjustment Screw |
| 60 | 232006414 | Nut M10 |
| 61 | 25004 | Cup Spring |
| 62 | 31024 | Cushion |
| 63 | 605448429 | Support Pipe |
| 64 | 5347717 | Shaft |
| 65 | 205504547 | Socket Screw M10 x 45 |
| 66 | 234001410 | Flat Washer 10 mm |
| 67 | 503192771 | Black, Wheel Cap |
