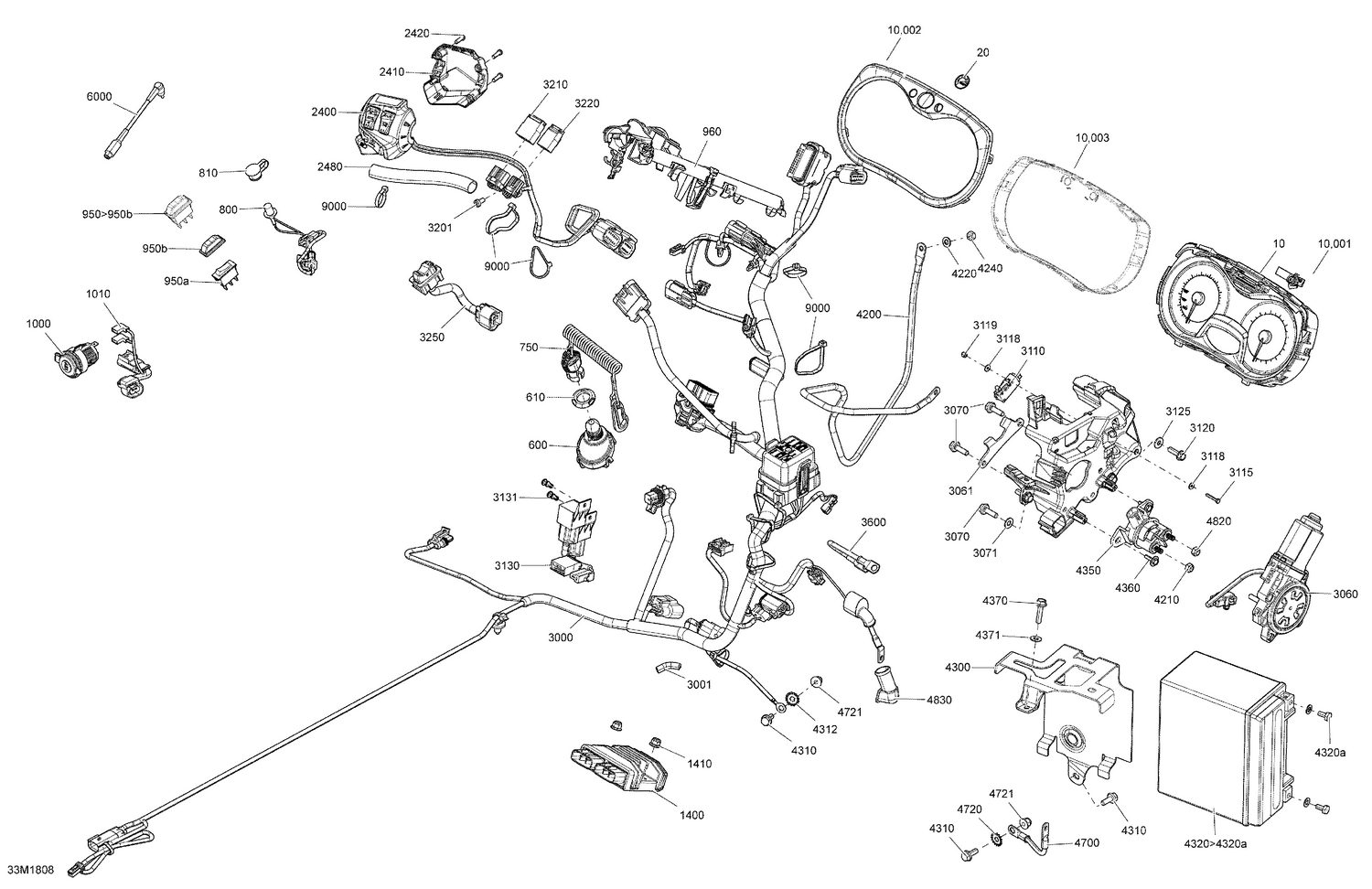

10- Electrical System Grand Touring - 900 ACE - Package LE
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 516006224 | BRP Logo 20MM x 2MM |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 750 | 515178287 | Green - RF Key Ass'y |
| 800 | 515177837 | Visor Harness |
| 810 | 572103300 | Cap |
| 960 | 515177134 | Connector Plate |
| 1000 | 710001248 | DC Outlet |
| 1010 | 515177400 | Câblage Prise 12 Volts |
| 1400 | 710001103 | Voltage Regulator |
| 1410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2400 | 515178197 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2480 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 3000 | 515177990 | Main Harness |
| 3001 | 219704354 | Trim 1000Mm Long |
| 3027 | 518325560 | Adhesive Patch |
| 3060 | 515178574 | Electrical Motor Ass'y |
| 3061 | 515177039 | PLATE - Call your local BRP dealership |
| 3070 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3071 | 224061121 | Flat Washer |
| 3110 | 515177460 | Switch Ass'y |
| 3115 | 207132044 | Hex Screw M3 X 20 |
| 3118 | 234032600 | Flat Washer M3, Stainless |
| 3119 | 232531423 | Elastic Stop Nut M3 |
| 3120 | 210262040 | Hex. Flange Screw M6 X 20 |
| 3125 | 250200039 | Flat Washer |
| 3130 | 515177350 | Reverse Harness |
| 3131 | 515177929 | Rivet |
| 3201 | 250000690 | Pan Screw Forming, 7500C |
| 3210 | 515175662 | Male Terminal Housing, 6 Circuits |
| 3220 | 515175846 | Male Terminal Housing, 4 Circuits |
| 3250 | 515177394 | Switch |
| 3600 | 515177014 | Ground Wire |
| 4200 | 515177427 | Battery Wire |
| 4210 | 232561434 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561434 | Elastic Stop Nut M6 |
| 4300 | 515177348 | Battery Support |
| 4310 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4312 | 250200041 | Lock Washer Serrated M6 |
| 4350 | 278003012 | Starter Relay |
| 4360 | 250000725 | Screw M4 X 16 |
| 4370 | 250000793 | Hex. Flange Screw M6 X 25 |
| 4371 | 224061121 | Flat Washer |
| 4700 | 515176358 | Ground Wire |
| 4720 | 250200041 | Lock Washer Serrated M6 |
| 4721 | 232561434 | Elastic Stop Nut M6 |
| 4820 | 232561414 | Elastic Stop Nut M6 |
| 4830 | 710000495 | Protector Cap |
| 6000 | 515175851 | Extension |
| 9000 | 293750002 | Tie Wrap 142 mm |
| 9000 | 293750008 | Tie Wrap 368 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
