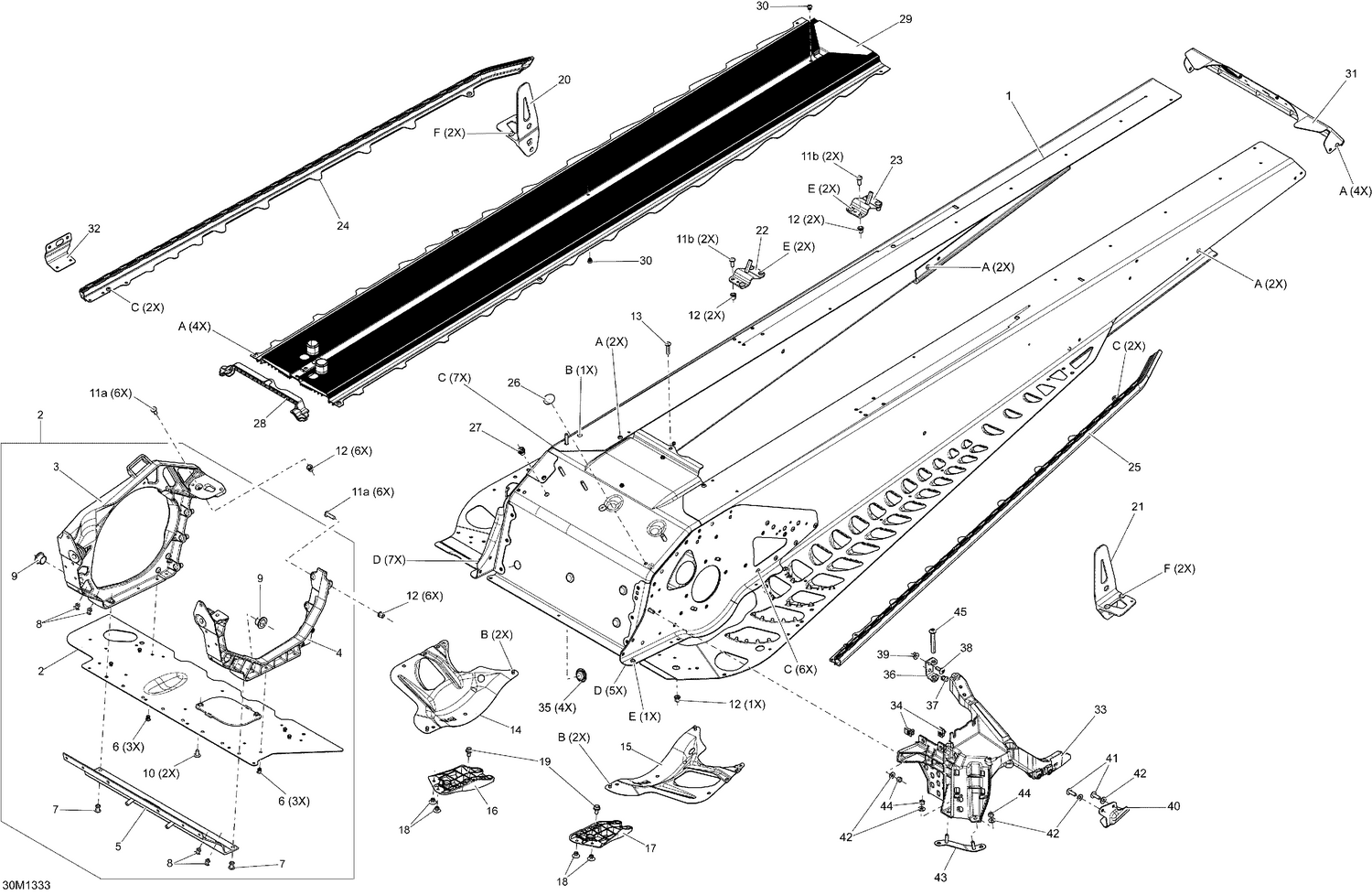

09- Frame — Parts Catalog

Parts (48)

Ref	Part Number	Description
A	390909200	Avex Rivet
B	390909100	Avex Rivet
C	293150144	Stavex Rivet
D	293150146	Henrob Rivet
E	293150174	Hemlock Rivet, 6.4 mm
3	518326328	RH Side Member
4	518326330	LH Side Member
5	518326198	Front Member
6	293150144	Stavex Rivet
7	293150120	Hemlock Rivet 6.5 mm
8	293150119	Hemlock Rivet, 6.5 mm
9	505073317	Leg Cushion
10	250000767	Torx Truss Screw M6 X 12 This part replaces 250000325.
11a	207662044	Hex. Flange Screw M6 X 20
11b	207661644	Hex. Flange Screw M6 X 16
12	233261414	Hex. Flange Elastic Nut M6 x 1.0
13	207662044	Hex. Flange Screw M6 X 20
14	518324874	RH Reinforcement
15	518324875	LH Reinforcement
16	518325782	RH Deflector, Black Polypropylene
17	518325783	LH Deflector, Black Polypropylene
18	293150104	Pop Rivet 3/16"
19	207561244	Hex. Flange Screw M6 X 12, Scotch Grip
20	518325955	RH SLIDE BRACKET - Call your local BRP dealership
21	518325956	LH Slide Bracket
22	518325973	RH Rear Base
23	518325974	LH Rear Base
24	518325159	RH ROLLER - Call your local BRP dealership
25	518325160	LH Roller
26	518325560	Adhesive Patch
27	293450275	Insert This part replaces 415107300.
28	518326656	Seal
30	293150144	Stavex Rivet
31	518327105	Rear Cap
32	518326482	RH Support
33	518326820	LH Stirup
34	250000958	Panel Nut M5 X 0.8 This part replaces 250000079.
35	293730052	Black, Plug
36	518326961	U-Attach
37	293150266	Ornit Rivet 6,5 X 14.5 This part replaces 293150147.
38	250000534	Tork Screw M6 X 16
39	233061414	Hex. Flange Nut M6
40	518326960	Support
41	250000536	Tork Screw M6 X 18
42	250200039	Flat Washer
43	518326986	Attach
44	232561414	Elastic Stop Nut M6
45	250000535	Torx Screw M8 X 55
