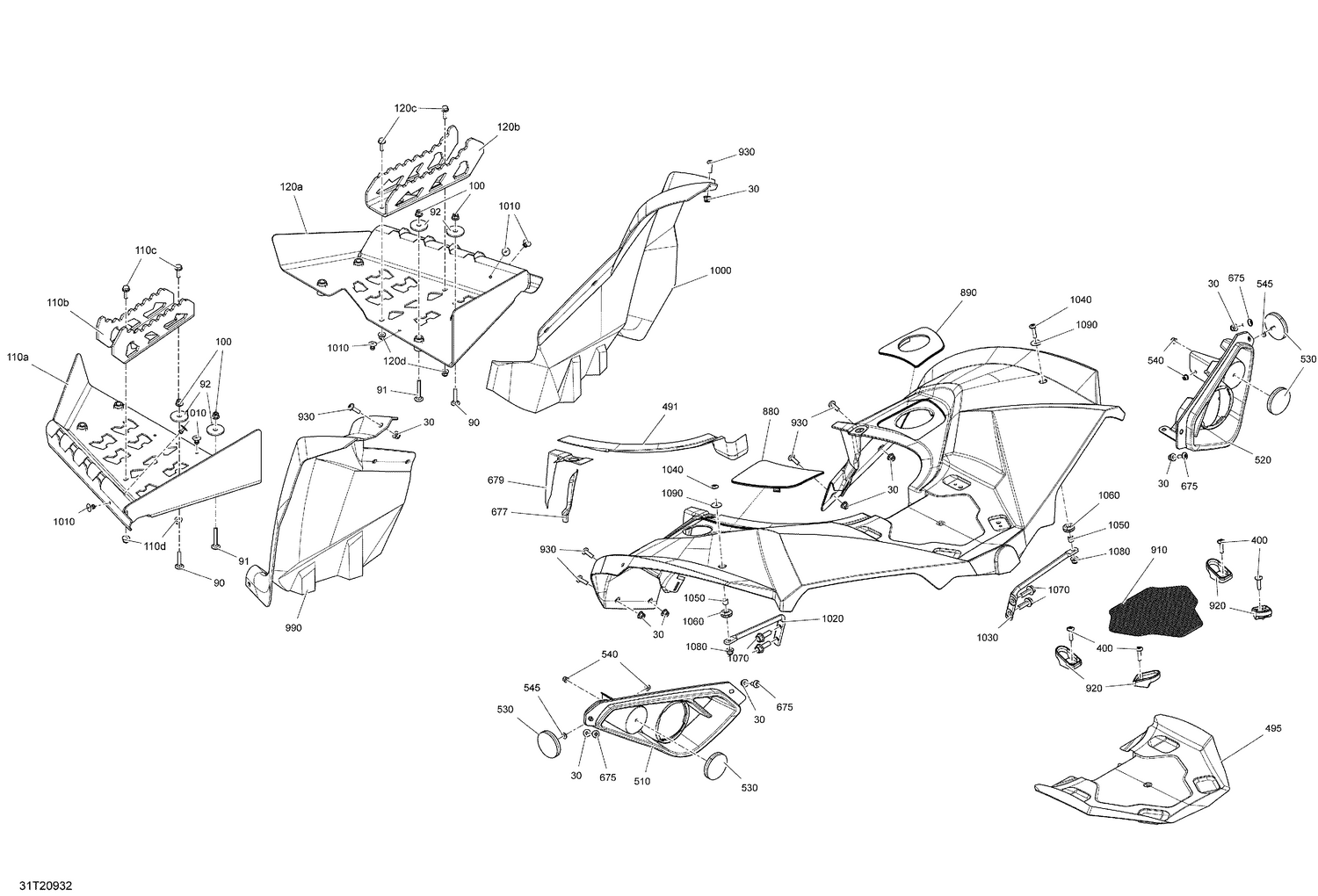

09- Body - Rear Section - Mineral Gray Satin

09- Body - Rear Section - Mineral Gray Satin

Parts (39)

RefPart NumberDescription
30 233261434 Flange Elastic Nut M6
90 207763554 Carriage Bolt M6 X 35
91 207764550 Carriage Bolt M6 X 45
92 250200158 Flat Washer M8
100 233261494 Hex. Flange Elastic Nut M6
110a 705016588 Deep Black, LH Footrest This part replaces 705010490.
110b 705010493 LH Foot Rest
110c 207662034 Hex. Flange Screw M6 X 20
110d 233261434 Flange Elastic Nut M6
120a 705017261 Deep Black, RH Footrest -SB This part replaces 705010494.
120b 705010499 RH Foot Rest
120c 207662034 Hex. Flange Screw M6 X 20
120d 233261434 Flange Elastic Nut M6
400 250000758 Torx Screw M6 X 25
491 705002451 Reflective Sheet
495 705005840 Reflective Sheet
510 705004731 LH Rear Facia
520 705004732 RH Rear Facia
530 705011221 Red Reflector
540 233251434 Flange Elastic Nut M5
545 517225900 Flat Washer
675 250000755 Torx Screw M6 X 16
677 705010557 Heat Shield
679 705010558 Heat Shield
880 705017923 LH Rear Body Panel Cap This part replaces 705001910.
890 705017924 RH Rear Body Panel Cap This part replaces 705002420.
910 705002343 Rear Carpet
920 705017925 Hook This part replaces 705002342.
930 250000712 Torx Screw M6 X 20
990 705009738 Mudguard
1000 705009739 Mudguard
1010 293150104 Pop Rivet 3/16"
1020 705010314 LH Fender Support
1030 705010315 RH Fender Support
1040 250000758 Torx Screw M6 X 25
1050 293900105 Bushing
1060 709000582 Grommet This part replaces 293720053.
1070 207582544 Hex. Flange Screw M8 X 25, Scotch Grip
1080 233261434 Flange Elastic Nut M6
