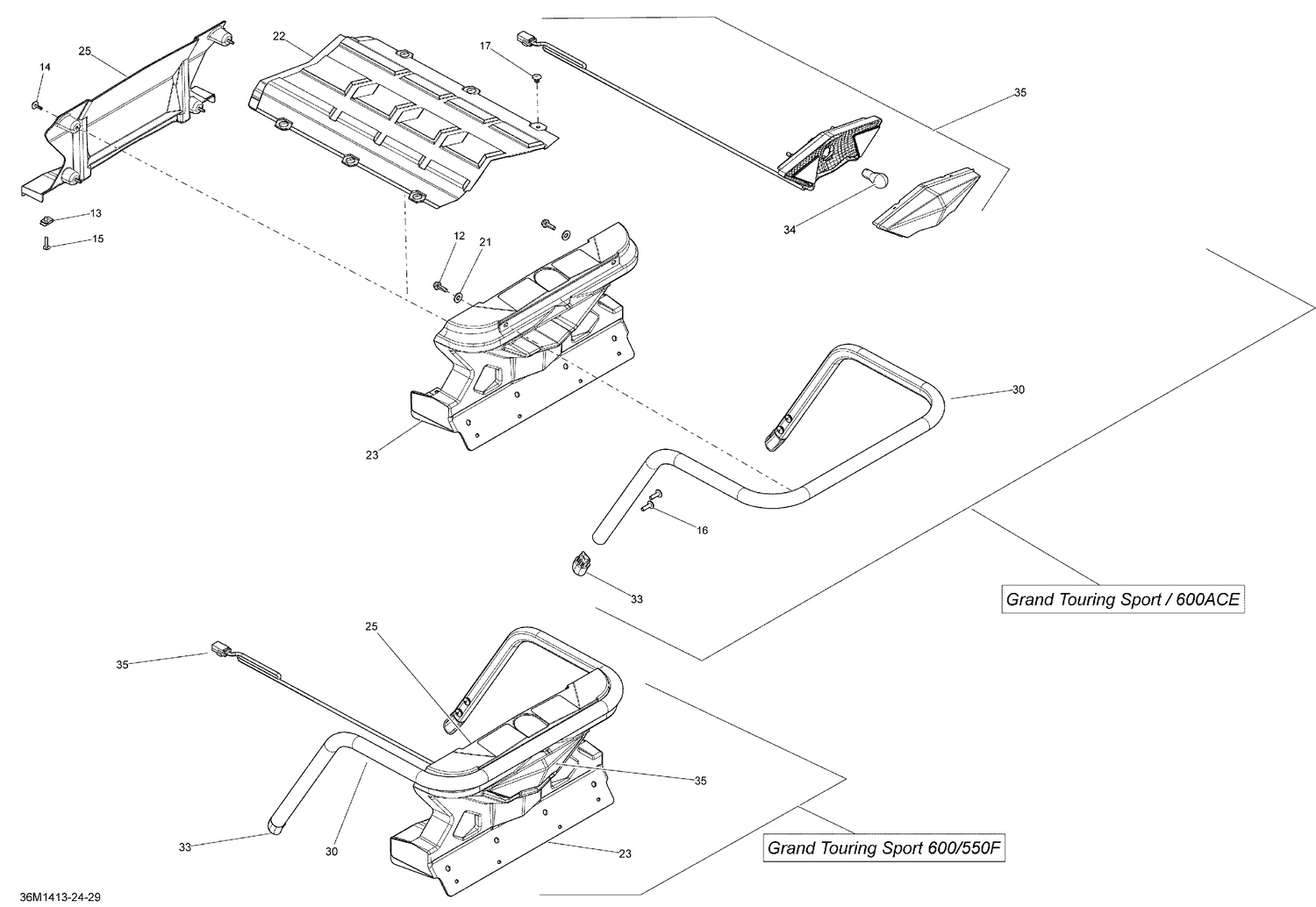

| Ref | Part Number | Description |
|---|
| 12 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 13 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 14 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 15 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 16 |
250000786 |
Torx Screw M6 X 20, Scotch Grip This part replaces 250000420. |
| 17 |
XXX |
Not Available As Spare Parts |
| 21 |
234062410 |
Flat Washer 6 mm |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
511000625 |
Rear Light Support |
| 25 |
511000701 |
Rear Cover Support |
| 30 |
511000707 |
Luggage Rack |
| 34 |
520000758 |
Bulb |
| 35 |
520000679 |
Rear Light Ass'y |
| 38 |
520000680 |
WIRING HARNESS ASS'Y - Call your local BRP dealership |
