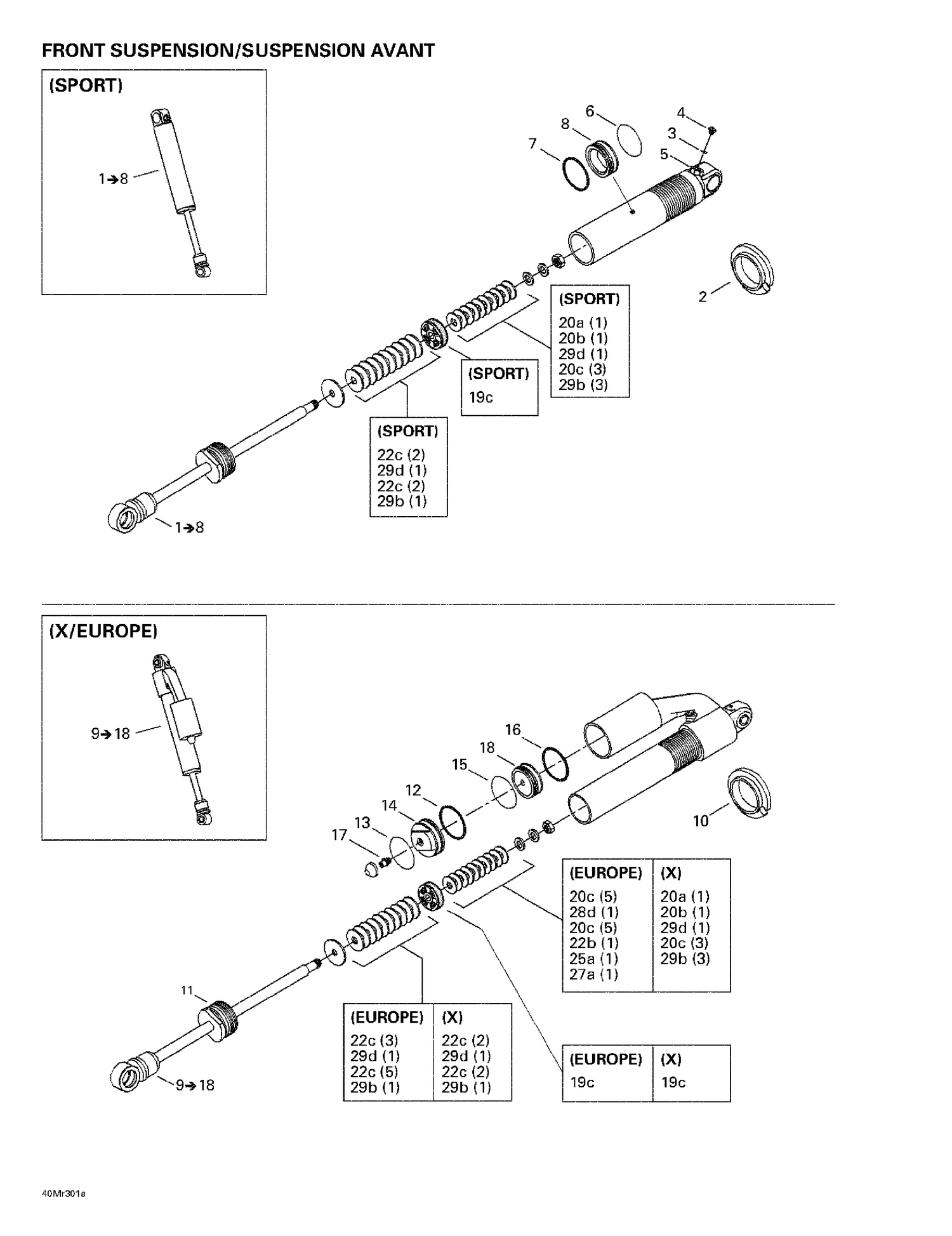

07- Front Take Apart Shocks
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 505071167 | SPRING PLASTIC SEAT - Call your local BRP dealership |
| 3 | 505070400 | O-Ring |
| 4 | 505070399 | Screw |
| 5 | 505070398 | Air Valve |
| 6 | 503189308 | Piston Ring |
| 7 | 414888312 | O-Ring |
| 8 | 503189309 | FREE PISTON - Call your local BRP dealership |
| 10 | 505071167 | SPRING PLASTIC SEAT - Call your local BRP dealership |
| 11 | 415093819 | Sealing Cap |
| 12 | 415093804 | O-Ring |
| 13 | 415093805 | STOP RING - Call your local BRP dealership |
| 14 | 415093808 | Guide |
| 15 | 415093806 | Piston Ring |
| 16 | 415093807 | O-Ring |
| 17 | 414888314 | AIR VALVE - Call your local BRP dealership |
| 18 | 415093812 | FREE PISTON - Call your local BRP dealership |
| 19A | 414888307 | Piston (2 X 0.3-6) (C36) |
| 19B | 414888306 | Piston (2 X 0.3-4) (C36) |
| 19C | 414888305 | Piston (2 X 0.3-2) (C36) |
| 19D | 414888304 | Piston (C36) |
| 20A | 415039100 | Leaf Valve Ø30 X 0.254 (C36) |
| 20B | 414888318 | Leaf Valve Ø30 X 0.203 (C36) |
| 20C | 414888319 | Leaf Valve Ø30 X 0.152 (C36) |
| 21A | 414888320 | Leaf Valve Ø28 X 0.203 (C36) |
| 21B | 414888321 | Leaf Valve Ø28 X 0.152 (C36) |
| 22A | 415039000 | Leaf Valve Ø26 X 0.254 (C36) |
| 22B | 414888322 | Leaf Valve Ø26 X 0.203 (C36) |
| 22C | 414888323 | Leaf Valve Ø26 X 0.152 (C36) |
| 23A | 414888324 | Leaf Valve Ø22 X 0.203 (C36) |
| 23B | 414888325 | Leaf Valve Ø22 X 0.152 (C36) |
| 24A | 414888340 | Leaf Valve Ø21 X 0.114 (C36) |
| 25A | 414888326 | Leaf Valve Ø20 X 0.203 (C36) |
| 25B | 414888327 | Leaf Valve Ø20 X 0.152 (C36) |
| 25C | 414888328 | Leaf Valve Ø20 X 0.114 (C36) |
| 26A | 414888329 | Leaf Valve Ø18 X 0.203 (C36) |
| 26B | 414888330 | Leaf Valve Ø18 X 0.152 (C36) |
| 27A | 414888331 | Leaf Valve Ø16 X 0.254 (C36) |
| 27B | 414888332 | Leaf Valve Ø16 X 0.203 (C36) |
| 27C | 414888333 | Leaf Valve Ø16 X 0.152 (C36) |
| 27D | 415083900 | Leaf Valve Ø16 X 0.114 (C36) |
| 28A | 414888334 | Leaf Valve Ø15 X 0.254 (C36) |
| 28B | 414888335 | Leaf Valve Ø15 X 0.203 (C36) |
| 28C | 414888336 | Leaf Valve Ø15 X 0.152 (C36) |
| 28D | 414888337 | Leaf Valve Ø15 X 0.114 (C36) |
| 29A | 503189538 | Leaf Valve Ø12 X 0.254 (C36) |
| 29B | 414888338 | Leaf Valve Ø12 X 0.203 (C36) |
| 29C | 414888339 | Leaf Valve Ø12 X 0.152 (C36) |
| 29D | 415038800 | Leaf Valve Ø12 X 0.114 (C36) |
