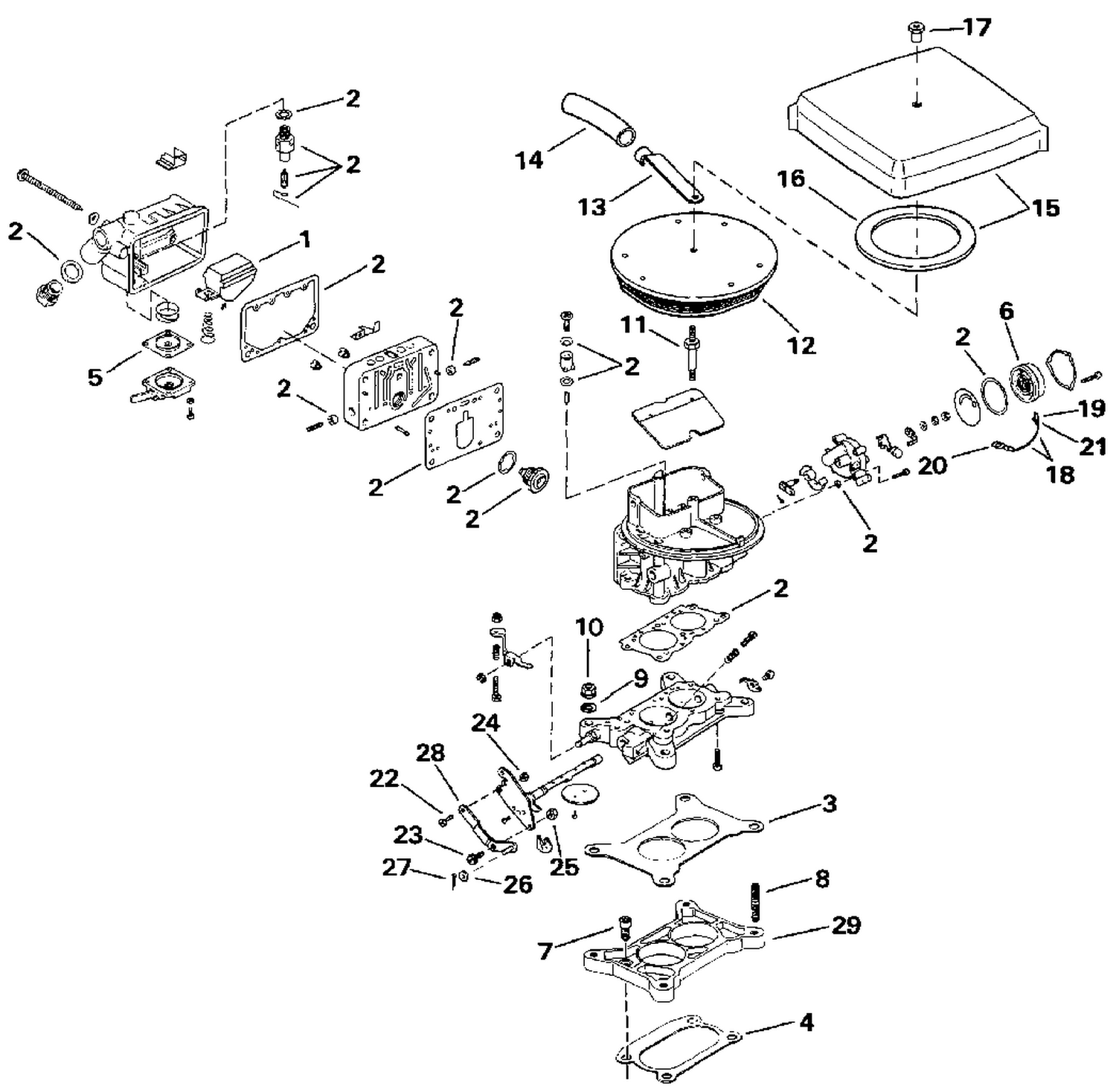

| Ref | Part Number | Description |
|---|
| 1 |
3853575 |
FLOAT This part replaces 0986787. |
| 2 |
3854347 |
REPAIR KIT This part replaces 0986796. |
| 3 |
3853280 |
GASKET, Carburetor to adapter This part replaces 0914583. |
| 4 |
3853279 |
GASKET, Adapter to manifold This part replaces 0914582. |
| 5 |
3854257 |
DIAPHRAGM, Accelerator pump This part replaces 0987277. |
| 6 |
3853992 |
ELECTRIC CHOKE This part replaces 0986579. |
| 7 |
3852864 |
SCREW, Adapter to intake manifold This part replaces 0913848. |
| 8 |
3853373 |
STUD, Carb. to adaptor This part replaces 0914939. |
| 10 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 11 |
3852708 |
STUD, Flame arrestor This part replaces 0913479. |
| 12 |
3854026 |
FLAME ARRESTOR This part replaces 0986865. |
| 13 |
3852695 |
CONNECTOR, Crankcase vent hose This part replaces 0913404. |
| 14 |
HOSE, |
Crankcase vent, 9" (229mm) |
| 15 |
0987224 |
COVER, Flame arrestor |
| 16 |
3850458 |
PAD, Flame arrestor This part replaces 0914769. |
| 17 |
3852749 |
NUT, Cover This part replaces 0913631. |
| 18 |
3853845 |
Lead Ay This part replaces 0985128. |
| 21 |
0914970 |
COVER, Terminal |
| 22 |
0307466 |
SCRES, Bowl to body |
| 23 |
0319292 |
SCREW, Clamp |
| 25 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 28 |
0986517 |
THROTTLE LEVER & PIN ASSEMBLY |
| 0986469 |
3858331 |
Carb Ay This part replaces 0986469. |
