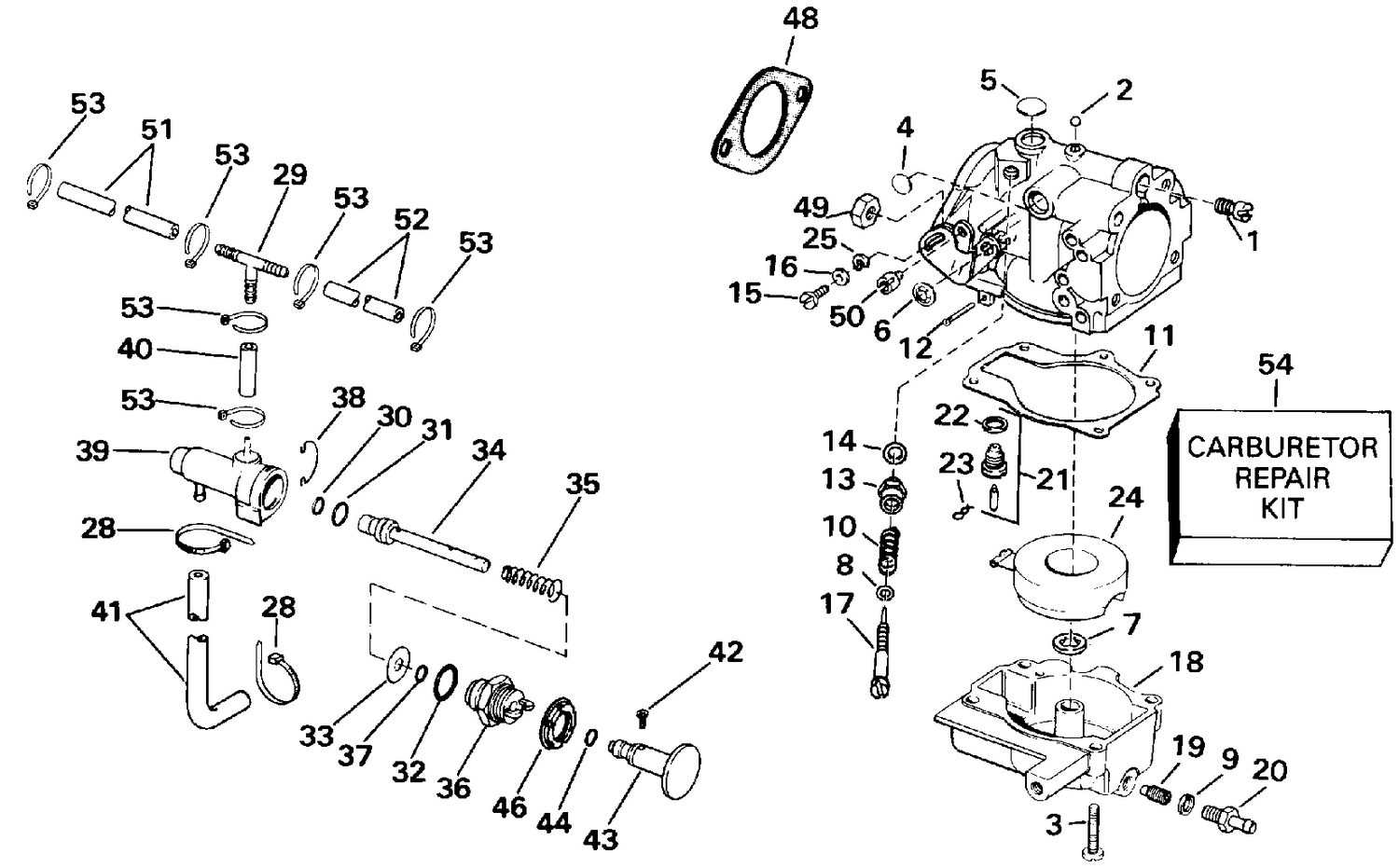

| Ref | Part Number | Description |
|---|
| 1 |
0326928 |
ORIFICE PLUG (#55) |
| 3 |
0329513 |
SCREW, Float bowl |
| 17 |
0335014 |
NEEDLE VALVE, Slow speed |
| 23 |
0336842 |
CLIP, SPRING |
| 28 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 29 |
0325569 |
T, amorçage |
| 40 |
HOSE, |
Primer to tee, 4 in. (102mm) |
| 41 |
HOSE, |
Carb. to primer, 7 1/2 in. (192mm) |
| 42 |
0329054 |
SCREW |
| 43 |
0334365 |
KNOB |
| 44 |
0330992 |
JOINT TORIQUE, bouton |
| 46 |
0335573 |
NUT, Primer pump |
| 48 |
0325092 |
GASKET |
| 49 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 50 |
0313329 |
LOCKWASHER, Carburetor link |
| 51 |
HOSE, |
Tee to carb., 8 in. (200mm) |
| 52 |
HOSE, |
Manifold to tee, 2 1/4 in. (60mm) |
| 0432142 |
5007336 |
Kit Ay This part replaces 0432142. |
| 0434623 |
0439378 |
CARBURETOR ASSY. This part replaces 0434623. |
