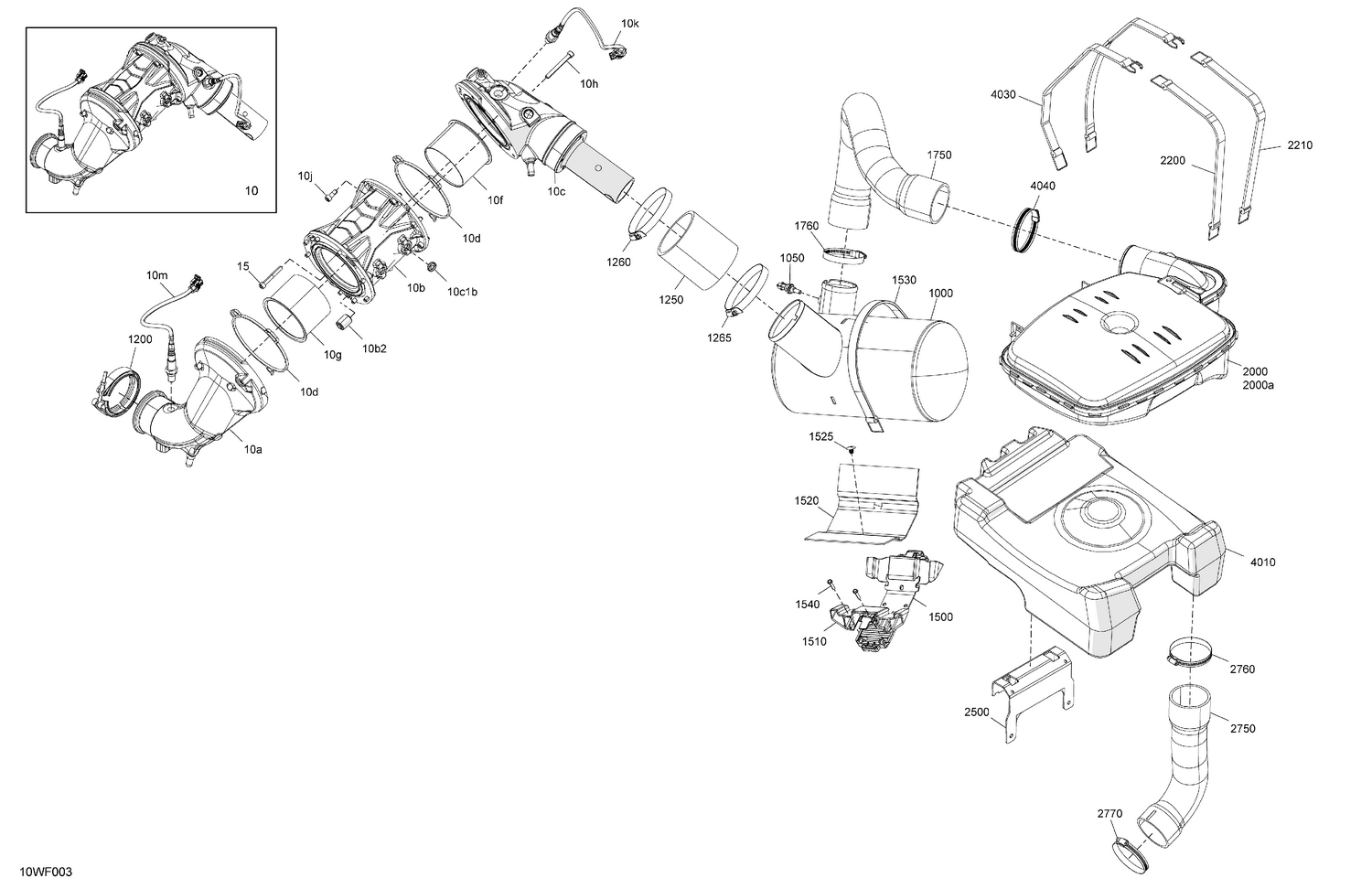

02- ENGINE - Exhaust
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 274001762 | Exhaust Manifold Elbow Inlet |
| 10b2 | 293830145 | Rubber Mount |
| 10c1b | 420427573 | Plug |
| 10d | 293300147 | O-Ring |
| 10f | 423462932 | Catalyst |
| 10g | 423462932 | Catalyst |
| 10h | 205586560 | Socket Screw M8 X 65, Scotch Grip |
| 10j | 205582060 | Socket Head Screw M8 X 20, Scotch Grip |
| 10k | 707600872 | Oxygen Sensor |
| 10m | 707600872 | Oxygen Sensor |
| 15 | 205085560 | Socket Head Screw M8 X 55 |
| 1000 | 274001748 | Exhaust Muffler |
| 1050 | 514054856 | Temperature Sensor |
| 1200 | 274001417 | Exhaust Clamp |
| 1250 | 274001724 | Hose |
| 1260 | 293650202 | Gear Clamp This part replaces 293650281. |
| 1265 | 293650202 | Gear Clamp This part replaces 293650281. |
| 1500 | 293450390 | Muffler Support |
| 1510 | 274001721 | Stopper |
| 1520 | 293830253 | Cut Insulating Pad |
| 1525 | 293730113 | Christmas Tree Anchorage |
| 1530 | 293850163 | Retaining Strap |
| 1540 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 1750 | 274001734 | Formed Exhaust Hose |
| 1760 | 293650244 | Tridon Gear Clamp |
| 2000a | 274001751 | Resonator |
| 2200 | 293850093 | Fuel Tank Strap |
| 2210 | 293850093 | Fuel Tank Strap |
| 2500 | 292002931 | Retaining Plate |
| 2750 | 274001735 | Formed Exhaust Hose |
| 2760 | 293650244 | Tridon Gear Clamp |
| 2770 | 293650244 | Tridon Gear Clamp |
| 4010 | 274001746 | Foam Support |
| 4030 | 293850101 | Fuel Tank Strap |
