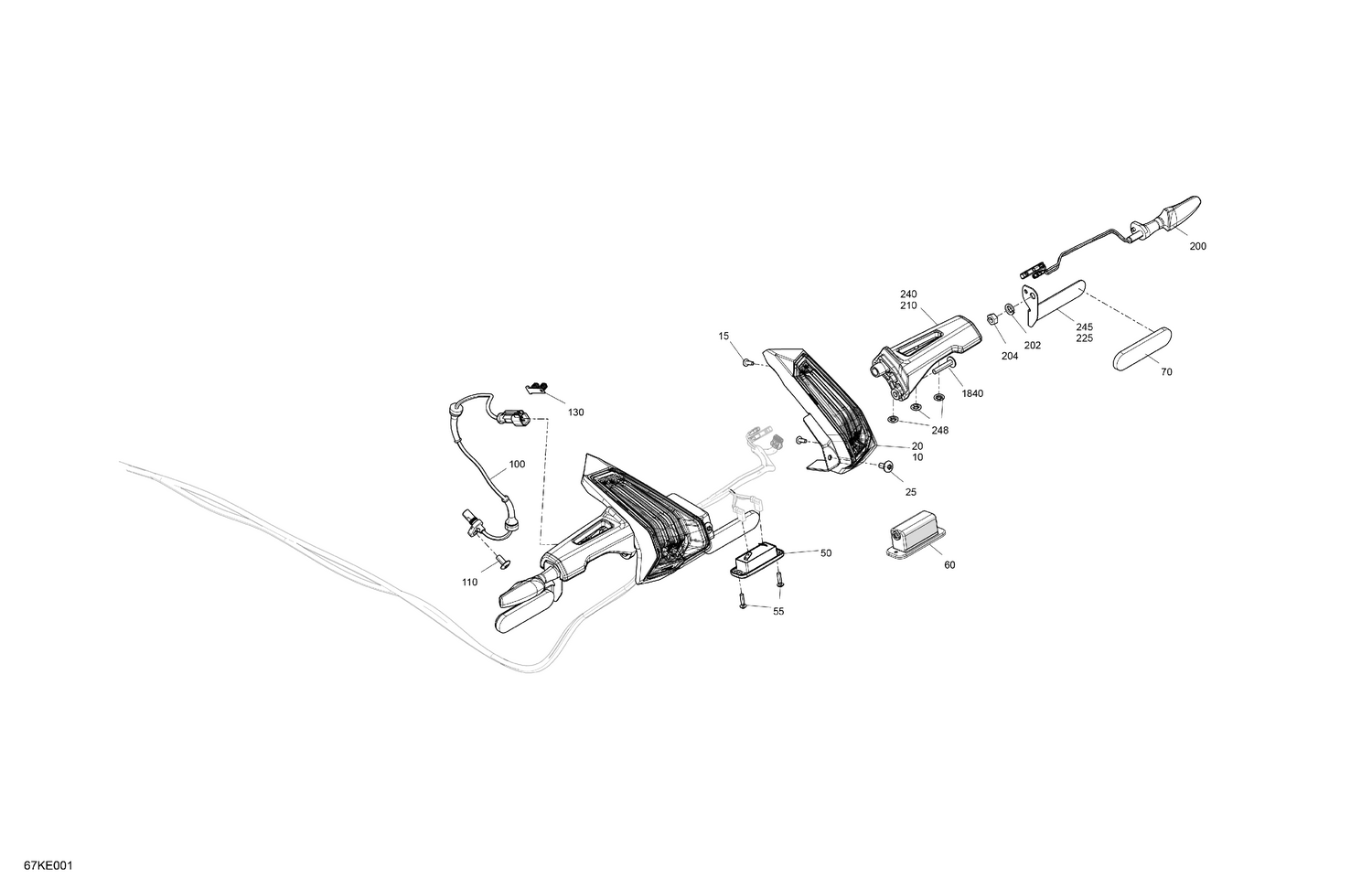

08- Electric - Taillights
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710010213 | LH Rear Tail Light |
| 15 | 250001131 | Torx Truss PT K40 x 12 |
| 20 | 710010214 | RH Rear Tail Light |
| 25 | 250000789 | Torx Truss M6X14 |
| 50 | 710005501 | License Light |
| 55 | 250000287 | Flange Torx Screw K40 X 16 |
| 60 | 710008469 | Rear Connector Guard |
| 70 | 705015551 | Red, Reflector |
| 100 | 710007283 | Speed Sensor |
| 110 | 250000789 | Torx Truss M6X14 |
| 130 | 278002910 | Clip (double dart) |
| 200 | 710008471 | Amber, Turn Signal Light |
| 202 | 710006520 | Slotted Washer |
| 204 | 710006521 | Slotted Nut |
| 210 | 710006132 | LH Rear Turn Signal Support |
| 225 | 710009514 | LH Reflector Support |
| 240 | 710006133 | RH Rear Turn Signal Support |
| 245 | 710009515 | RH Reflector Support |
| 248 | 732610072 | Push Nut |
